Kienzle 51/0b

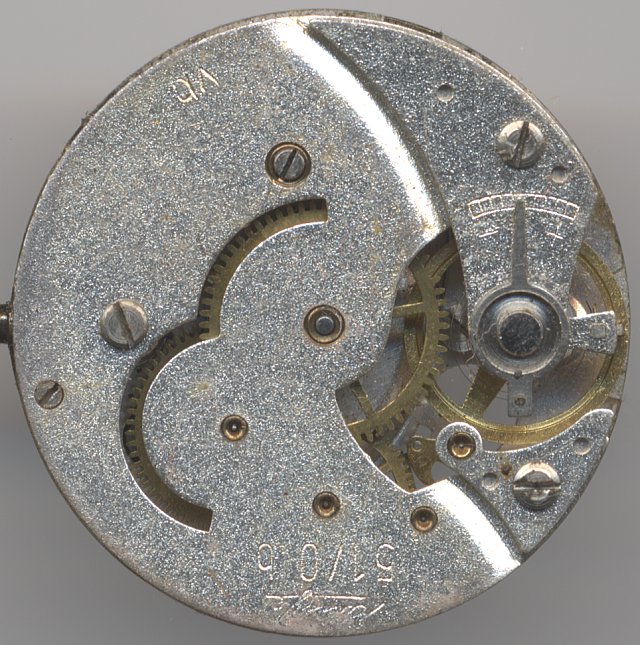

Description

That Kienzle movement seems to be pretty old. It still carries the old Kienzle sign and on the dial, that was attached to it, its origin country was named “foreign”, which refers to the 40ies or 50ies.

The movement is as most other Kienzle movements a simple pin lever movement with no jewels, no shock protection and rocker winding mechanism. As always, the mainspring barrel can be exchanged easily.

On the pro side, there are details like a long hairspring regulator or brass bearings. They are responsible for the movement still running fine after half a century.

Kienzle 51/0b: Kienzle 51/0b dial side

Kienzle 51/0b dial side

Technical data

Manufacturer:Kienzle
Caliber:51/0b
Size:12'''
A/h:18000
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:3 hole(s)
Features:
  • s (decentral seconds)
References: Flume: 1958 r.90

Usage gallery

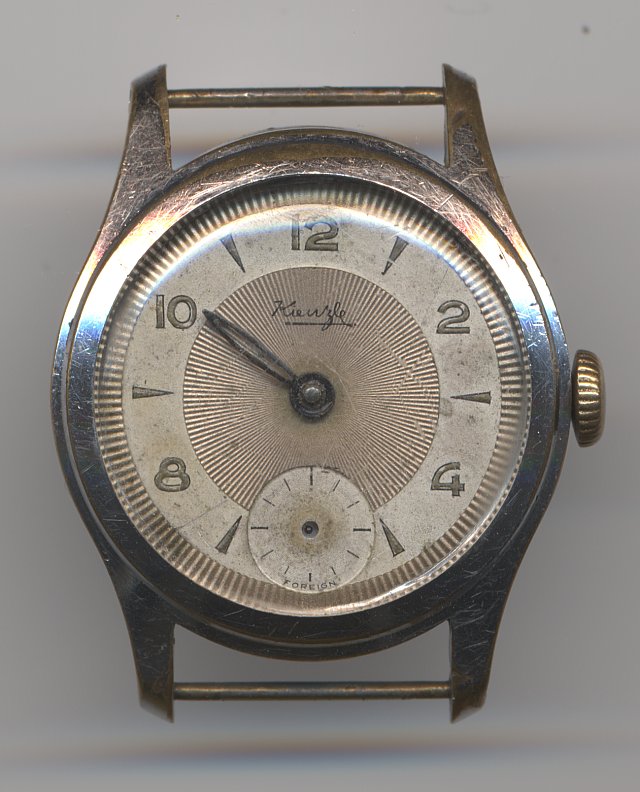

Kienzle 51/0b: Kienzle gents watch

Kienzle gents watch
