Kienzle 51


Kienzle 51 |

Kienzle 51

Description

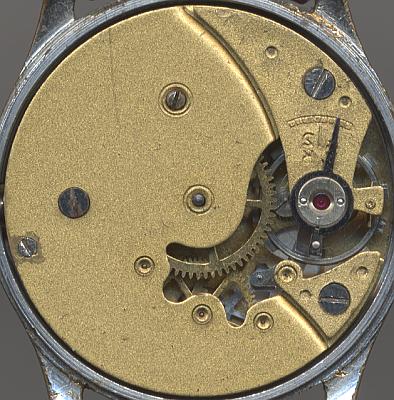

Here, we have a very old Kienzle pin lever movement, which is not marked on the plates, but could be identified with the Flume Werksucher of 1947. There, the Kienzle 51 is measured with 12 lignes.

It has got a balance with pivot staff, which runs in four jewels and has got “virtual” screws. The balance drives a pin lever movement, which displays seconds (at “6”), hours and minutes.

Technical data

Manufacturer:Kienzle
Caliber:51
Size:11 1/2'''
A/h:18000
lift angle:57°
Number of jewels:4
Escapement:Pin lever
Balance types:Nickel screw balance
Shock protection(s):none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Features:
  • s (decentral seconds)
References:Flume: 1947 -
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.
