Langendorf 1054

Description

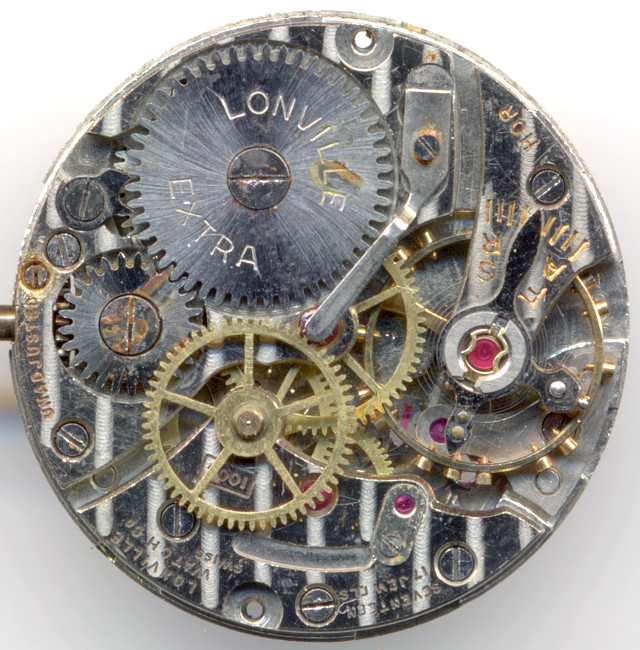

The Langendorf 1054 was, probably for export into the USA, rebranded as “Lonville 1004”, which made its identification a bit difficult.

It is visually very appealing with its beautiful stripes decoration, then golden-toned Glucydur screw balance and the waisted long regulator arm.

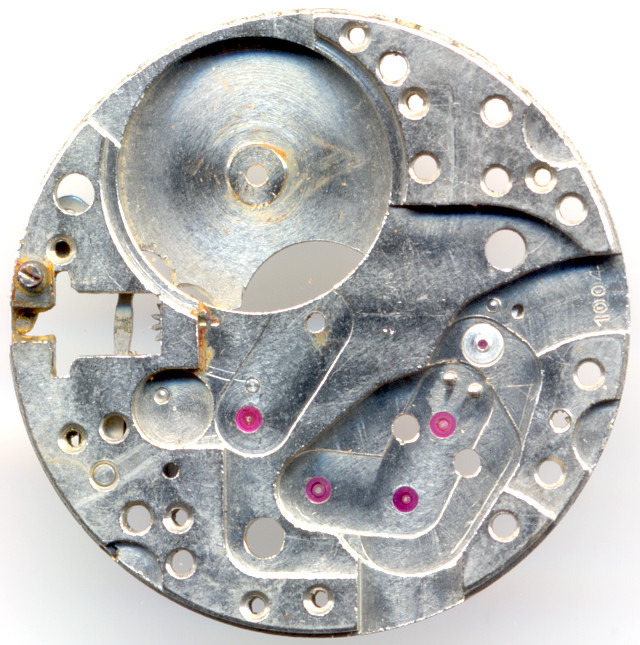

base plate

base plate

The base plate of this 17 jewels movement shows the typical signs of a mid century production. All fast revolving bearings are ruby-equipped and at 6 o’clock, there’s the second wheel, which can carry (but not on this movement) a decentral second hand on the dial side.

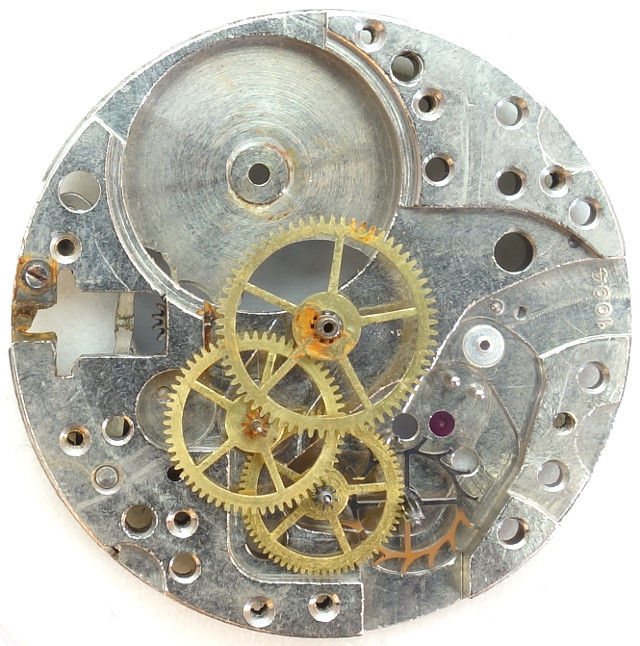

gear train

gear train

The gear train is also very typical for that time with its directly driven center minute wheel, third wheel, second wheel and steel escape wheel.

The pinion of the third wheel is prolonged on the movement side and carries the driving wheel for the center seconds wheel.

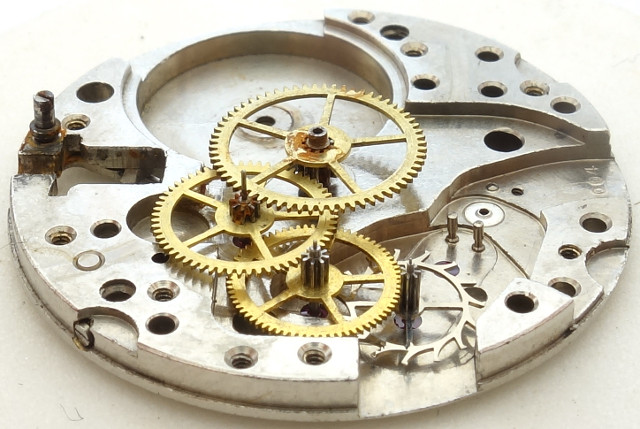

side view of the gear train

side view of the gear train

The golden toned Glucydur screw balance with its very small waisted arms is already beared in two Incabloc shock protection bearings. With 18000 A/h it beats contemporarily slow and can be adjusted with a long regulator arm.

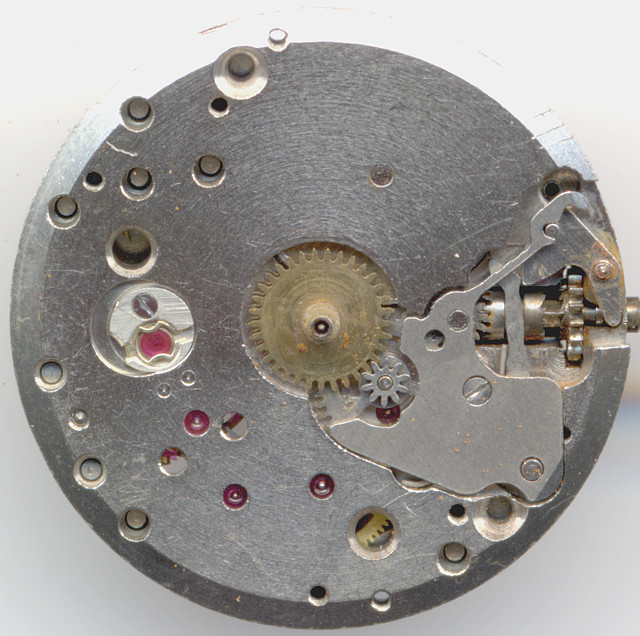

Langendorf 1054: Dial side

Langendorf 1054: Dial side

On the dial side, you can see, that this movement could also have carried a decentral second hand at 6 o’clock, but the Langendorf 1054 already had a top modern center second indication.

Of course, like all quality movements, it also has got a yoke winding system.

Technical data

Manufacturer:Langendorf
Caliber:1054
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur screw balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
Features:SCI
Functions:hour, minute, second
A/h:18000
Size:10 1/2''' (measured: 22,9mm)
Literature: Flume: 1949 II 67
Inventory number:18027

Usage gallery

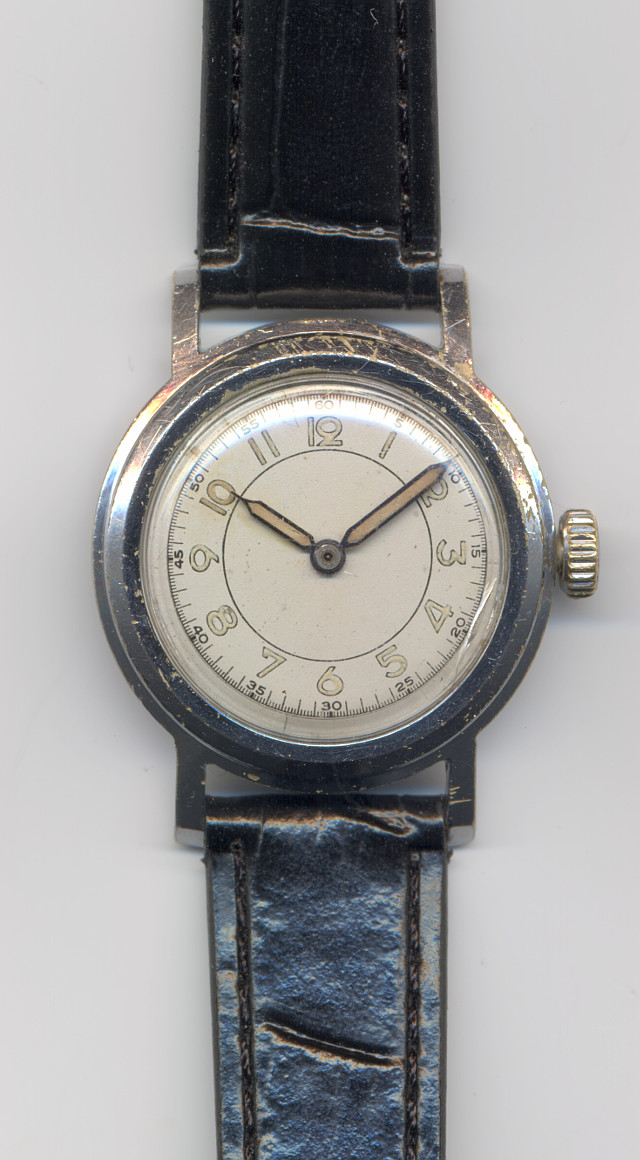

anonymous gents watch

anonymous gents watch
