Langendorf 6630
Description
The caliber 6630 is according to the Flume Werksucher the final 6 3/4 ligne movement, which was relased from Langendorf (Lanco) about the end of the 1960ies. Unlike the form movements, which were state of the art at that time, this movement is a round shaped one, but doesn’t use all the space, it offers.
It’s based as you can easily see, on the Langendorf 600.
Technical data
| Manufacturer: | Langendorf |
| Caliber: | 6630 |
| Size: | 6 3/4''' |
| A/h: | 21600 |
| Number of jewels: | 17 |
| Escapement: | Pallet lever |
| Balance types: | Nickel anular balance |
| Shock protection(s): | Incabloc |
| Balance bearing / direction hairspring: | Counterclockwise |
| Moveable stud: | yes |
| Adjust mechanism: | Hairspring key |
| Construction: |
|
| References: | Flume: K3 - |
Usage gallery

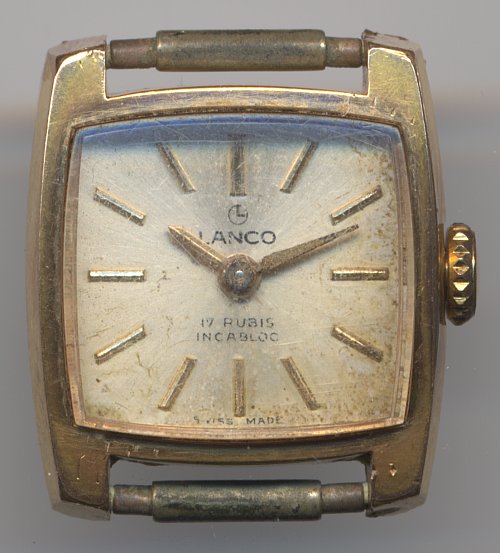

Lanco ladies' watch
Links
* [Ranfft Uhren: Langendorf 600](http://www.ranfft.de/cgi-bin/bidfun-db.cgi?10&ranfft&&2uswk&Langendorf_600&)
This movement was donated by [Klaus Brunnemer](index.php?option=com_content&view=article&id=62:donated-movements-of-klaus-brunnemer&catid=10&lang=en-GB&Itemid=201). Thank you very much!
