Langendorf 824


The Langendorf Caliber 824 is a very nice and very well made ladies' watch movement, in construction, as well as optical with its nickel siver plates.

It has got a rather small screw balance, which runs in an Incabloc shock protection, and whose hairspring is regulated by a very nicely shaped regulator arm.
The anchor wheel is, unusual for movements of that age, beared in a chator with a shock protection. And unusual, too, is the direct driven center second.

Langendorf 824: Langendorf 824 dial side

Langendorf 824 dial side

Technical data

Size:8 3/4'''
lift angle:53.66°
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
  • lever
  • escape wheel, seconds wheel
  • third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
  • SCD (direct center seconds)
References: Flume: K2 -

Usage gallery

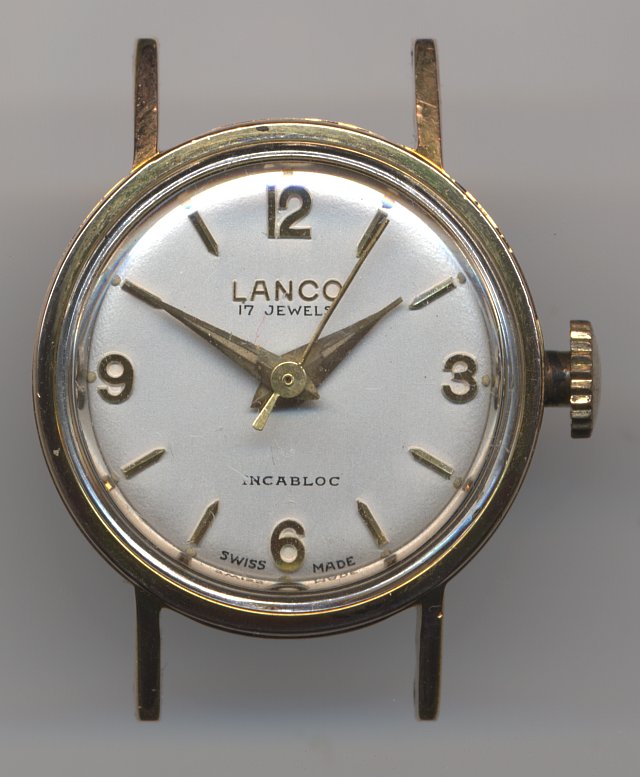

Langendorf 824: Lanco ladies' watch

Lanco ladies' watch
