MST 2

Description

MST (Meyer und Stüdeli, later known under their brand name “Roamer”) is a swiss manufacturer, which started with cylinder movements, before they got known for their good quality pallet lever movements.

The MST 2 is a simple cylinder movement, probably made at the beginning of the last century, and it could not be identified with 100% certaincy, since it is not properly marked, but the hallhmarks “M” and “2” and the shape of the gear train bridge are a strong sign, that it is an MST caliber 2.

MST 2: base plate

base plate

Ad you can see on the bast plate, the mostly jewel-free caliber (except the upper balance wheel bearing) is of rather simple quality.

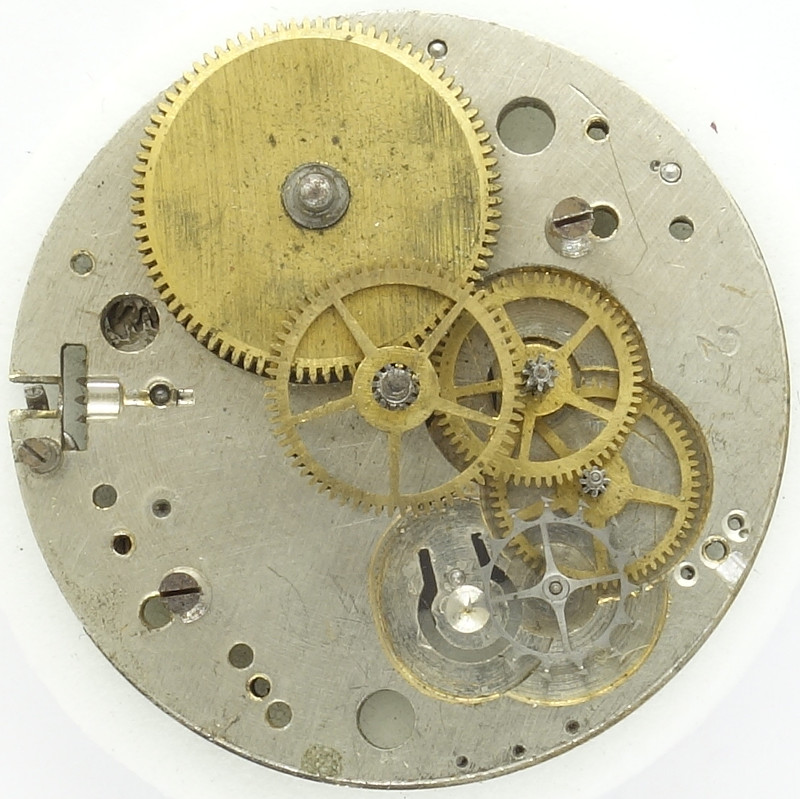

MST 2: gear train

gear train

The gear train is the standard of simple cylinder movements: The mainspring barrel directly drives the center minute wheel, followed by third and forth wheel (no possibility for showing indirect seconds) and finally the individually beared cylinder wheel.

MST 2: side view of the gear train

side view of the gear train

The bearing cock for the cylinder wheel is grinded down, but it is not known, if this was already originally the case, or if it had to lose some height, so that the balance wheel after a change of the cylinder, does not grind on the cock.

What is certain, however, is, that the three leg cylinder anular balance is not shock protected, but their beating rate (probably 18000 A/h) can be adjusted with the help of a long regulator arm.

MST 2: MST 2: Dial side

MST 2: Dial side

On the dial side you see the pretty modern rocking bar winding system and the ratchet, which consists of a well executed click spring.

At the 7 o’clock postition, there’s the balance wheel bearing, which consists of a simple meal bushing, which is covered with a metal plate. You can imagine, that this construction does not allow very good precision results.

Technical data

Manufacturer:MST
Caliber:2
Size:11 1/2''' (measured: 26,5mm)
A/h:18000
Number of jewels:1
Escapement:Cylinder
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • cylinder wheel
  • seconds wheel, third wheel, center minute wheel, mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:1 hole(s)
Inventory number:20013

Usage gallery

MST 2: anonymous ladies' watch

anonymous ladies' watch

This watch and movement is a kind donation from Mario. Thank you very much for your great support of the movement archive.
