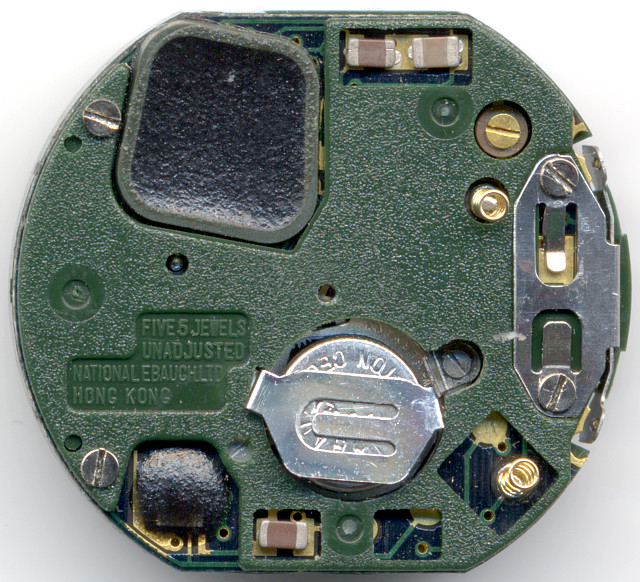

Generally, quartz movement are not parts of the movement archive, except, they represent something special. Such a movement is unmarked hybrid movement from the Hong Kong National Ebauch Ltd shown here. It’s speciality is the very elegant integrated digital display and the fact, that a german PUW 900 is integrated here.

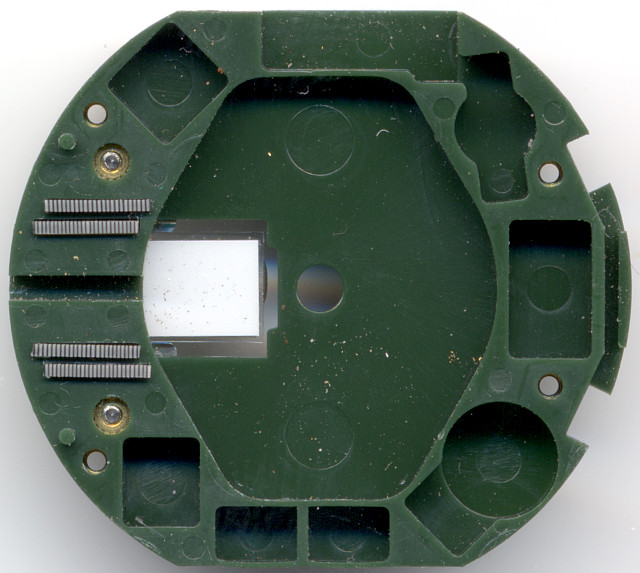

National Ebauch Cal.?: base plate with display connectors

base plate with display connectors

The plastic base plate is typical for mass produced quartz movements. Only the tiny display at 3 o’clock with its two pairs of connectors are notable.

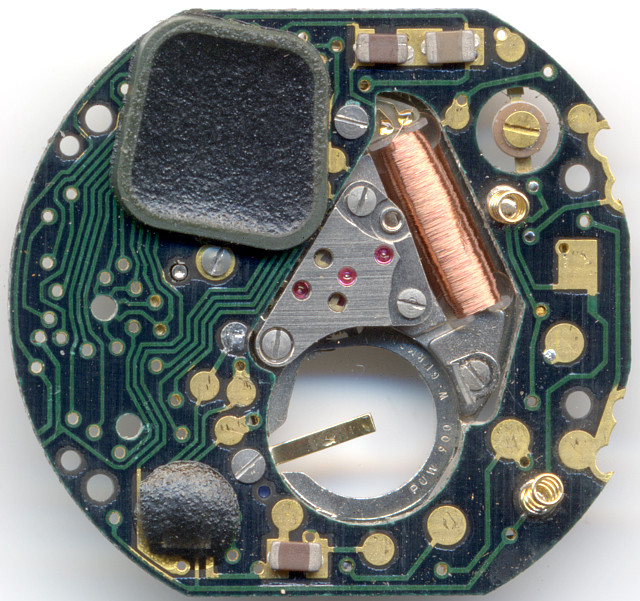

National Ebauch Cal.?: electronics with integrated PUW 900

electronics with integrated PUW 900

The analog part of this movement offers a real surprise, since here the mechanics of the german PUW 900 were used and it seems, that its electronics were not used, but the stepper coil is driven by the large far-east electronics module.

Many functions are offered: Besides the three analog hands for time display, the digital window at 3 o’clock offers the whole range of functions, a digital quarz watch can offer: Second time zone, calendar, alarm and stop watch. The latter has only got a resolution of one second.

The display is aesthetically perfectly integrated into the dial as a larger window at 3 o’clock. This is better than any other hybrid movement!

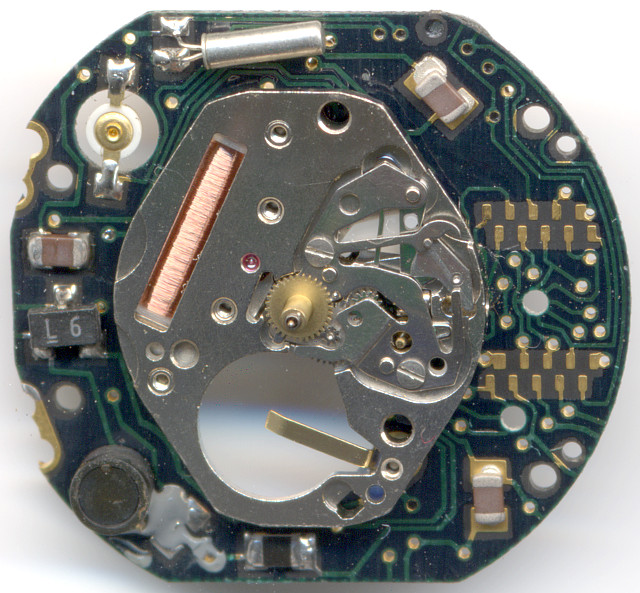

National Ebauch Cal.?: open dial side

open dial side

On the open dial side, you can spot the connectors for the LC display and the coil at 7 o’clock, which drives the piezo loudspeaker in the case back.

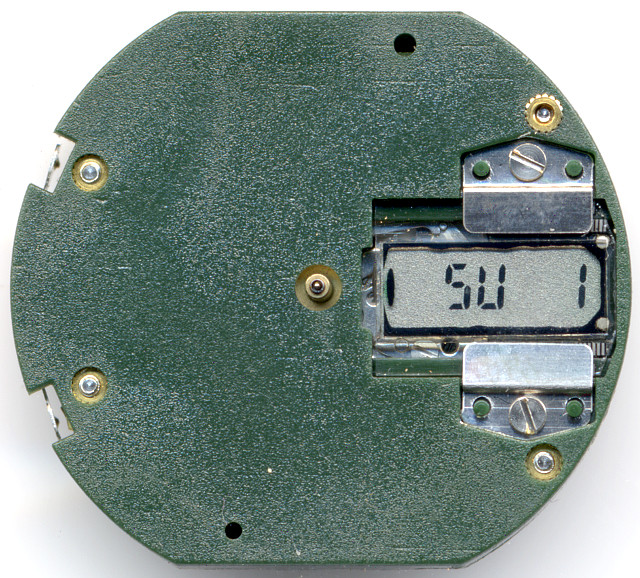

National Ebauch Cal.?: dial side

dial side

The closed dial side is not noteworthy at all. Any cheap quarz movement looks more or less the same.

Nevertheless, the movement shown here is a collectors item, since it is the most elegant execution of a hybrid analog-digital movement, and far east electronics meet german mechanics.

Technical data

Manufacturer:National Ebauch
Caliber:?
Size:12 x 10 1/2''' (measured: 27,0 x 24,0mm)
Frequency:32768 Hz
Number of jewels:5
Escapement:Quartz
Adjust mechanism:Variable capacitor
Features:
  • SCD (direct center seconds)
  • CLD (calendar)
  • CHR (chronographe)
  • REV (alarm function)
References: Flume: (K4 113)
Inventory number:18019

Usage gallery

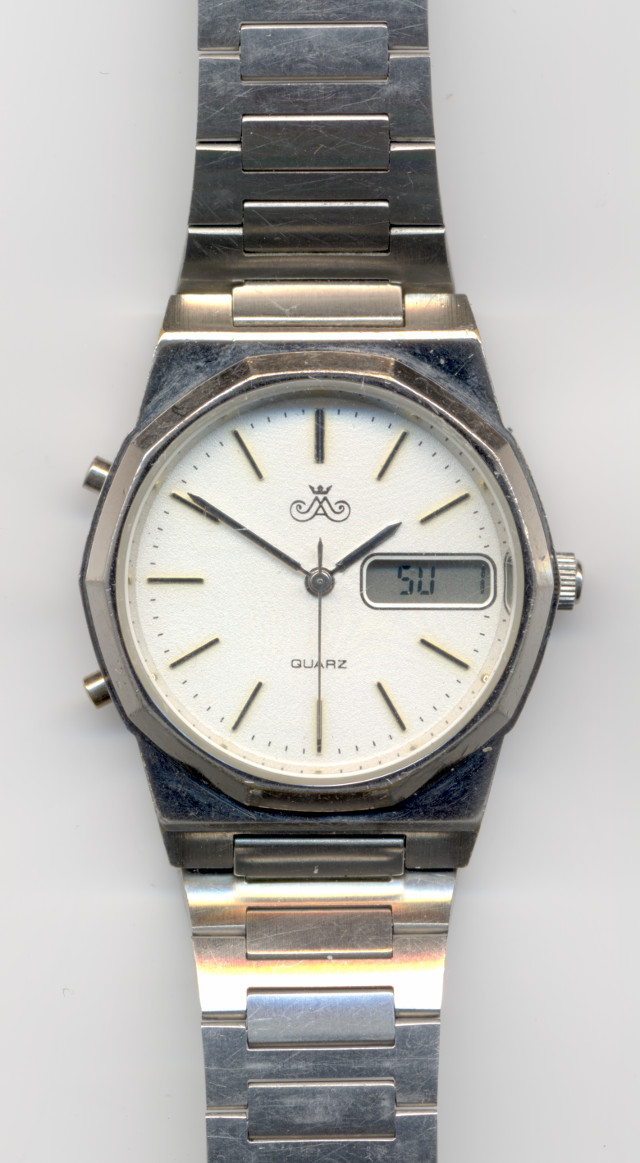

National Ebauch Cal.?: Meister-Anker Quartz, model 837.400

Meister-Anker Quartz, model 837.400

This movement is a kind donation from Katja. Thank you very much for your support!
