Orient 46943


This movement was made in at least two completely different variants with the same caliber number.

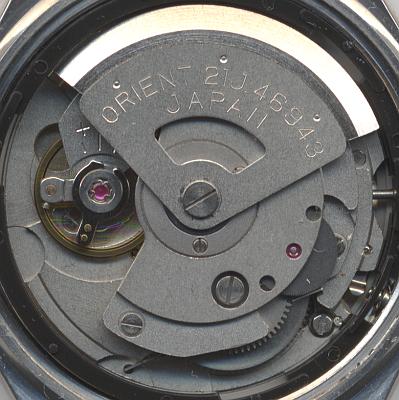

The version described here is a twin (except the size) of the Seiko 4206 with quarter-sector rotor, excenter changer as selfwinding mechanism and the lack of a manual winding capability. Another interesting fact is, that the date is corrected with the crown, but the seldom wrong weekday can very easily be corrected by a button at “2”.

The probably more recent version of the 46943, which is decribed in the german Chronos 1/1997 watch magazine, reminds pretty much of the Citizen/Miyota 8203.

Technical data

Number of jewels:21
Escapement:Pallet lever
Shock protection(s): Diashock (Seiko)
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
  • SC? (center seconds (type unknown))
  • QG (date indication (aperture))
  • JG (weekday indication (aperture))
  • RDR (date corrector)
  • AUT (selfwinding)

Usage gallery

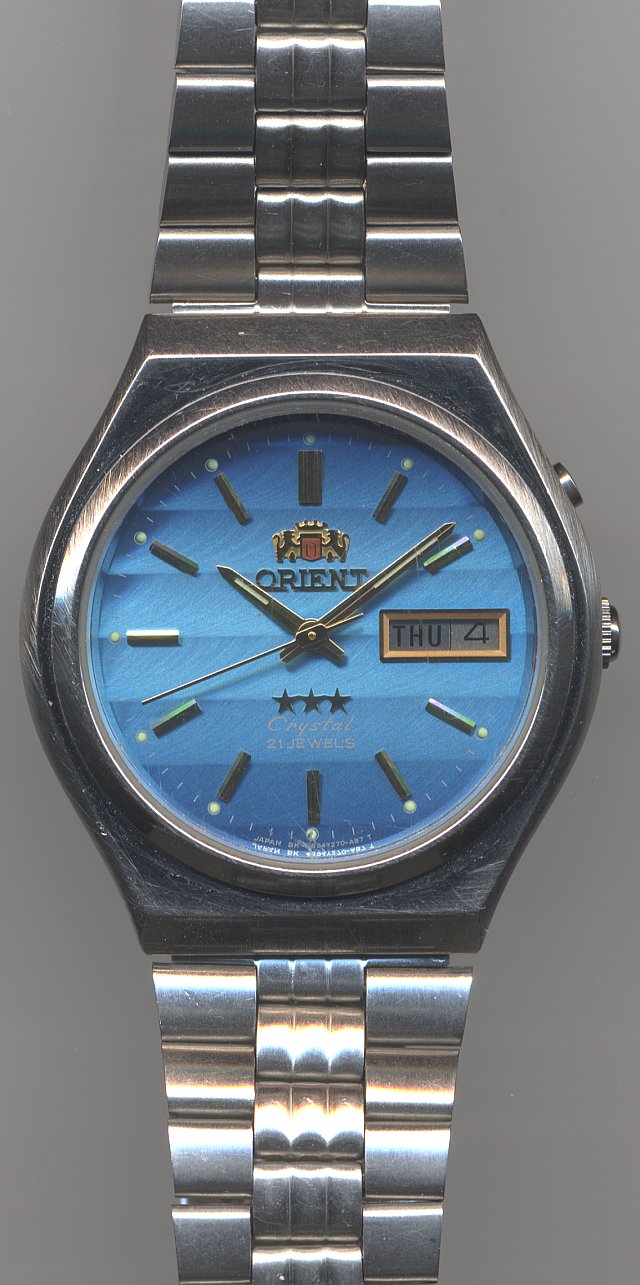

Orient 46943: Orient Cystal Automatic gents watch

Orient Cystal Automatic gents watch
