Osco 1060
Description

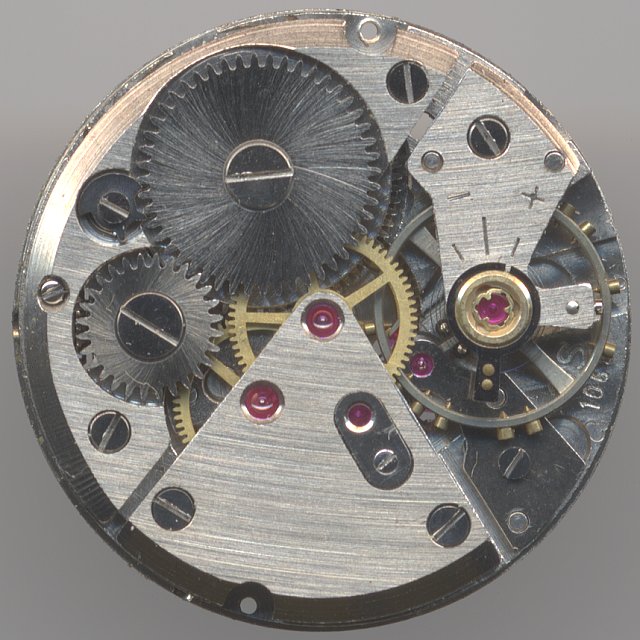

The 10 1/2 ligne Osco Caliber 1060 is a very classical constructed handwinding movement. The screw balance with its two extremely thin legs is secured in two KIF Trior shock protecting systems, and should allow good precision results, which can be verified with the directly driven center second hand. Furthermore, the anchor wheel runs within two bearings with cap jewels. This might also improve the precision and longevity.
The good impression of the movement side continues on the dial side: The Osco 1060 does not use a rocking bar winding mechanism, as most other german movements do, but uses a real yoke winding mechanism. Additional to that, there’s a true speciality on this movement: The changing wheel is closed on the top side. This is rather unique, but if has got any advantages - I don’t know…

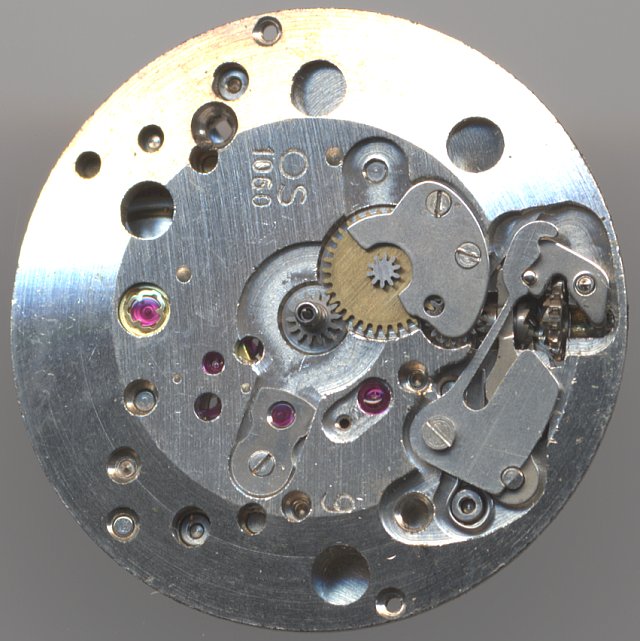

Osco 1060 dial side
Technical data
| Manufacturer: | Osco |
| Caliber: | 1060 |
| Size: | 10 1/2''' |
| A/h: | 18000 |
| Number of jewels: | 17 |
| Escapement: | Pallet lever |
| Balance types: |
Glucydur screw balance |
| Shock protection(s): |
KIF Trior |
| Balance bearing / direction hairspring: | Clockwise |
| Moveable stud: | no |
| Adjust mechanism: | Hairspring key |
| Construction: |
|
| Winding mechanism: | yoke winding system |
| Setting lever spring: | 1 hole(s) |
| Features: |
|
| References: |
Flume: 1962 7 |
Usage gallery

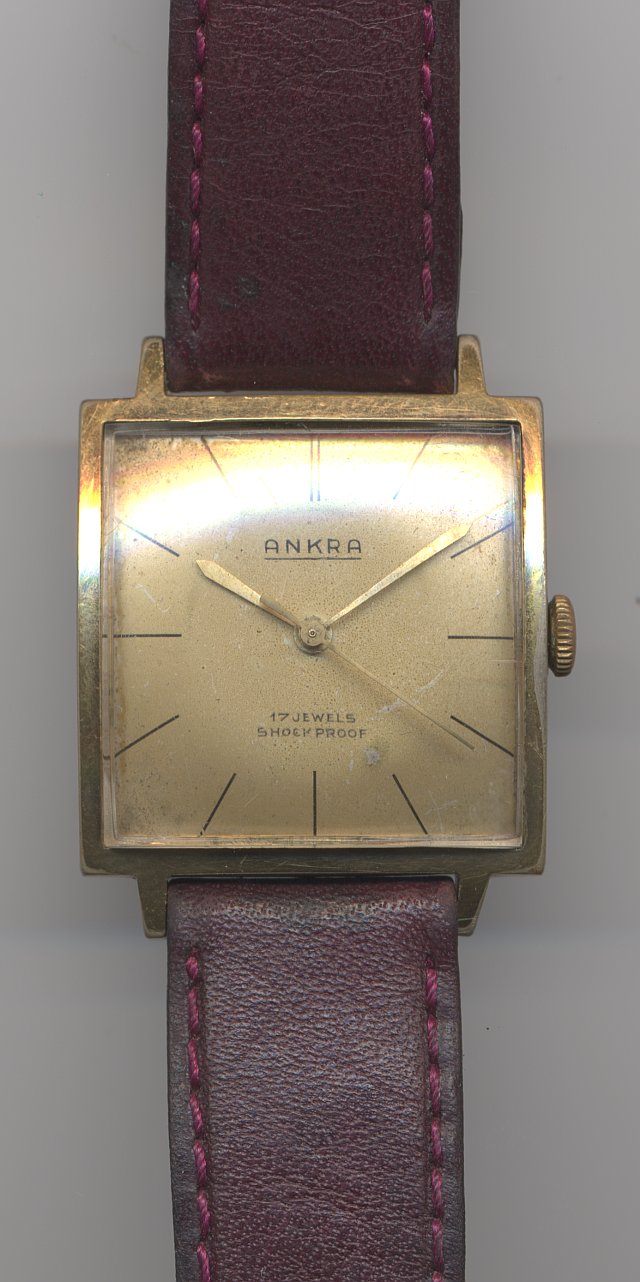

Ankra gents watch
