Description

A hard to find movement is the Peseux 61, a ladies’ watch manual wind movement with a diameter of 8 34 lignes.

The construction of this movement is contemporary, with decentral second a 6 o’clock and a directly driven minute wheel.

The screw balance beats with 18000 A/h and is beared in the old Incabloc shock protection, which was developed 1928 and whose usage can be recognized by the printing “Incassable” on the dial. Only a few years later, it was superseded by the modern Incabloc type, which is still produced until today.

Unfortunately, the specimen shown here is massively water harmed, so the gear train cannot be shown.

Peseux 61 dial side

Peseux 61 dial side

On the dial side, you see besides the yoke winding system also fragments of the dial side part of the old Incabloc shock protection, its cap jewel and the arc shaped spring, which fixes it with two arms.

Technical data

Manufacturer:Peseux
Caliber:61
Number of jewels:15
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): Incabloc (old)
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Functions:hour, minute, decentral second
A/h:18000
Size:8 3/4'''
Inventory number:15022

Usage gallery

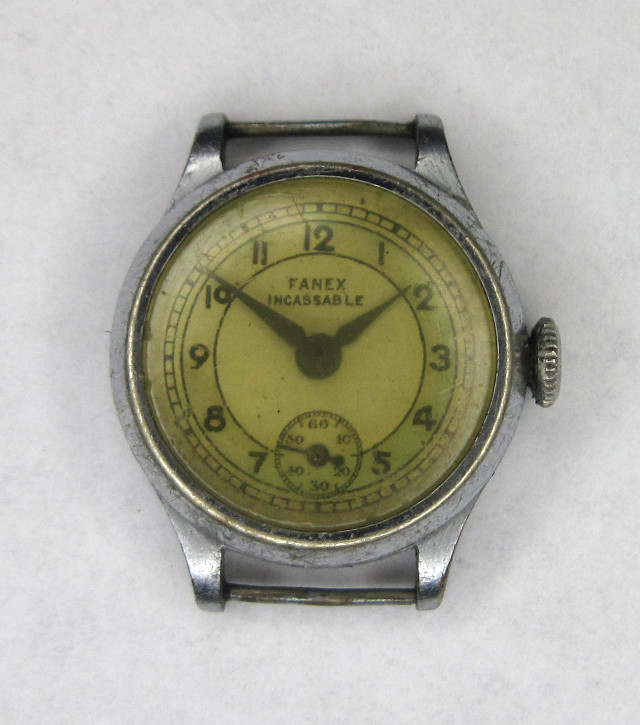

Fanex Incassable ladies' watch

Fanex Incassable ladies' watch

This movement and watch is a kind donation of Erwin. Thank you very much!
