Poljot 2614.2H


Poljot 2614.2H | 17jewels.info - The Movement Archive

Poljot 2614.2H

Description

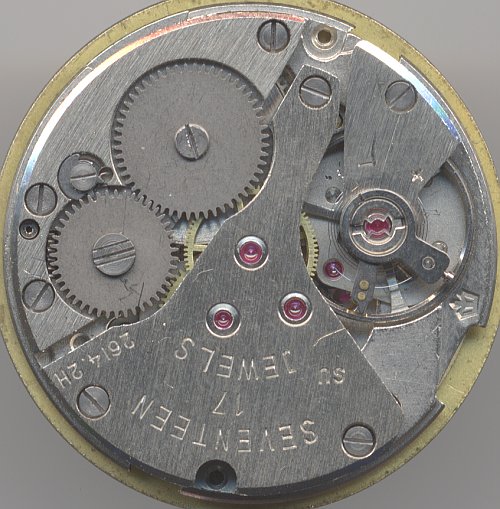

This movement is the second refactoring (therefor the suffix “.2H”) of the handwound Poljot movement with data and a diameter of 26mm. It has got a direct driven center second hand, a Glucydur balance and a Poljot shock protection system.

A pretty funny fact is, that the watch displayed below carries a “Made in Germany” on the dial…

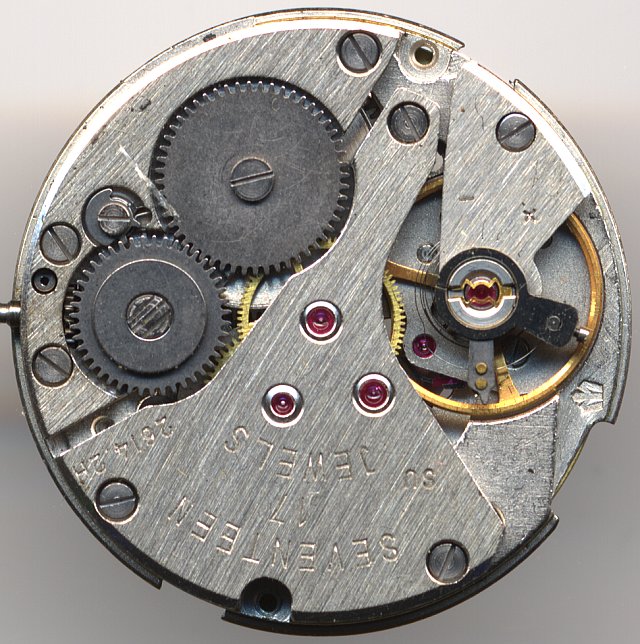

Poljot 2614.2H: other version with detail differences

other version with detail differences

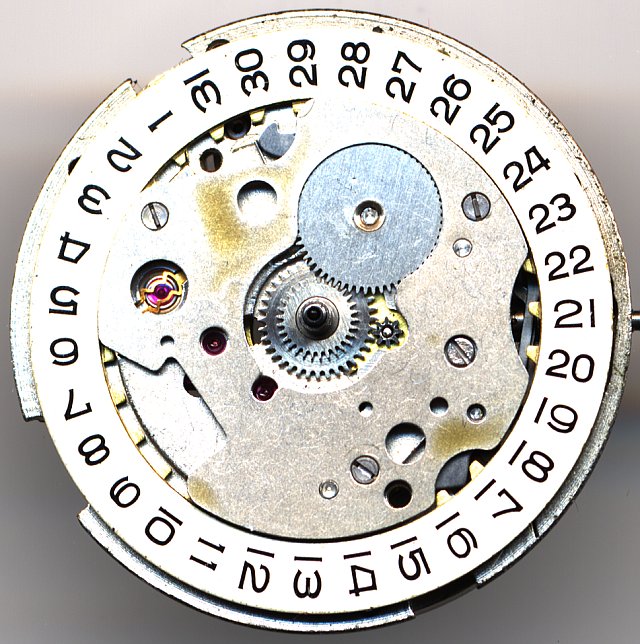

Poljot 2614.2H: Poljot 2614.2H dial side

Poljot 2614.2H dial side

Technical data

Manufacturer:Poljot
Caliber:2614.2H
Caliber base:Poljot 2609.H
Size:11 1/2'''
A/h:21600
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): Poljot
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
Winding mechanism:yoke winding system
Features:
  • SCD (direct center seconds)
  • QG (date indication (aperture))
Mentioning in literature (years): 1983

Usage gallery

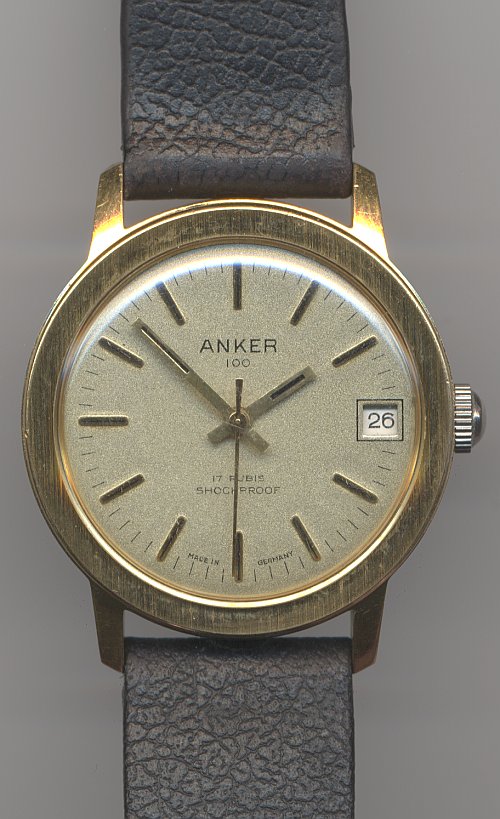

Poljot 2614.2H: Anker 100 gents watch

Anker 100 gents watch

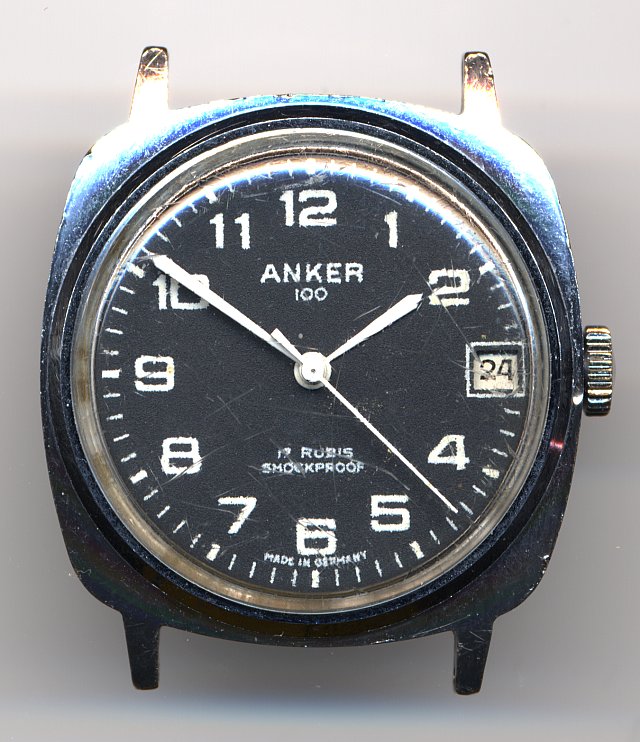

Poljot 2614.2H: Anker 100 gents watch

Anker 100 gents watch

Caliber Family
Poljot 2609.H
