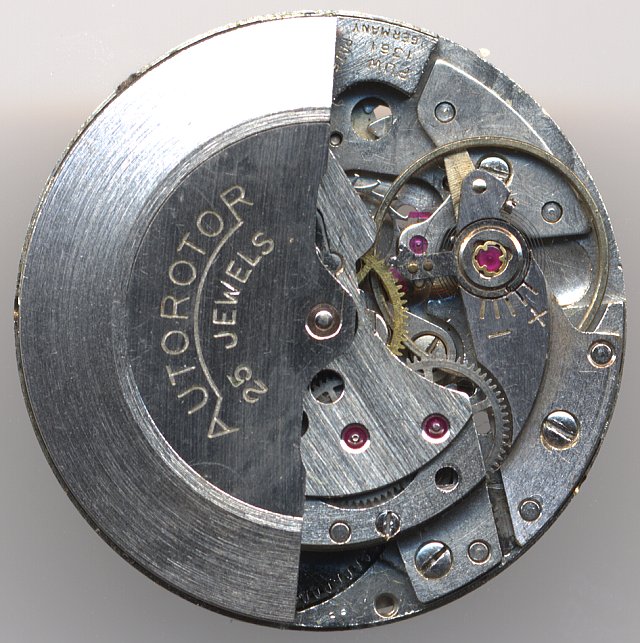

PUW 1361


PUW 1361

PUW 1361

Description

The PUW caliber 1361, a 25 jewel mens’ size bidirectional selfwindig movement differs from its predecessor, the PUW 1261 only in a few details, mainly on the dial side.

It’s not sure, that on the specimen shown here, the balance and balance cock are original, since there’s no moveable hairspring stud, only a two-leg balance and there are two different types of shock protection systems used: KIF Trior on the cock and KIF Satellor on the plate. So, maybe, the balance and the balance cock are replacement parts, which originate from the 1260ies series.

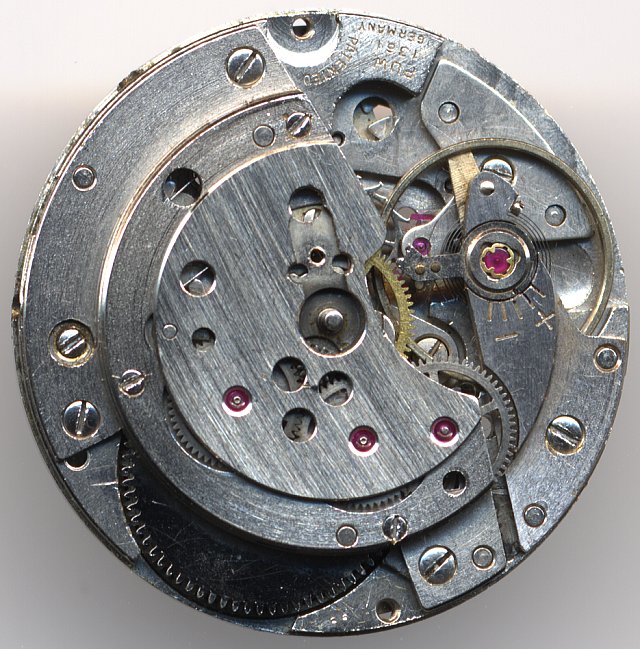

view without oscillating weight

view without oscillating weight

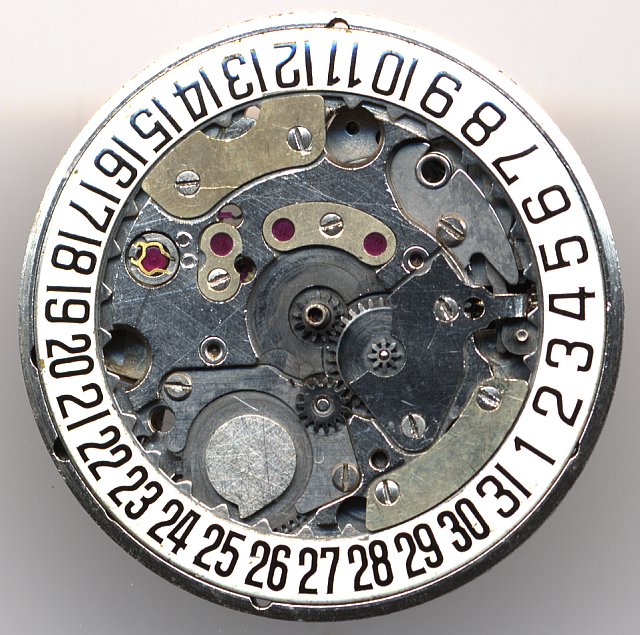

PUW 1361 dial side

PUW 1361 dial side

Technical data

Manufacturer:PUW
Caliber:1361
Number of jewels:25
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): KIF Trior
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Features:SCD,QG,RDR,AUT
Functions:hour, minute, second, day, selfwinding
A/h:18000
Size:11 1/2'''
Production period:1963-1969
Literature: Flume: K3 181

Usage gallery

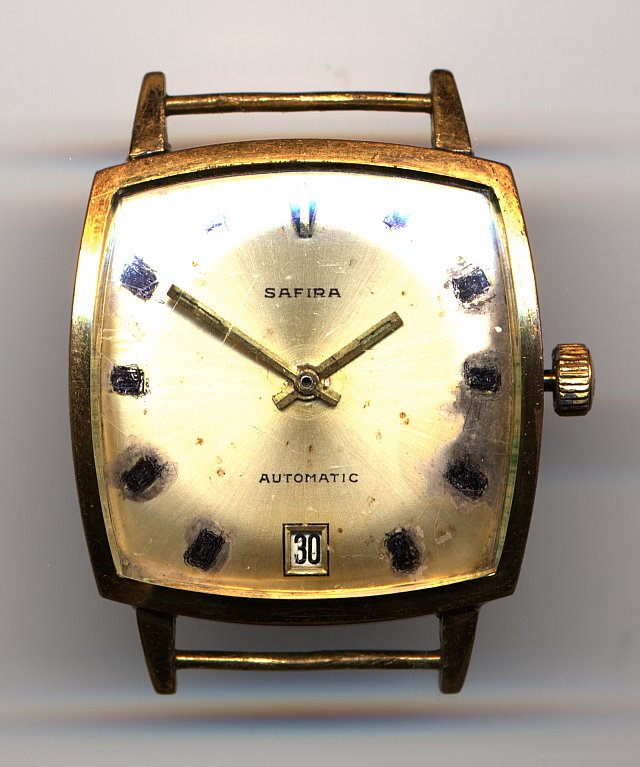

Safira Automatic gents watch

Safira Automatic gents watch
