PUW 561 / Dugena 2509

Description

The PUW caliber 561 was the base movement of the last but one movement series of the Pforzheimer Uhrenwerke. The movement plates show, that it was prepared to carry a selfwindig mechanism, better known as PUW 1561.

With 17 jewels, a swiss pallet escapement, an incabloc shock protection and 21600 beats per hour, it matched the standards of the early 70ies movements.

Another, maybe cheaper version, also called “Dugena 2509”, of the 561 was equipped with the uncommon Ruby-Neutro-Shock shock protection system.

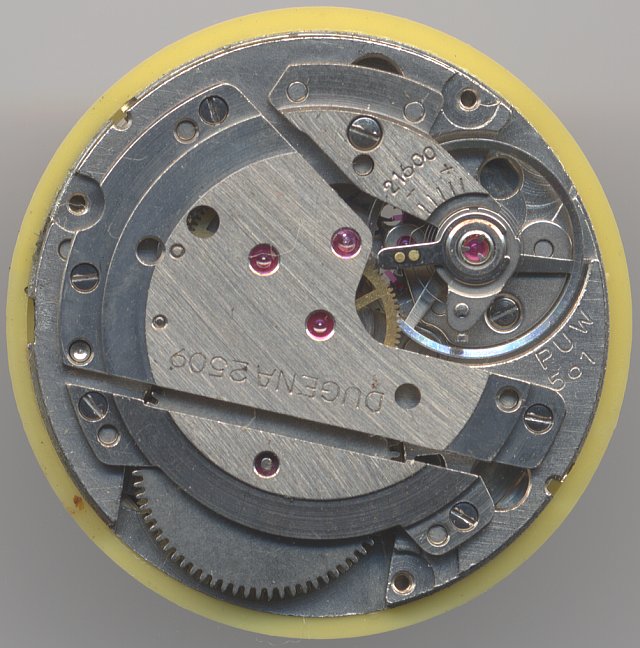

version with Ruby-Neutro-Shock protection / Dugena 2509

version with Ruby-Neutro-Shock protection / Dugena 2509

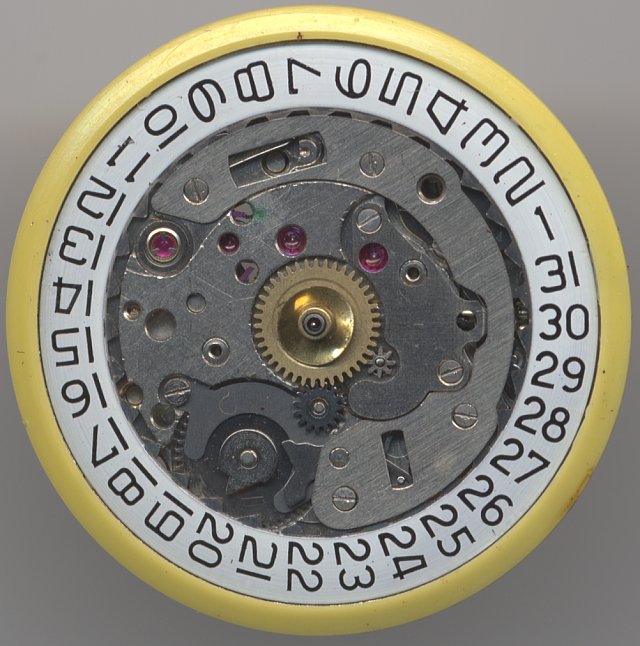

PUW 561 dial side

PUW 561 dial side

Technical data

Manufacturer:PUW
Caliber:561
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Incabloc
Ruby-Neutro-Shock
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Features:SCD,QG,RDR
Functions:hour, minute, second, day
A/h:21600
Size:11 1/2'''
Literature: Flume: K3N1 -

Usage gallery

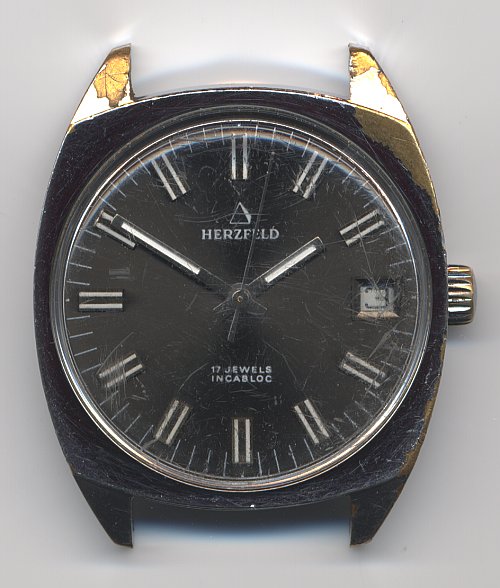

Herzfeld Herrenuhr

Herzfeld Herrenuhr

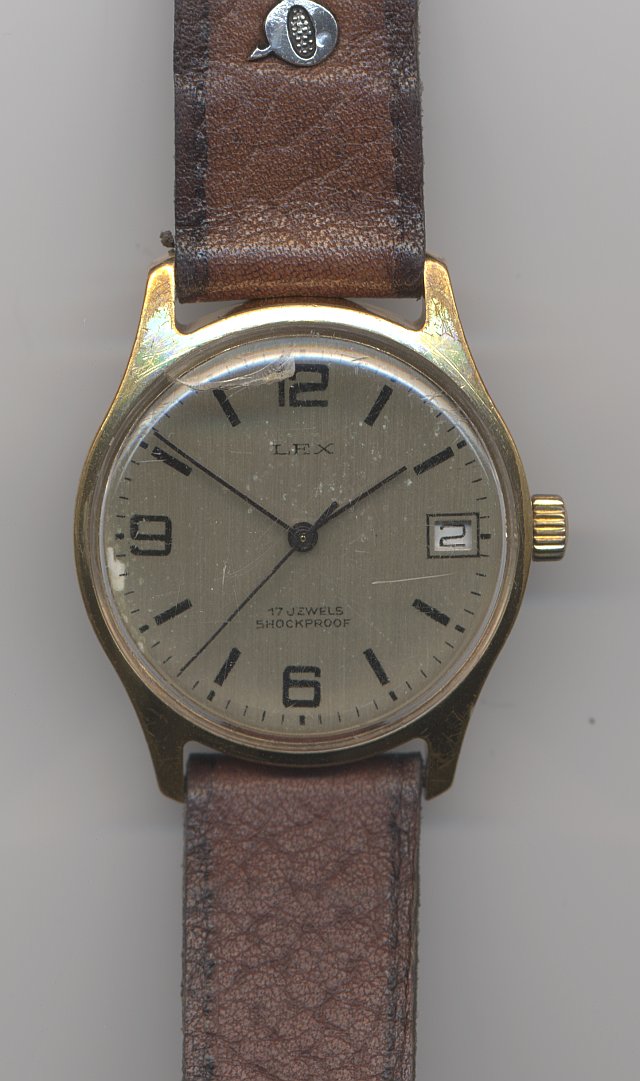

Lex Herrenuhr

Lex Herrenuhr
