PUW 700

Description

The PUW 700 is one of the earliest, probably the earliest movement of the german Pforzheimer Uhrenrohwerke factory. It still uses a cylinder escapement and was produced before WW II.

motion works

motion works

The plates of this movement are already silver-colored. This is an indication, that the PUW 700 is a rather modern movement - as long as you can say this from cylinder movements.

side view of the gear train

side view of the gear train


The ring balance is of course not shock protected, but is ruby-beared on both sides (both with bearing ruby and cap ruby). There are no further jewels in this movement.

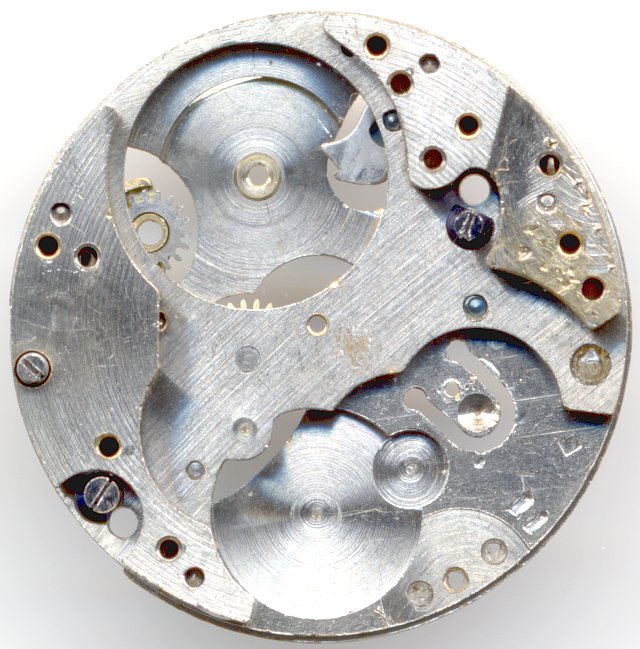

base plate

base plate

A notable fact on this movement is, that besides it simple construction, it shows details of “better” movements, such as blued screws on the dial side.

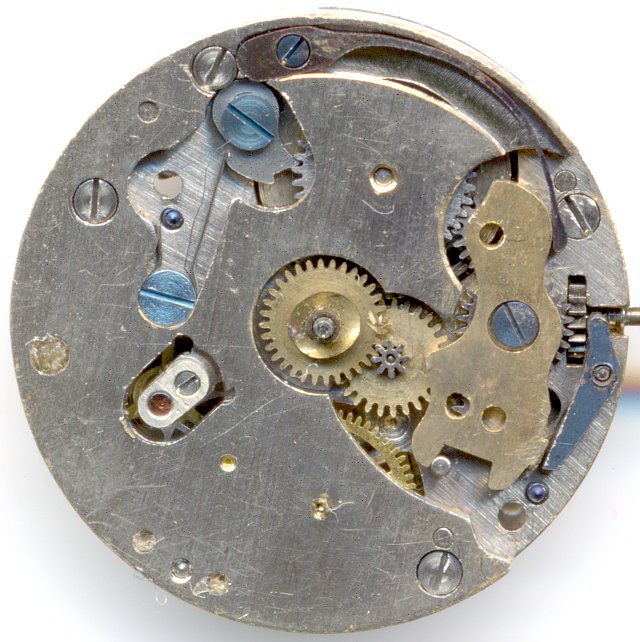

PUW 700 dial side

PUW 700 dial side

The PUW 700 has got a rocking bar winding system and a constructively well made click mechanism.

Technical data

Manufacturer:PUW
Caliber:700
Number of jewels:4
Escapement:Cylinder
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • escape wheel
  • seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:rocking bar winding system
Setting lever spring:4 hole(s)
Features:s
Functions:hour, minute, decentral second
A/h:18000
Size:9 3/4''' (measured: 21,55mm)
Literature: Flume: 1947 101

Usage gallery

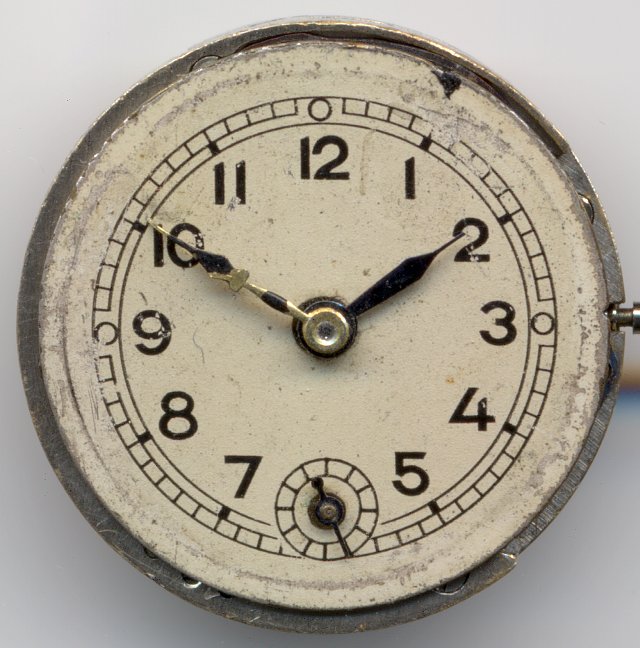

anonymous ladies' watch  (case missing)

anonymous ladies' watch (case missing)
