Description

1975, the german Pforzheimer Uhrenrohwerke (PUW) released their final series of windup movements in ladies’ watch size, the caliber series 800.

The PUW 801 was the version with center second and date indication, which has because of the calendar module, mounted on the dial side, no longer a form movement, but a round movement with a diameter of 18,5mm. Remember, in the late 1970ies, tiny ladies’ watches were still highly demanded.

base plate

base plate

As you can see, except for the center minute wheel, all bearings contain rubies, even the mainspring barrel bearing. And the jewel at 9 o’clock is noteworthy, too, since it bears the change wheel on the dial side.

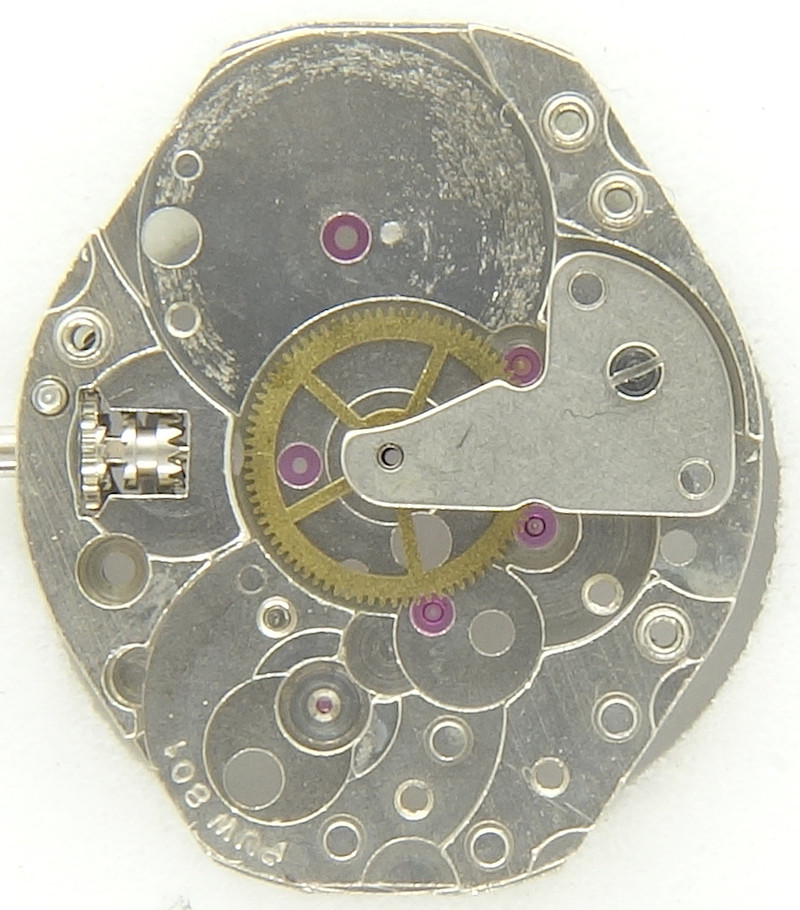

base plate with minute wheel bridge

base plate with minute wheel bridge

Because of the small size of the base movement is was probably not possible to use a modern indirectly driven center minute wheel, so here a directly driven (by the mainspring barrel) center minute wheel was used, a very classical construction.

geat train

geat train

The gear train uses, because of the directly driven center seconds, unusally large gears for this kind of movement.

The mainspring barrel carries its ratchet on its upper side, which engages with the crown wheel, when it turns slightly backwards.

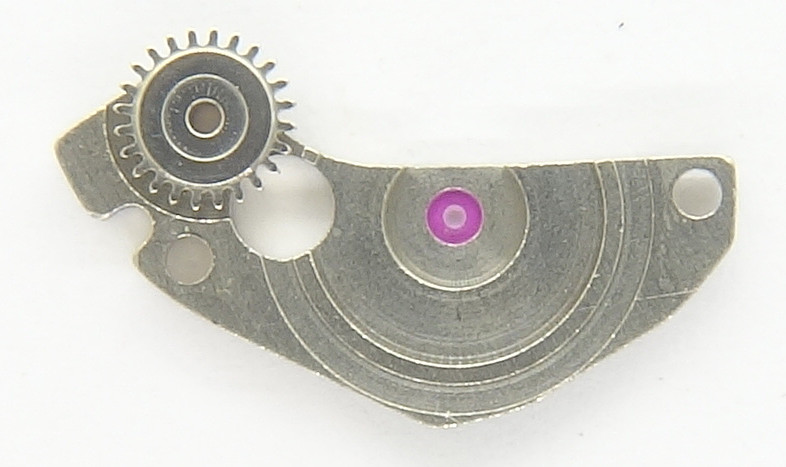

inside mainspring barrel bridge

inside mainspring barrel bridge

On the inner side of the mainspring barrel bridge, the crown wheel is riveted.

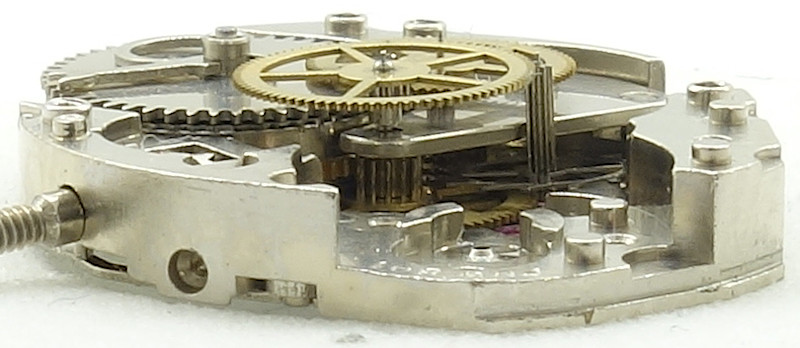

side view of the gear train

side view of the gear train

The PUW uses a screw less anular balance with three legs, which is beared in two cost efficient Antichoc S65 shock protection bearings. It beats with 21600 A/h and can be adjusted at the hairspring key only. As escapement, a traditional swiss pallet lever escapement is used.

empty dial side

empty dial side

On the yet empty dial side, you can spot the preparations for the calendar switching wheel at 12 o’clock and at 3 o’clock there’s the ruby beared change wheel, as noted above.

calendar switching wheel

calendar switching wheel

The calendar switching wheel is a pretty complex construction, which is not only made for advancing the date ring (and semi-fast correction by turing the hands back and forth), but it could also advance a weekday disc, but this feature is only used on the caliber PUW 803.

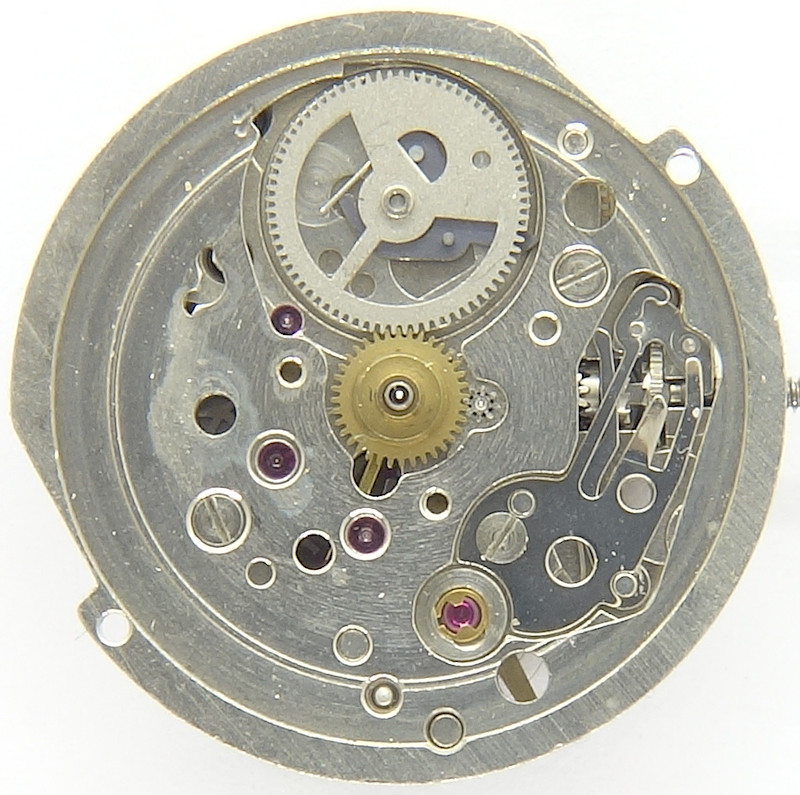

ring of the calendar module

ring of the calendar module

The calendar module ring is mounted onto the form movement. It bears the date ring and ensures, that the finger of the date switching wheel gets the neccessiary amount of tension, so that unloads precisely at midnight and advances the calendar.

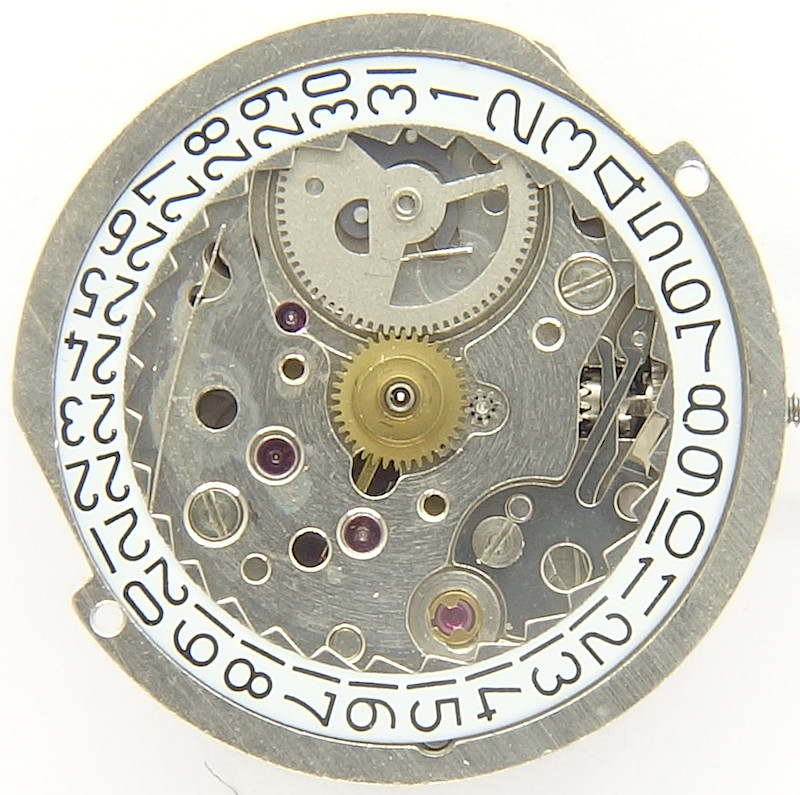

calendar mechanism

calendar mechanism

A spring at 8 o’clock engages with the sawteeth of the date ring and ensures, that the digits are always in the correct position. At 12 o’clock, you can spot the finger of the date switching wheel and how it will engage with the date ring. This finger is connected with a kind of slipping clutch with the wheel, so that it can build up enough tension to unload abruptly at midnight and advance the date ring one position.

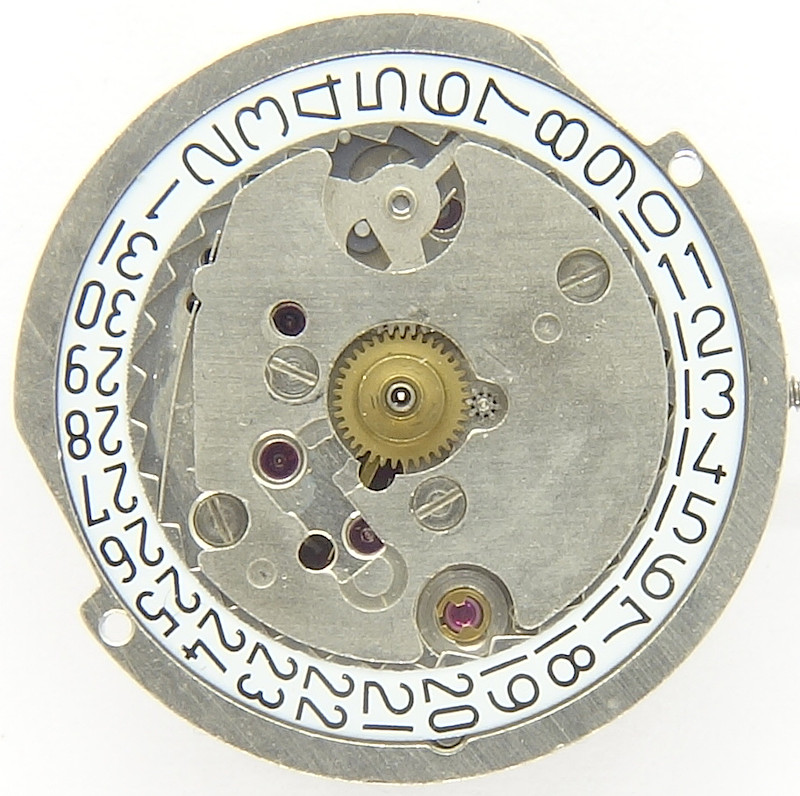

PUW 801: Dial side

PUW 801: Dial side

For a secure mounting of the calendar mechanism parts, they are covered with a deck plate.

Although this movement was already modern and rationally constructed, it had no chance at the end to compete with the upcomimg quartz movements. The PUW belonged to the early manufacturies, besides Junghans, which exclusively made quartz movements and no longer mechanical ones, but at the end, the drop in prices and the competition from far eastern manufacuries led to the end of the PUW in 1990.

In the lab

The specimen shown here is in NOS condition and just had to be re-oiled.

Technical data

Manufacturer:PUW
Caliber:801
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Antichoc S65
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
Features:SCD,QG,RDR
Functions:hour, minute, second, day
A/h:21600
Size:8 1/4''' (measured: 18,5mm)
Production period:1975 - 1979
Inventory number:20021
This movement is a kind donation from Josef M.Stadl from the DGC DGC to the movement archive. Thank you very much for your great support!
