Reconvilier 12

Description

The village of Reconvilier is located in the swiss Jura. Since 1853 (with interruption and revival in 2006), the manufactury with the same name produces watches and movements.

The Reconvilier 12 (later renamed as caliber 2310) shown here dates from the 1940ies and is a 10 12 ligne pallet lever movement, which reminds of the common movements of that time, like for example the AS 676.

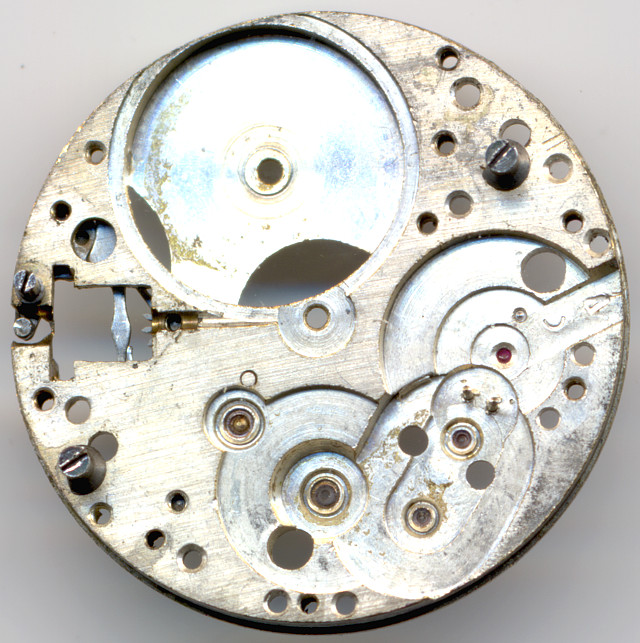

base plate

base plate

This movement with its classical construction has got borders for the bearing jewels.

gear train

gear train

In the 1940ies, this gear train was state of the art: Directly driven center minute, third wheel, fourth wheel, escapement wheel.

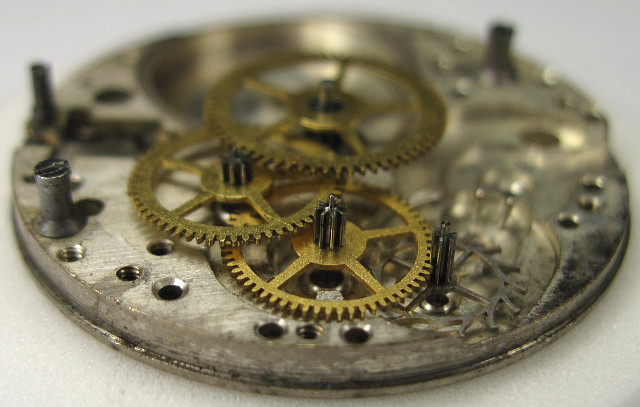

side view of the gear train

side view of the gear train

The compensation screw balance beats with 18000 A/h and is not shock protected. It regulates a conventional swiss pallet lever movement.

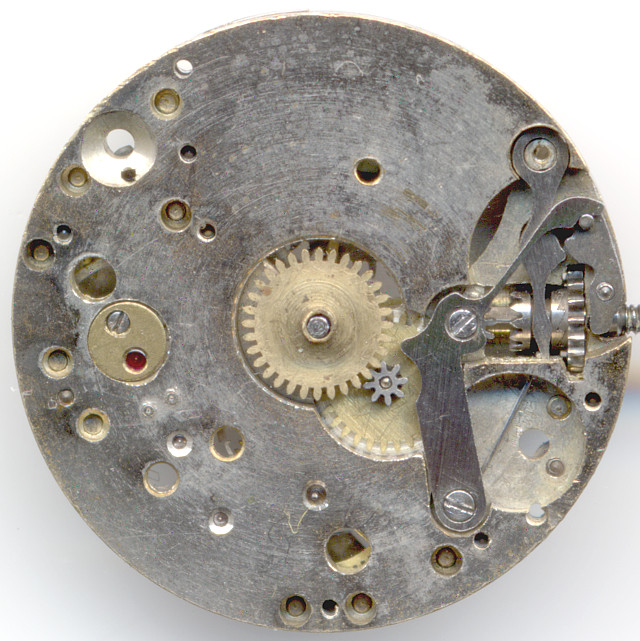

Reconvilier 12: Dial side

Reconvilier 12: Dial side

Besides the interestingly shaped setting lever spring of the yoke winding system, this movement has got a round hole at 4 o’clock with unknown purpose.

Technical data

Manufacturer:Reconvilier
Caliber:12
Number of jewels:15
Escapement:Pallet lever
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel
  • seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
Features:h,m,ss
A/h:18000
Size:10 1/2''' (measured: 23,2mm)
Literature: Flume: 1949 II 123
Inventory number:17019
This movement is a kind donation from Rolf-Jürgen. Thank you very much!
