Record 109


Record 109

Record 109

Description

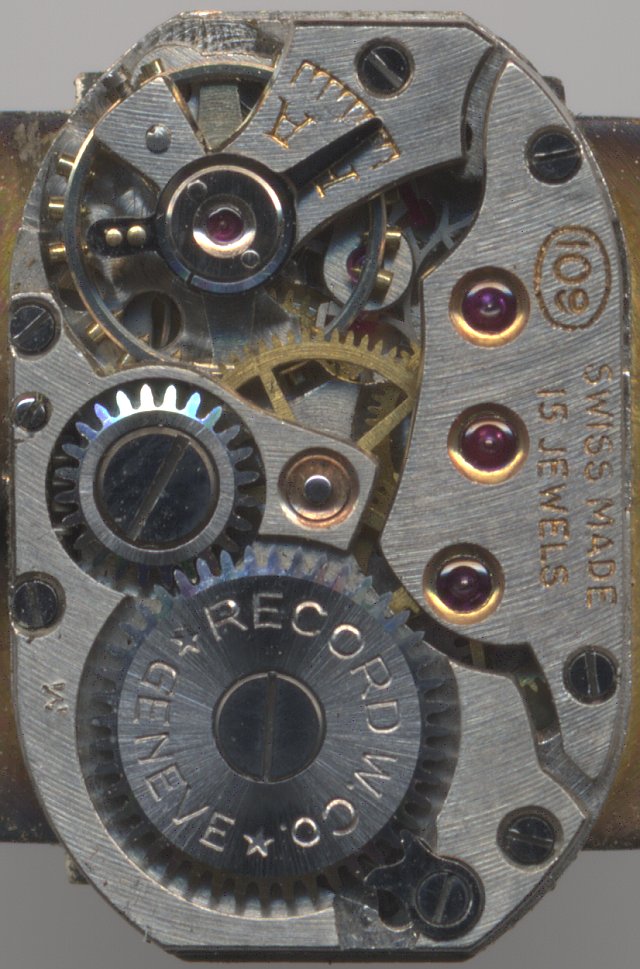

The Record caliber 109 is an optical and technical very pleasing ladies’ watches form movement, probably from the 1940ies. It contains everything, which once made a decent movement, a screw balance (yet without shock protection), a long regulator arm and 15 nicely integrated jewels with oliing reservoir.

Technical data

Manufacturer:Record
Caliber:109
Number of jewels:15
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel, mainspring barrel
Winding mechanism:yoke winding system
Functions:hour, minute
A/h:18000
Size:5 3/4 x 8 1/2'''
Literature: Flume: 1949 II 125

Usage gallery

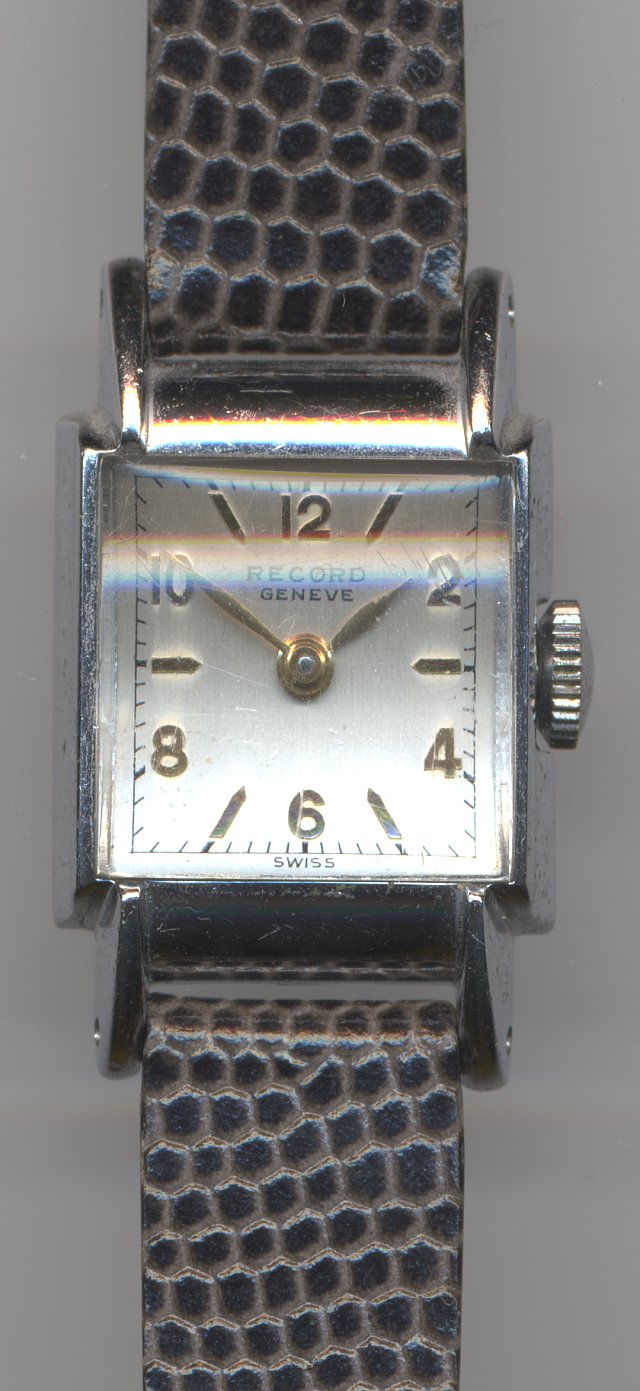

Record ladies' watch
