Rego 129

Description

The Rego 129 was probably launched in the late 1960ies. It is a mixture between an conventional pin lever movement and a Roskopf movement.

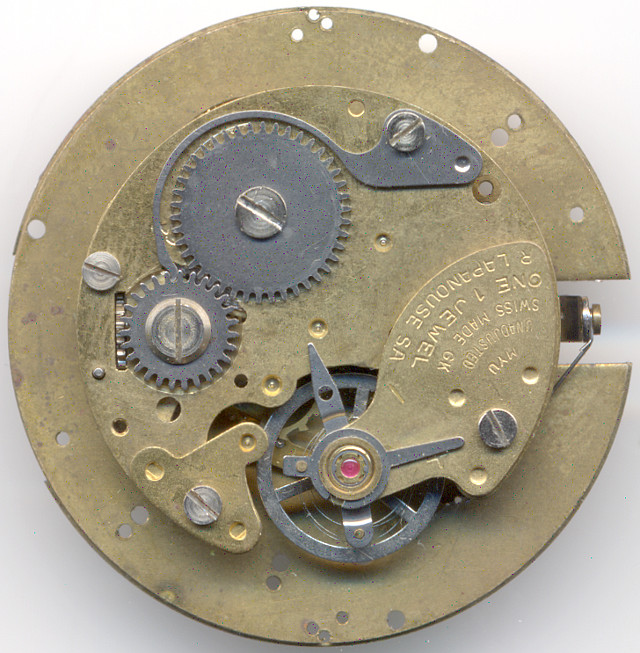

Rego 129: gear train

gear train

The gear train is on the movement side the same, as on a conventional pin lever movement with directly driven center second. Because of this, the mainspring barrel does not overlap the center of the movement, as it would do on a Roskopf movement.

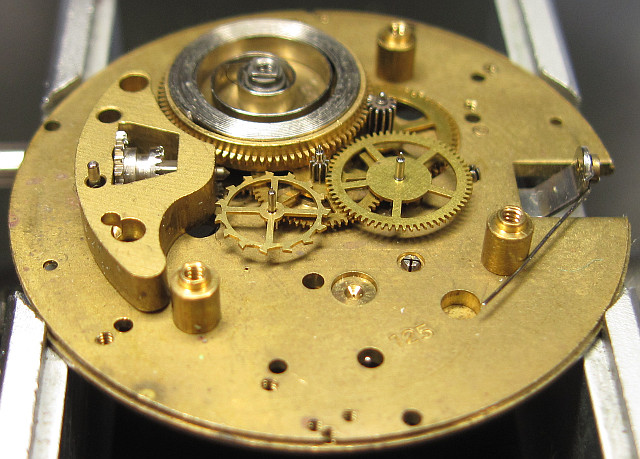

Rego 129: side view of the gear train

side view of the gear train

The balance is shock protected only on the movement side, by a shock protection bearing of the type Palierfix.

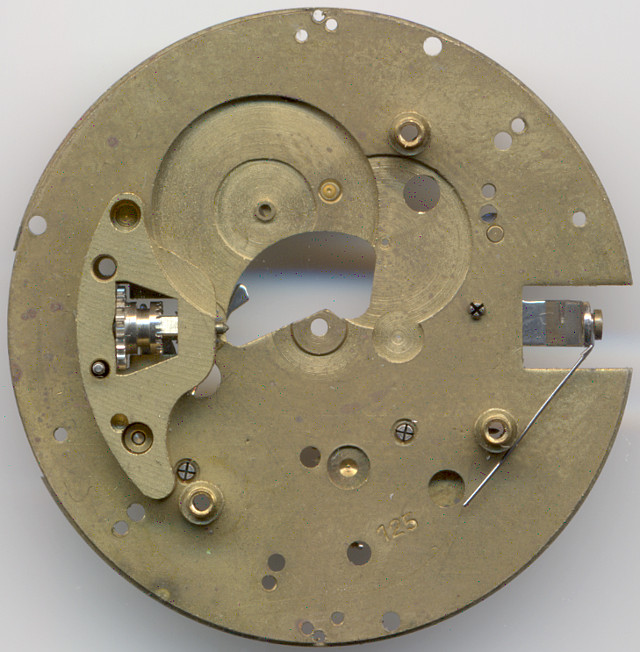

Rego 129: base plate

base plate

The balance beats slowly with 18000 A/h and regulates the movement with a specially shaped pin lever. All gears, including the mainspring barrel, are located under one bridge, and you can imagine, that fitting five axels simultaneously under that bridge is not that easy.

For a pin lever movement it’s a bit unusual, that the balance assembly has got a long regulator arm and a moveable hairspring stud, also with a long regulating arm.

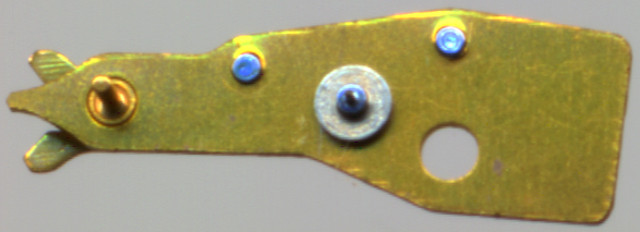

Rego 129: Detail: Pin lever

Detail: Pin lever

The pin on the left side of the pin pallet fork, intervenes into the base plate and ensure, that even on extreme deflection, the filigree pins don’t break, since the pin on the left limits the deflection.

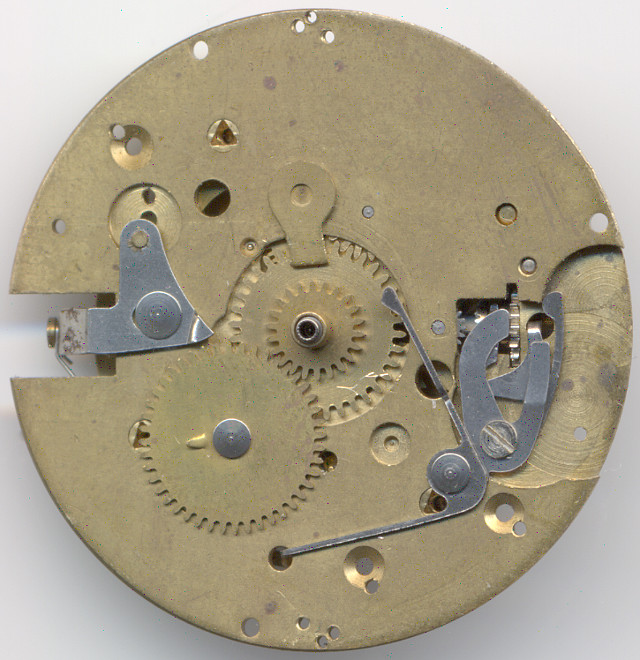

Rego 129: dial side with visible date indicator mechanism

dial side with visible date indicator mechanism

On the dial side, there are two specialities:

First, the hour and minute wheel, protected against slipping, are driven by a loosely coupled wheel on the mainspring barrel, just like on a Roskopf movement.

Second, the date indicator mechanism is a very simple one, with a riveted wheel, riveted spring and a quickset mechanism, consisting only of a spring and a special shaped sheet metal at 9 o’clock. It’s hard to believe, but that construction really works!

There’s also the yoke winding system on the dial side, and there’s no shock protecting bearing for the balance wheel.

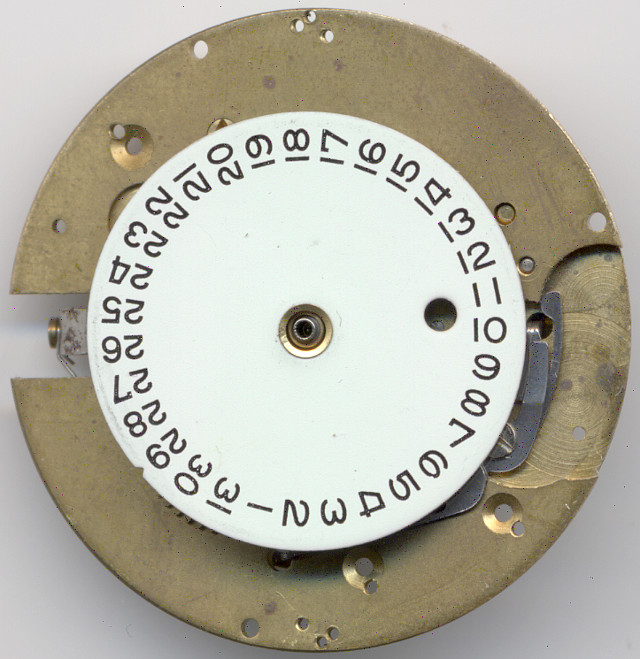

Rego 129: Rego 129 dial side

Rego 129 dial side

Technical data

Manufacturer:Rego
Caliber:129
Size:11 1/2'''
lift angle:52°
Number of jewels:1
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): Palierfix (Rego)
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel, mainspring barrel
Construction type:pillar construction
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Features:
  • SCD (direct center seconds)
  • QG (date indication (aperture))
  • RDR (date corrector)
References: Flume: K3 -

Usage gallery

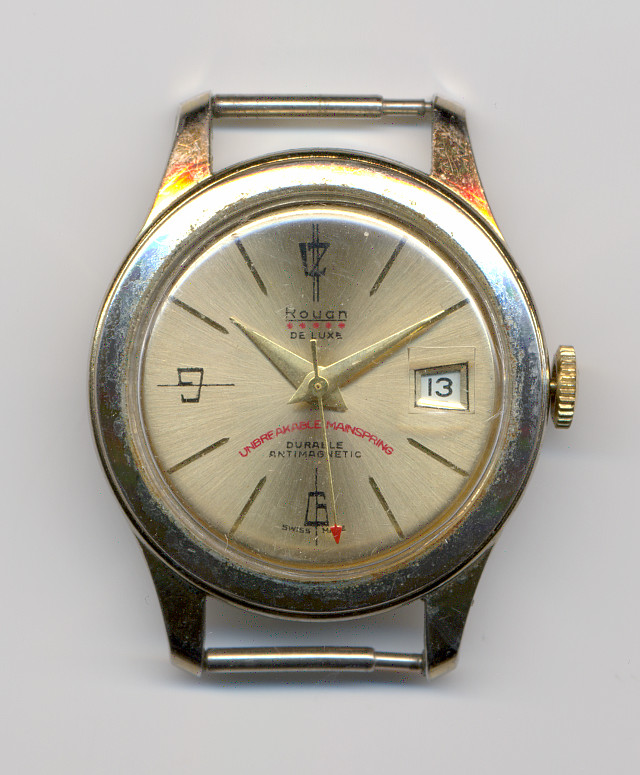

Rego 129: Rouan de Luxe mens' watch

Rouan de Luxe mens' watch
