Rego 180
Description
A very specially formed pin lever movement is the Rego caliber 180. It consists of a round shape, which is extended on top and bottom for space for balance and mainspring. A simple, but genious idea!
From the construction, it is a very elaborate pin lever movement: It has got a balance bridge with a short regulator arm, a KIF Protechoc shock protection system and all gears beared in synthetic rubies.
The rocking bar winding mechanism is located under the dial. The shape of the stop click is remarkable, since it even contains its own spring.

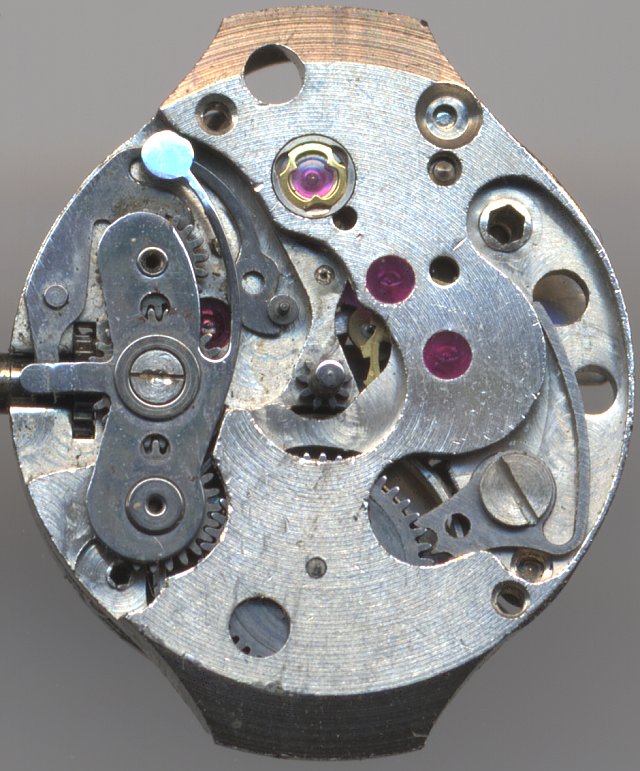

Rego 180 dial side
Technical data
| Manufacturer: | Rego |
| Caliber: | 180 |
| Size: | 6 3/4 x 8 1/4''' |
| A/h: | 18000 |
| Number of jewels: | 15 |
| Escapement: | Pin lever |
| Balance types: |
Nickel anular balance |
| Shock protection(s): |
KIF Protechoc |
| Balance bearing / direction hairspring: | Bridge |
| Moveable stud: | no |
| Adjust mechanism: | Long regulator arm |
| Construction: |
|
| Winding mechanism: | rocking bar winding system |
| Setting lever spring: | 5 hole(s) |
| References: |
Flume: 1962 34 |
Usage gallery
Cimier ladies' watch
