Seiko 21D


Seiko 21D | 17jewels.info - The Movement Archive

Seiko 21D

Description

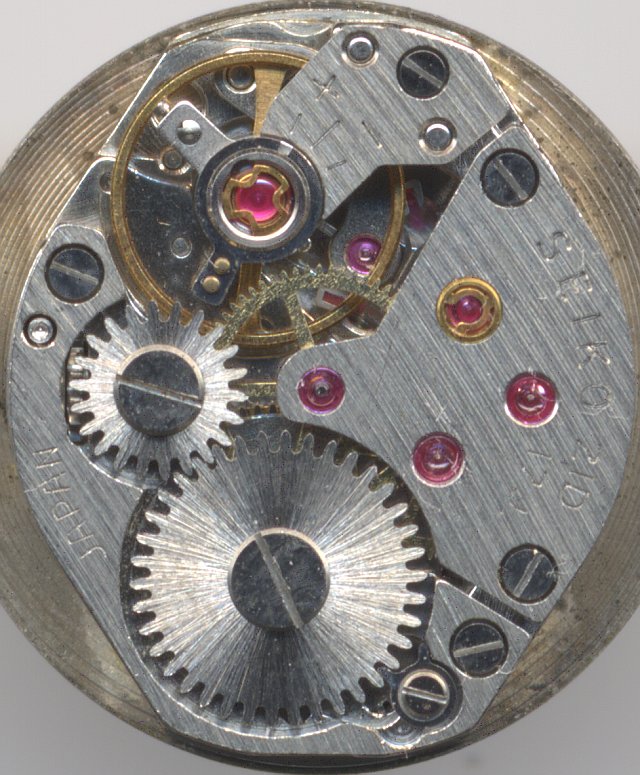

This is a nice ladies' watch form caliber of a good quality from Japan. It uses a large Glucycur balance with two legs, a Diashock shock protection system and the anchor wheel runs in a chaton with an unidentified shock protection with an omega-shaped spring.

Technical data

Manufacturer:Seiko
Caliber:21D
Size:6 3/4 x 8'''
A/h:19800
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): Diashock (Seiko)
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
References: Flume: (K3 -)

Usage gallery

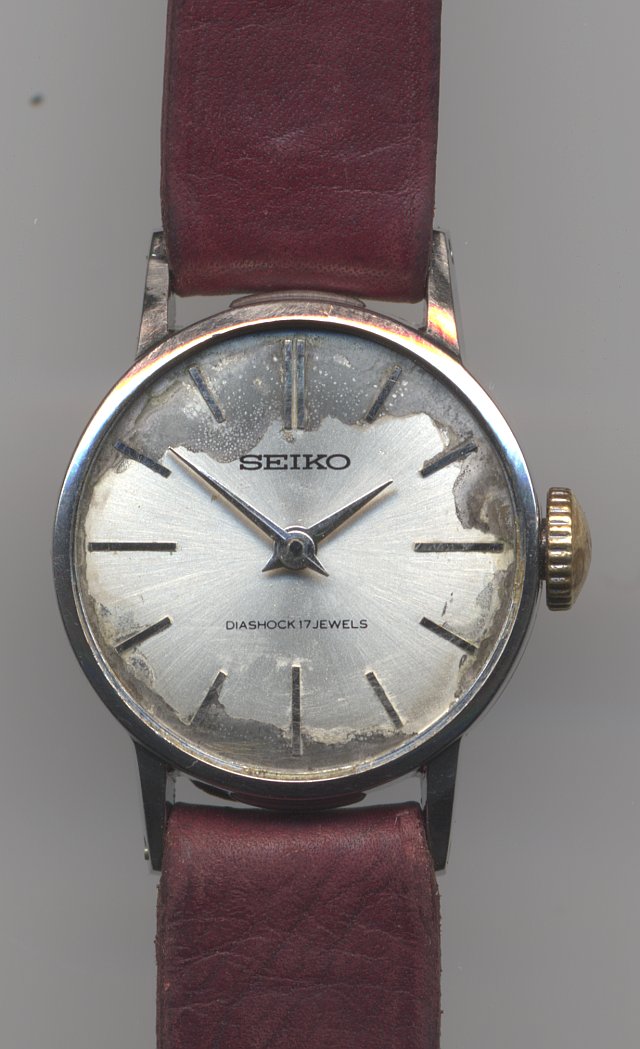

Seiko 21D: Seiko ladies' watch

Seiko ladies' watch
