Slava 2414


Slava 2414

Slava 2414

Description

The Slava Caliber 2414 is a remarkable hand winding movement from russia, since it contains two mainspring barrels, which drive the minute wheel simultaneously. Together with the large Glucydur balance a good precision can be achieved.

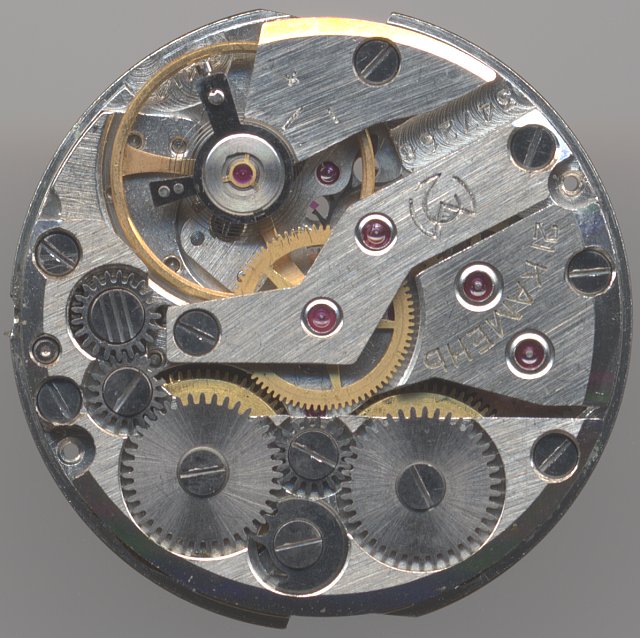

old version

old version

The rest of the movement construction is remarkable, too: The large center second wheel is directly driven and is located under a large bridge together with the anchor wheel. The rest of the gears are under a second bridge, which is located partially below the center second wheel. The date indication is realized by a quickset mechanism, where a spring is loaded between 10 and 12pm and at 12:00, the tension is unloaded with a lever, which advances the date ring one step.

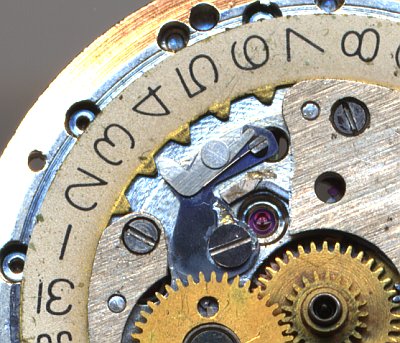

detail: date mechanism

detail: date mechanism

This movement is also available with weekday indication and selfwindig mechanism as caliber 2427.

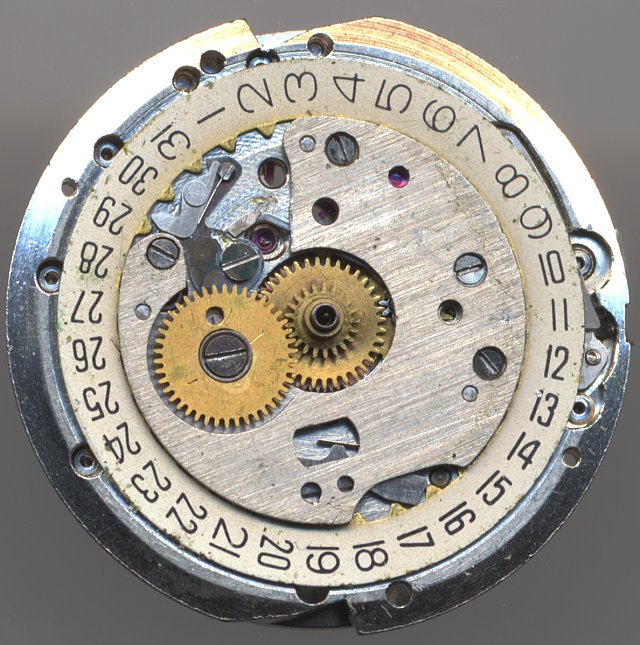

Slava 2414 dial side

Slava 2414 dial side

Technical data

Manufacturer:Slava
Caliber:2414
Number of jewels:19/21
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): 3 arms, russian
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel
  • third wheel, large driving wheel, large driving wheel
  • mainspring barrel, mainspring barrel
Features:SCD,QG,RDR
Functions:hour, minute, second, day
A/h:18000
Size:10 1/2'''

Usage gallery

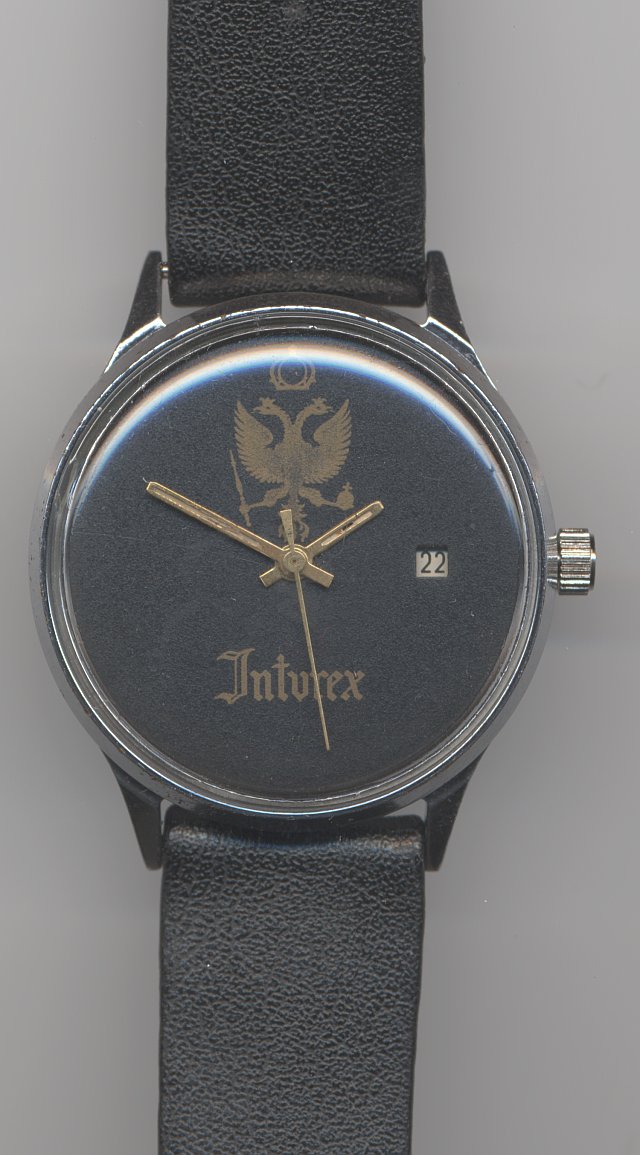

Inturex gents' watch

Inturex gents' watch

Slava gents' watch

Slava gents' watch
