Description

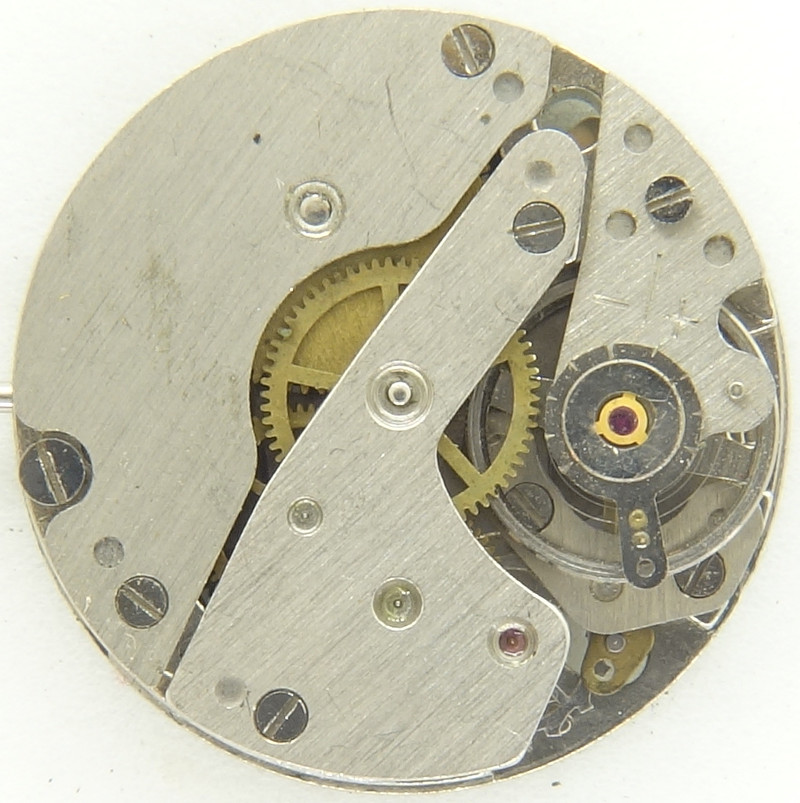

Unlike the caliber RY Empire, the Smiths LY Empire, a pin lever movement with a diameter of only 8 3/4 lignes = 19.0mm, looks pretty modern and well made.

Outside the UK this movement was probably not seen very often, as the competition with pin lever movements was just too big.

Interestingly, it reminds visually and in some points also technically of an UMF M33.

base plate

base plate

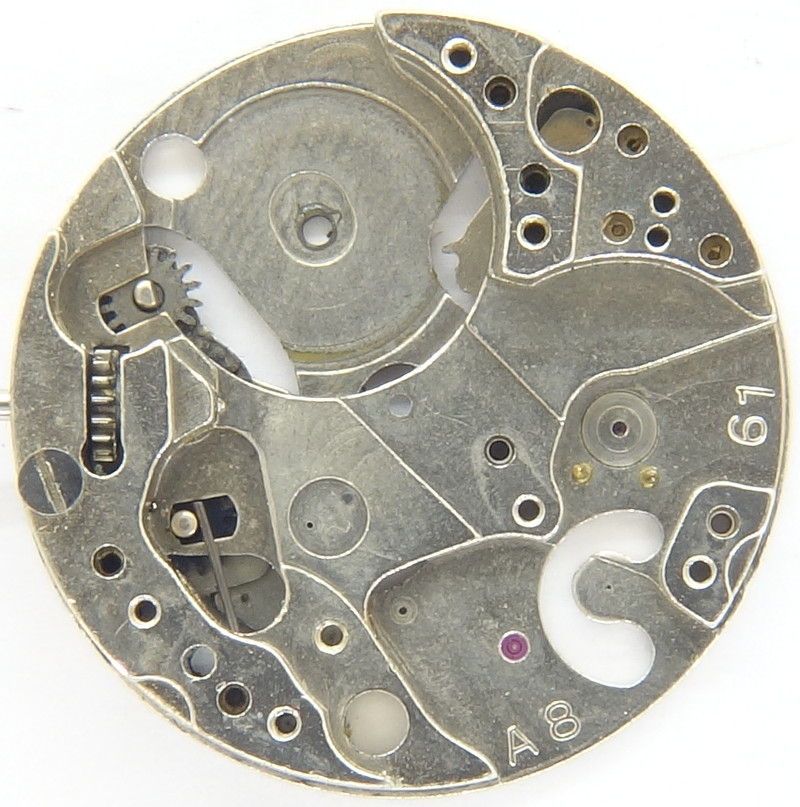

The base plate shows, that this pin pallet movement was already half massive, and even when there are not many bearing jewels, the execution looks pretty well.

At least, the escape wheel is beared in rubies and the balance wheel even in two three-leg shock protections!

gear train

gear train

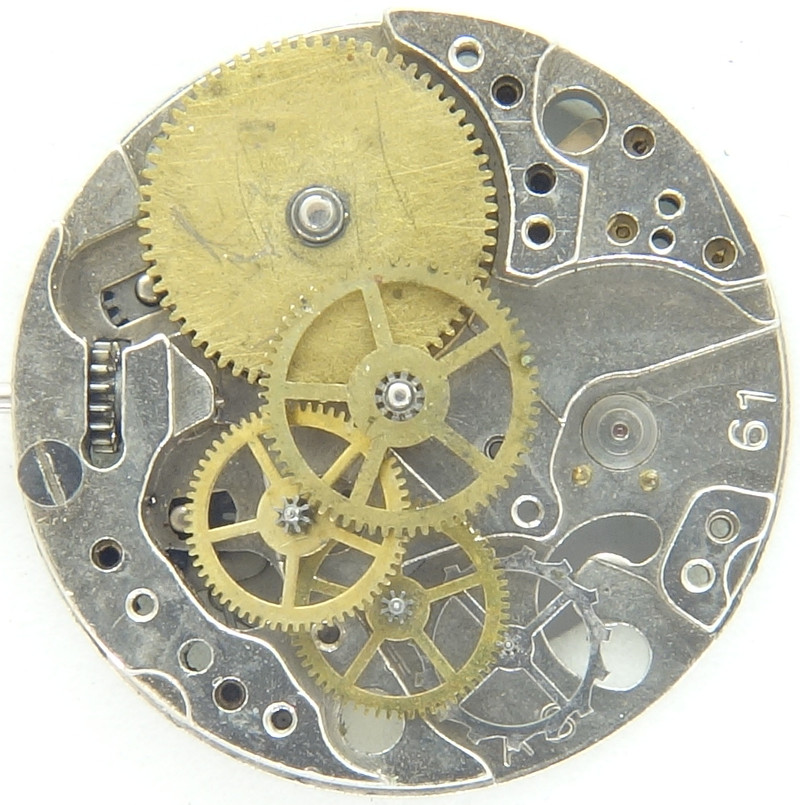

The Smiths LY Empire uses the common wheel train with mainspring barrel (whose ratchet is on the dial side), directly driven center minute wheel, third wheel, seconds wheel at 6 o’clock (to carry the decentral seconds hand) and finally a steel escape wheel, but here only for a pin lever escapement.

The code “61” might be an indication for its production year 1961.

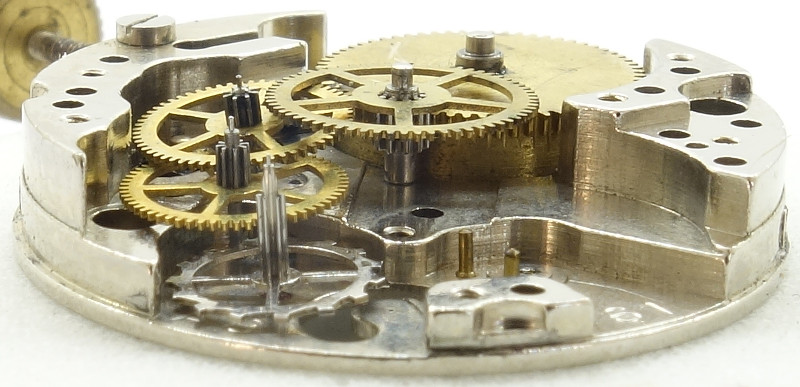

side view of the gear train

side view of the gear train

The Smiths LY Empire works with a beating frequency of 18000 A/h, which can be regulared on the hairspring key only. The anular balance has got no screws, but is already shock protected.

Smiths LY Emipre: Dial side

Smiths LY Emipre: Dial side

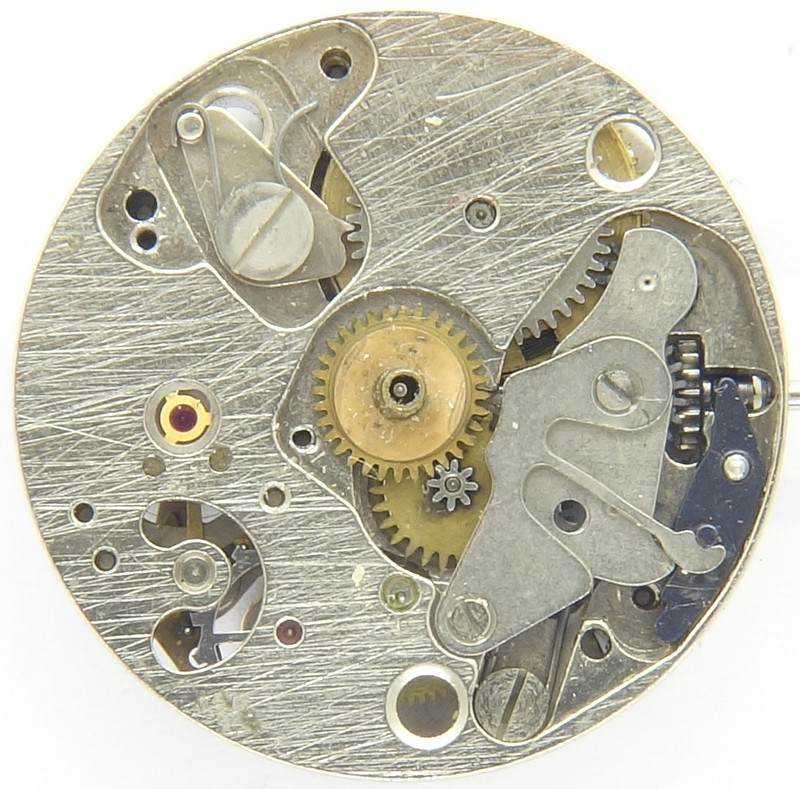

Really odd is the use of a true setting lever spring for a rocking bar winding system. While it is technically not really neccessiary, it looks very well. And together with the three leg shock protection and the very well executed ratchet, the dial side makes a very good impression, although the dial plate itself is very crude.

Technical data

Manufacturer:Smiths
Caliber:LY Empire
Number of jewels:7
Escapement:Pin lever
Balance types: Nickel anular balance
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:rocking bar winding system
Setting lever spring:2 hole(s)
Features:s
Functions:hour, minute, decentral second
A/h:18000
Size:8 3/4'''
Literature: Flume: 1962 25
Inventory number:20017

Usage gallery

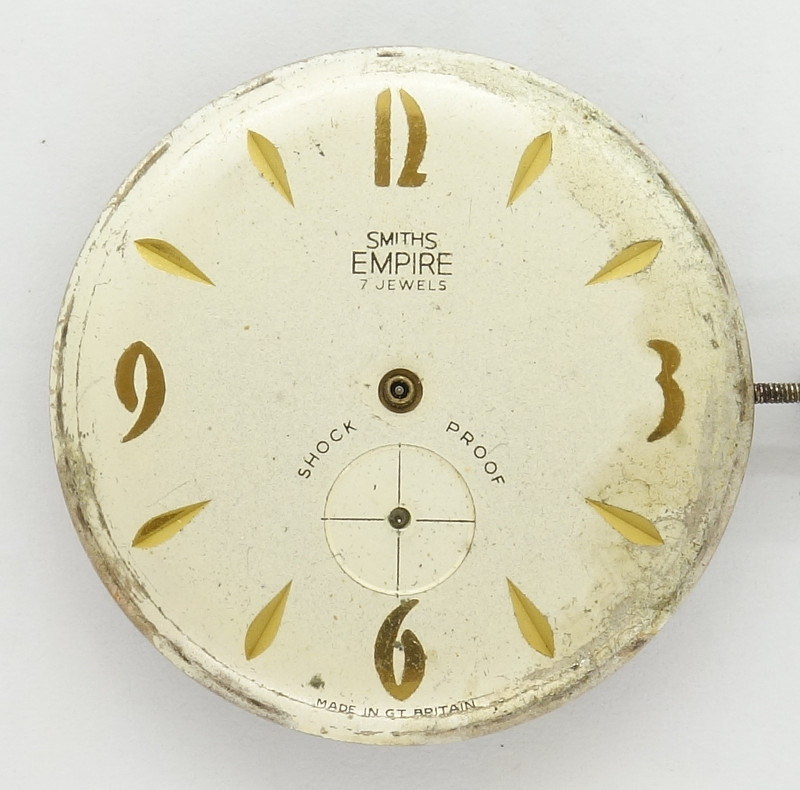

Smiths Empire gents watch

Smiths Empire gents watch

This movement is a kind donation from R.Ludwig. Thank you very much for your great support of the movement archive!
