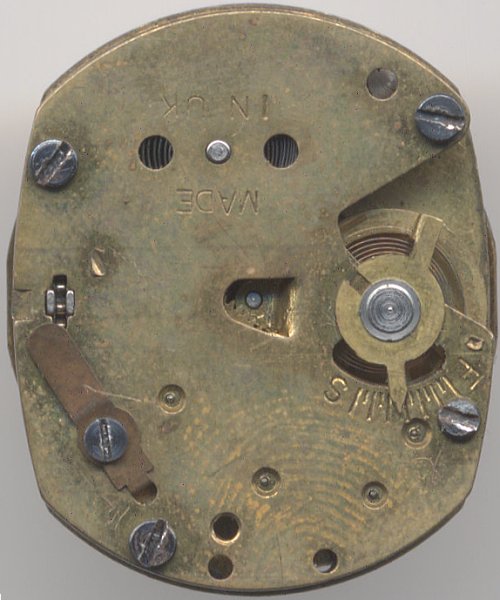

Timex M22

Description

The Timex caliber M22 was one of the first Timex movements and was found in almost every old Timex watch before 1964. It was a very simple and economic construction. It’s “V-Conic” escapement was responsible for the legendary shock resistancy of these watches.

Technical data

Manufacturer:Timex
Caliber:M22
Caliber base:Timex M21
Size:9 x 10'''
A/h:18000
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Bridge
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever, escape wheel, seconds wheel, third wheel, center minute wheel, mainspring barrel
Construction type:pillar construction
Features:
  • SCI (indirect center seconds) (optional)
Production period:- ca. 1963

Usage gallery

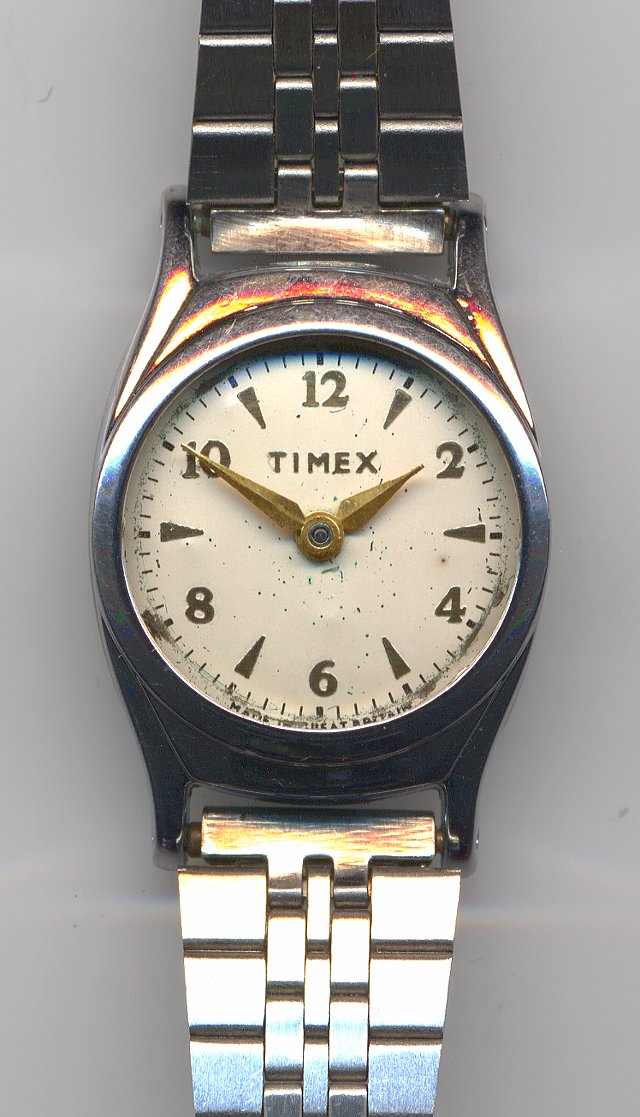

Timex M22: Timex ladies' watch, model 1010, made in 1961

Timex ladies' watch, model 1010, made in 1961
