Timex M41

Description

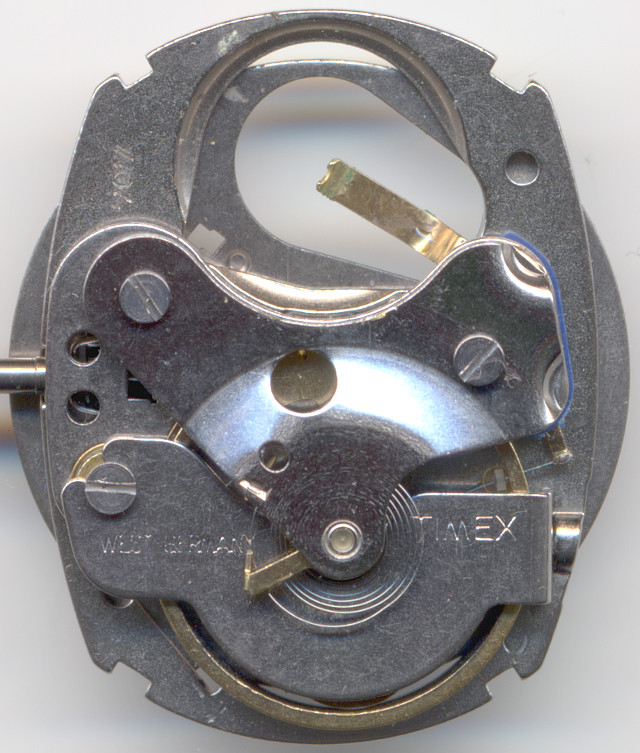

The Timex caliber M41 belongs to the second generation of electromechanical Timex movements. It bases on the caliber M40, to which a date indication is added.

The raw and undecorated movement was initially made at the Laco/Durowe factories in Germany, later the production was moved to Taiwan.

Three jewels (two white bearing jewels for the balance wheel and one ellipse jewel) were enough for stable and precise rates. Thanks to the large LR44 battery, it had an autonomy of one year.

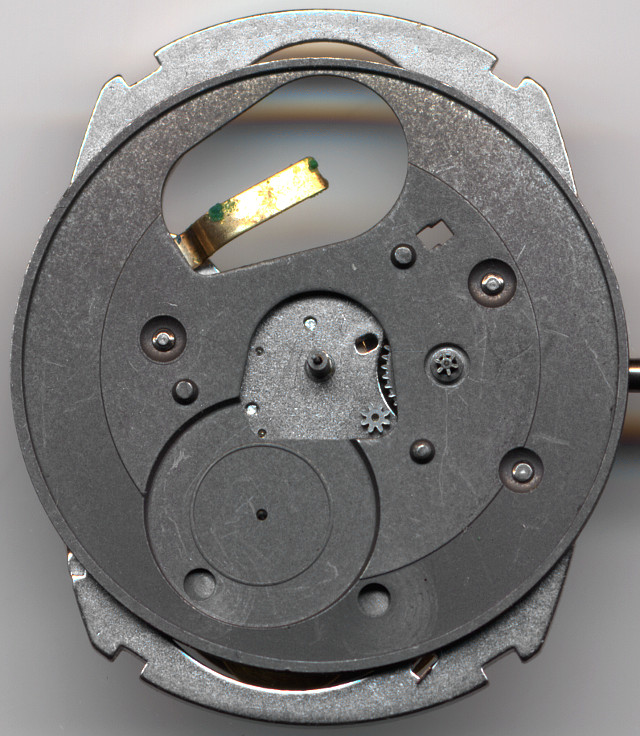

Timex M41: empty dial side

empty dial side

The empty dial side shows the preparations and spares for the simple date mechanism. At 5 o’clock, you can see the driving wheel for the hands.

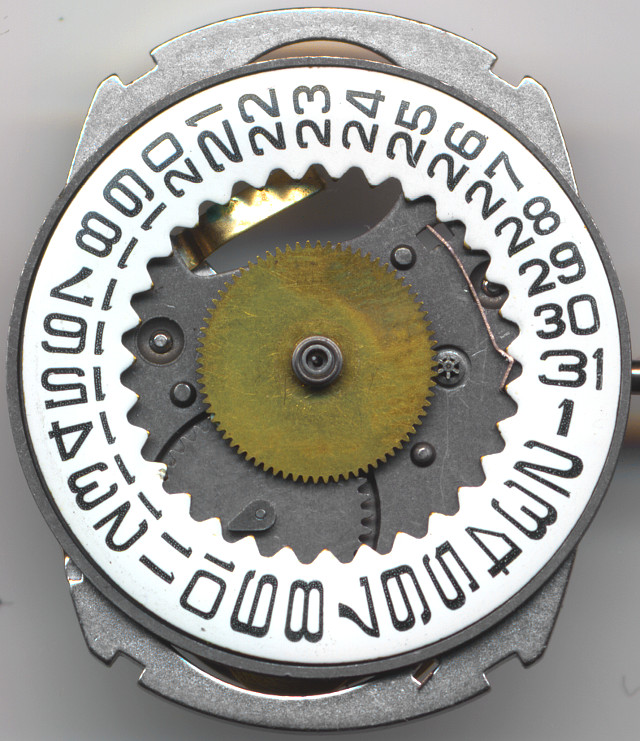

Timex M41: Timex M41 dial side

Timex M41 dial side

The date indication mechanism is a very simple construction without quickset possibility. For a movement, which runs one year without interruption, that’s sufficient.

Technical data

Manufacturer:Timex
Caliber:M41
Size:9 3/4 x 12 3/4''' (measured: 19,6 x 28,7mm)
A/h:21600
Number of jewels:3
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction type:pillar construction
Features:
  • SCD (direct center seconds)
  • JG (weekday indication (aperture))
Inventory number:16013

Usage gallery

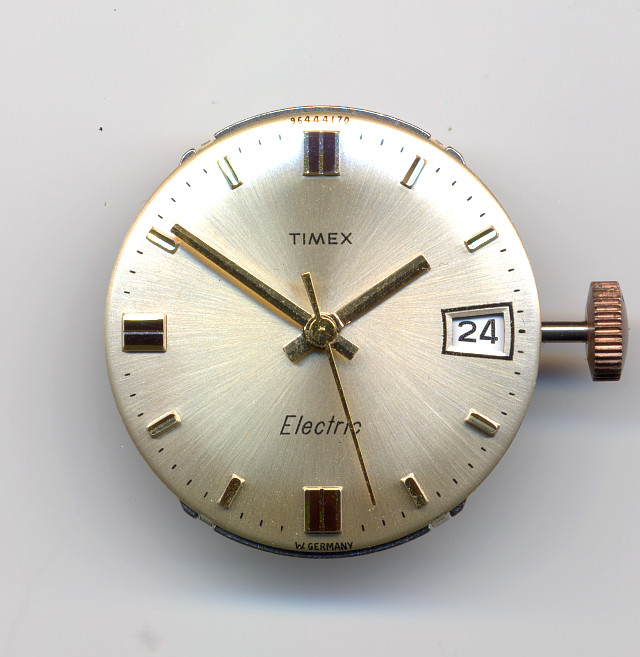

Timex M41: Timex gents watch model 9644  (without case)

Timex gents watch model 9644 (without case)

Links

This movement is a kind donation from R.Ludwig. Thank you very much!
