Timex M64

Description

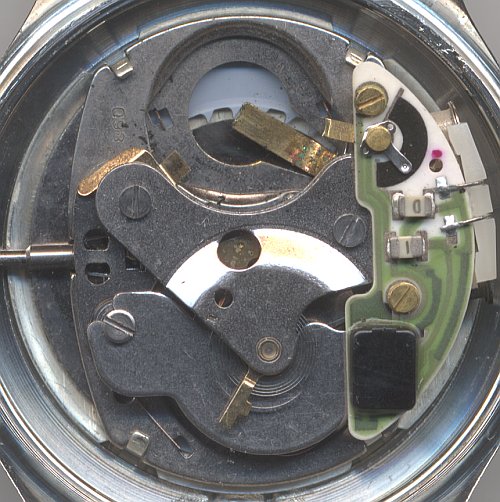

This is the earliest “Quartz” movement from Timex. Other than in later quartz movements, it is just an electromechanical movement, where the balance is controlled by a quartz-driven circuit. The quartz beats with 49152Hz, which is the result of the balance beating 6 amplitudes per second, and this multiplied with 2^13. This movement shall run within 1 second deviation per day. It can be corrected by a conventional hairspring regulator and by a variable resistor.

As many other Timex movements, it also has got a day-date feature with jumping day and semi-fast correction.

Technical data

Manufacturer:Timex
Caliber:M64
Size:13'''
A/h:21600
Shock protection(s): none
Balance bearing / direction hairspring:Bridge
Moveable stud:no
Adjust mechanism:hairspring key + electric/electronic
Features:
  • SC (center seconds)
  • QG (date indication (aperture))
  • JG (weekday indication (aperture))
  • RDR (date corrector)
  • EL (elecromechanically powered)
