Unitas 6360

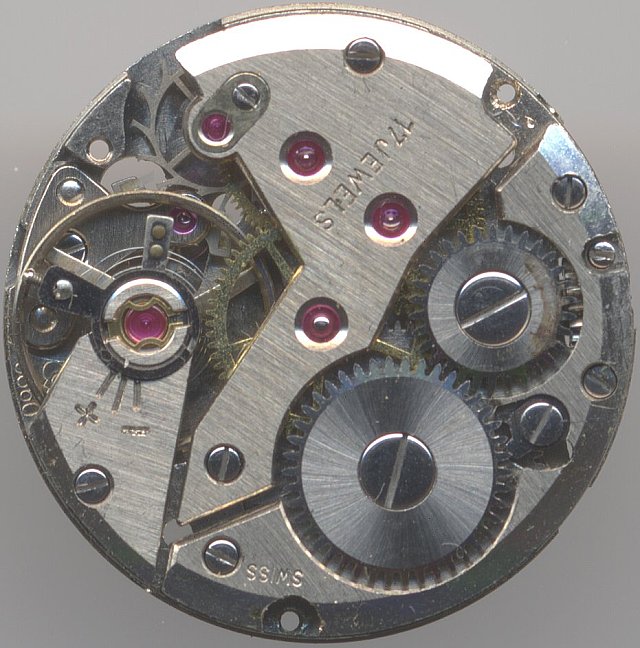

The midsize caliber Unitas 6360 is probably made in the 1960ies and contains contemporary technics:

The large nickel ring balance is secured within an Incabloc shock protection system. A long regulator arm is missing. The rest of the movement is constructed like most other movements, too.

Remarkable are the completely transparent pallet stones, which can be seen very well on the photo below. I have no idea, what material was used and what was the advantage of this.

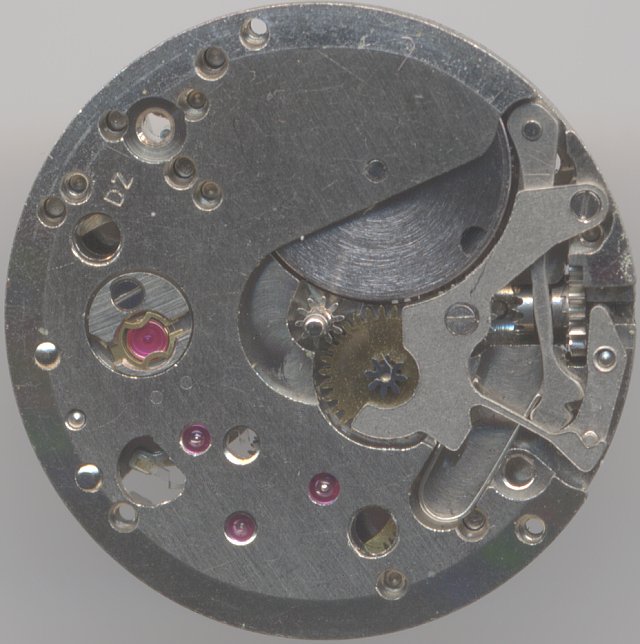

Unitas 6360: Unitas 6360 dial side

Unitas 6360 dial side

Technical data

Size:8 1/2'''
lift angle:52°
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
References: Flume: K3 11

Usage gallery

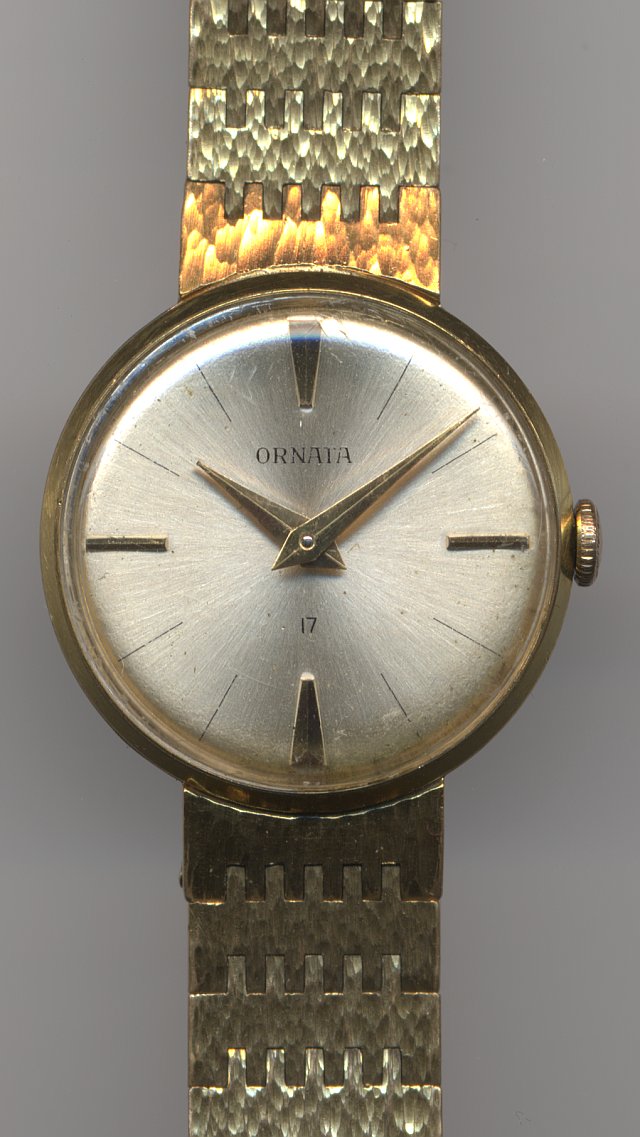

Unitas 6360: Ornata ladies' watch

Ornata ladies' watch
