Uwersi 57/6

Description

Uwersi, also known as Vereinigte Uhrenfabriken Ersingen (VUFE) produced a lot of movements in then 1950ies, most of them of only standard quality, and often used in “Anker” watches.

Among the better movements was the Uwersi 57/6, a tiny form movement (5 1/4 lignes) for ladies' watches, which has got a true pallet lever movement.

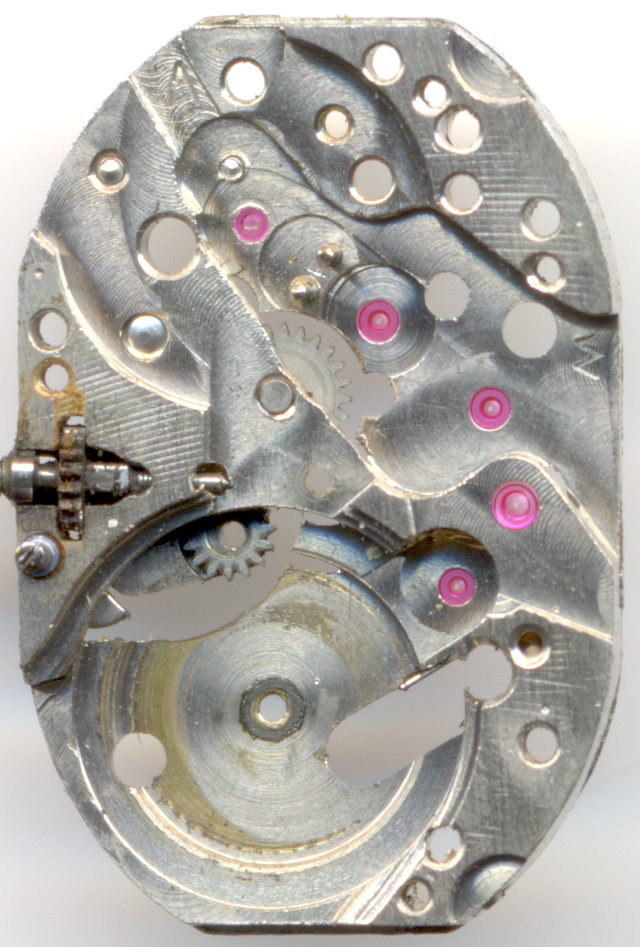

Uwersi 57/6: base plate

base plate

The base plate shows the fair quality of the movement: All quick turning wheels are ruby-beared and the construction is massive, unlike most other Uwersi movements, which were only pillar constructions.

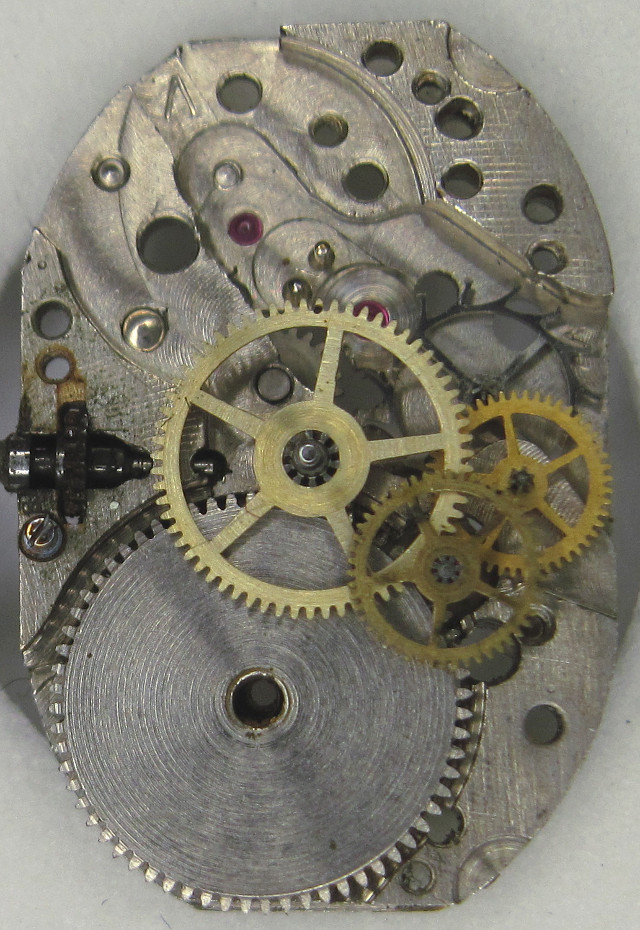

Uwersi 57/6: gear train

gear train

The gear train resembles state of the art of the 1950ies with its large escapement wheel, the small fourth and third wheel and directly driven center minute wheel.

All gears are beared under one single bridge, even the mainspring barrel. This is not very service friendly.

Uwersi 57/6: side view of the gear train

side view of the gear train

The screw-less anular balance is not shock protected. It beats with 18000 A/h and regulates a conventional pallet lever movement of swiss type. There’s no regulator arm for the hairspring, so the regulation happens directly at the hairspring key.

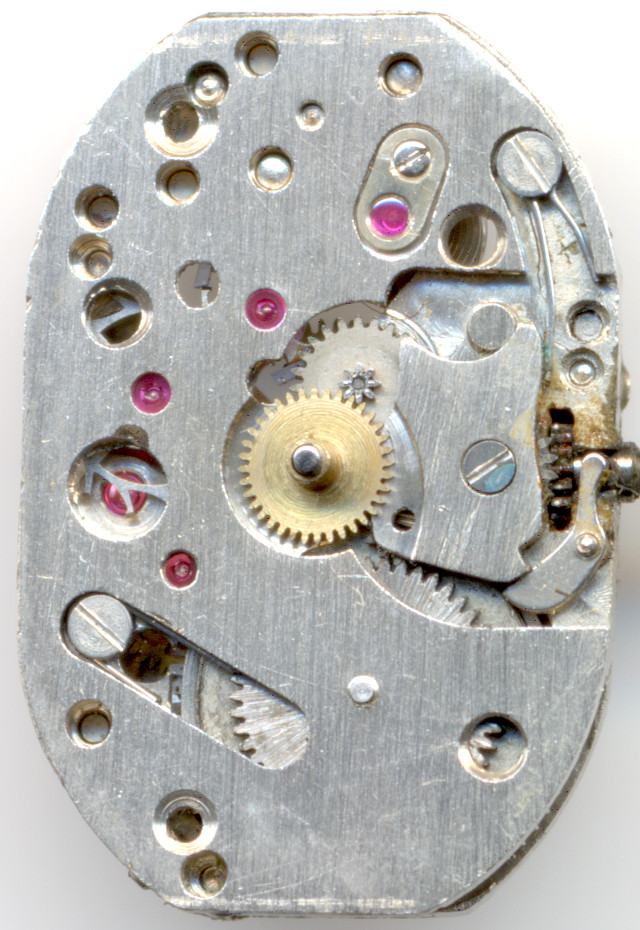

Uwersi 57/6: Uwersi 57/6 dial side

Uwersi 57/6 dial side

On the dial side, where Uwersi had to cut the costs to offer attractive prices: The click mechanism consists only of a simple spring. There’s no ratchet. And there’s only a rocking bar winding system, which is not neccessiarly bad, but in most cases an indication for a cheaper movement.

Technical data

Manufacturer:Uwersi
Caliber:57/6
Size:5 1/4''' (measured: 12,9 x 19,2mm)
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:rocking bar winding system
Setting lever spring:1 hole(s)
References: Flume: 1957 48
Inventory number:17008

Usage gallery

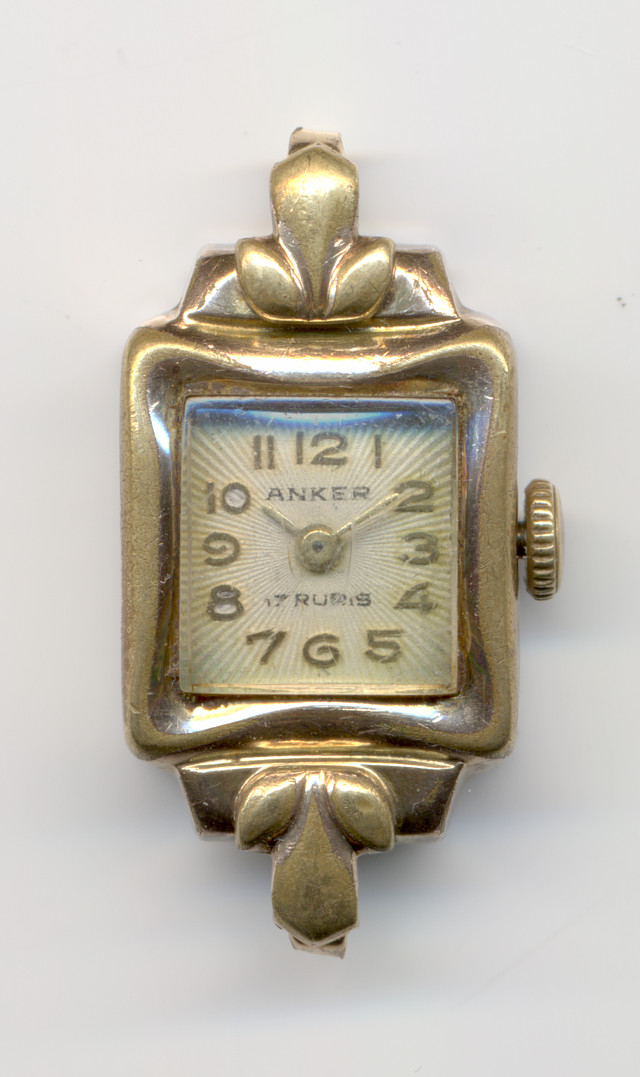

Uwersi 57/6: Anker ladies' watch

Anker ladies' watch
