Villeret 423

Description

The red-gold toned Villeret 423, also known as Aurore-Villeret 423, probably dates from the 1950ies.

Villeret was at the time part of the Ebauches SA, where it was divided up, which manufacturer had to produce which kinds of movements. For simple manual wind movement without complications, it was mainly Peseux to be responsible, so that Villeret with an almost identical product range (flat manual wind movements without center second) got behind. Accordingly rare are the Villeret movements, while the similar flat Peseux movements (mainly caliber 320) are pretty common.

The Villeret 423 stands out with its very flat construction and a very well made execution, here with shock protected Glucydur balance.

Villeret 423: base plate

base plate

Except for the minute- and mainspring barrel bearing, all bearings of the gear train are equipped with rubies, the movement side excapement wheel bearing even with a cap jewels. This totals up to 17 jewels.

Villeret 423: gear train

gear train

The gear train is truely classic, with directly driven minute wheel and decentral second (if used) at 6 o’clock.

Villeret 423: side view of the gear train

side view of the gear train

The gold toned Glucydur screw balance is beared in two Incabloc shock protections and beats slowly with 18000 A/h. It regulates a classic swiss pallet lever movement.

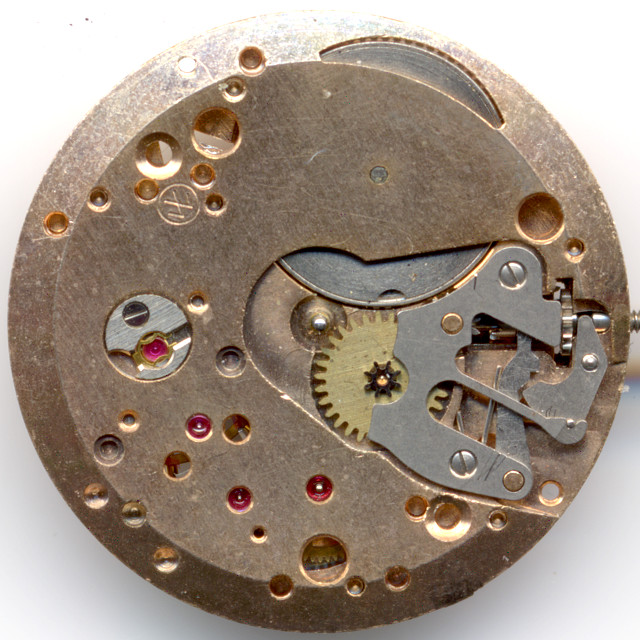

Villeret 423: Villeret 423 dial side

Villeret 423 dial side

There are no surprises on the dial side - of yourse you find a yoke winding system here.

In the lab

The specimen shown here came without case into the lab. Although cannon pinion and hour wheel are missing, it performs pretty well on the timegrapher. If it had been serviced, it might have shown even better rates.

Timegrapher result

Except for two positions, the rates are great, only the amplitude is quite low. This is an indication, that it is due for service. Nevertheless, it is remarkable, how well that 50 year old movement performs.

horizontal positions
dial up -11 s/d 211° 2.0ms
dial down +1 s/d 274° 1.7ms
vertical positions
crown right (12 up) 0 s/d 198° 2.3ms
crown up (3 up) -3 s/d 210° 2.5ms
crown left (6 up) +5 s/d 179° 2.4ms
crown down (9 up) +23 s/d 167° 2.0ms

Technical data

Manufacturer:Villeret
Caliber:423
Size:10 1/2''' (measured: 22,8mm)
A/h:18000
lift angle:52°
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur screw balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
Features:
  • s (decentral seconds)
References: Flume: K2 -
Inventory number:16010
