Wostok 2414


Wostok 2414 | 17jewels.info - The Movement Archive

Wostok 2414

Description

The Wostok caliber 2414 is an anchor movement with a diameter of 24mm. It uses a shock-protected Glucydur balance, 17 jewels and a slow changing date indication.

The center second hand is indirectly driven.

This caliber series was one of the best ones made in russia and in the 1990es, Wostok watches were very popular because of the almost uncountable different dial designs.

Technical data

Manufacturer:Wostok
Caliber:2414
Size:10 1/2'''
Height:3,80mm
A/h:19800
lift angle:42°
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): 3 arms, russian
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel, mainspring barrel
Features:
  • SCI (indirect center seconds)
  • QG (date indication (aperture))
  • RDR (date corrector)

Usage gallery

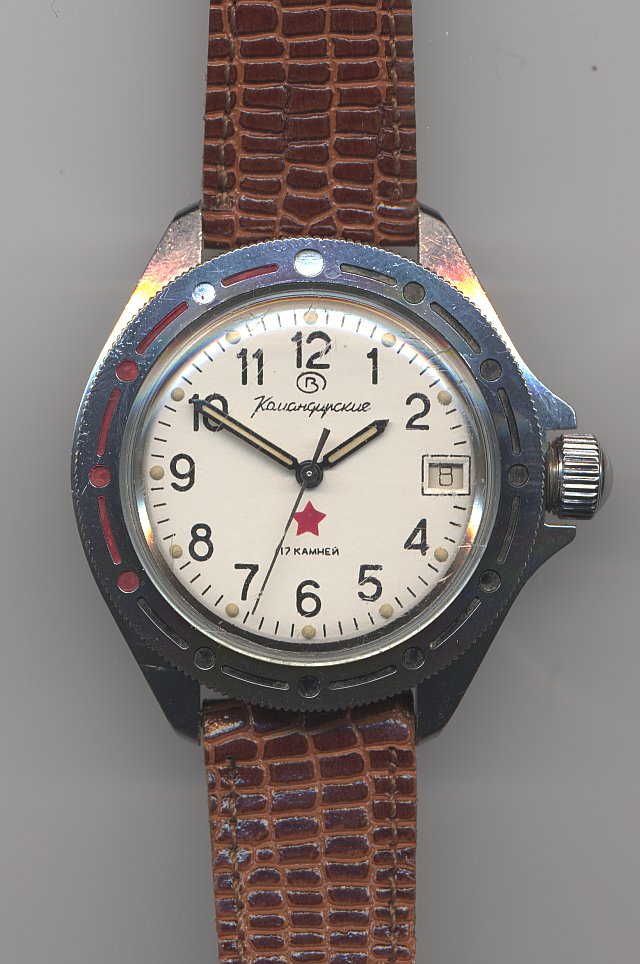

Wostok 2414: Wostok Kommandirski gents watch

Wostok Kommandirski gents watch
