Zaria 1509


This movement was not marked, but could be identified by its functions (which say, that it is a 09 movement) and the Flume K3.

It is a common constructed movement with direct center second, Glucydur balance and russian shock protection sytem.

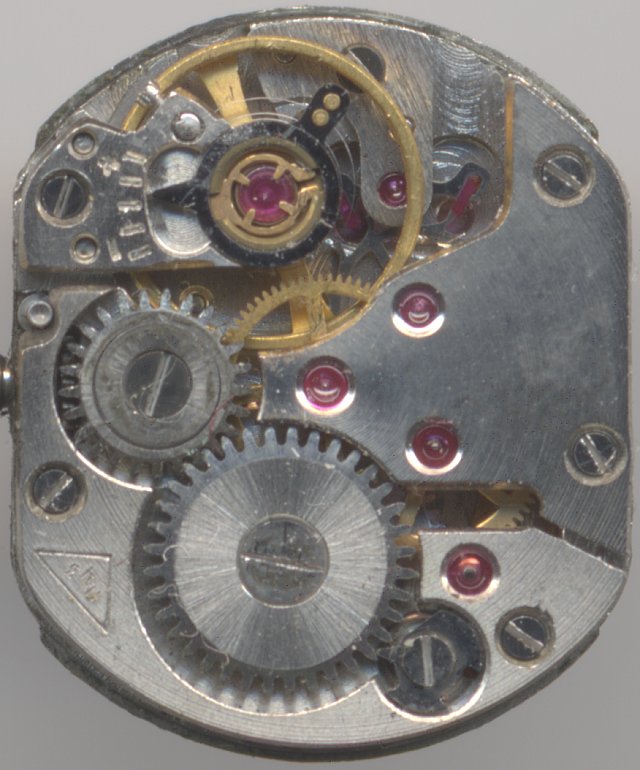

An older version, with the old Zaria markings, uses a Glucycur screw balance and an old Zaria shock protection system.

Zaria 1509: old version

old version

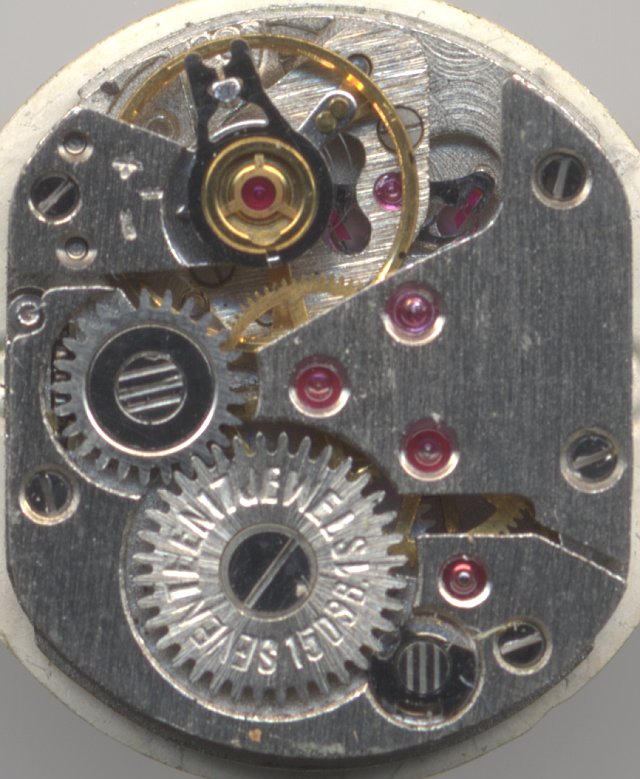

On the reworked version 1509B.1, the anchor is now located under a bridge.

Zaria 1509: Zaria 1509B.1

Zaria 1509B.1

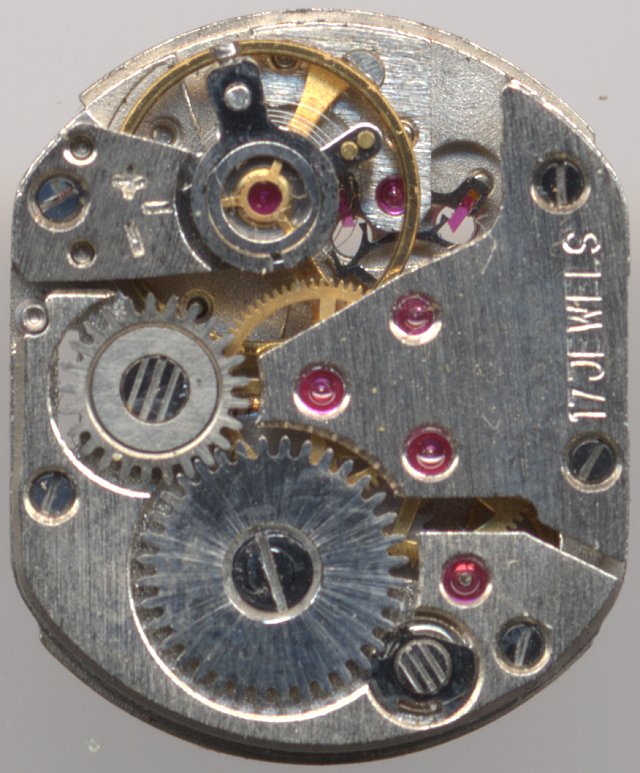

Furthermore, there’s a version, where the moveable hairspring stud is secured by a screw and not only tightly held in place.

Zaria 1509: version with moveable hairspring stud

version with moveable hairspring stud

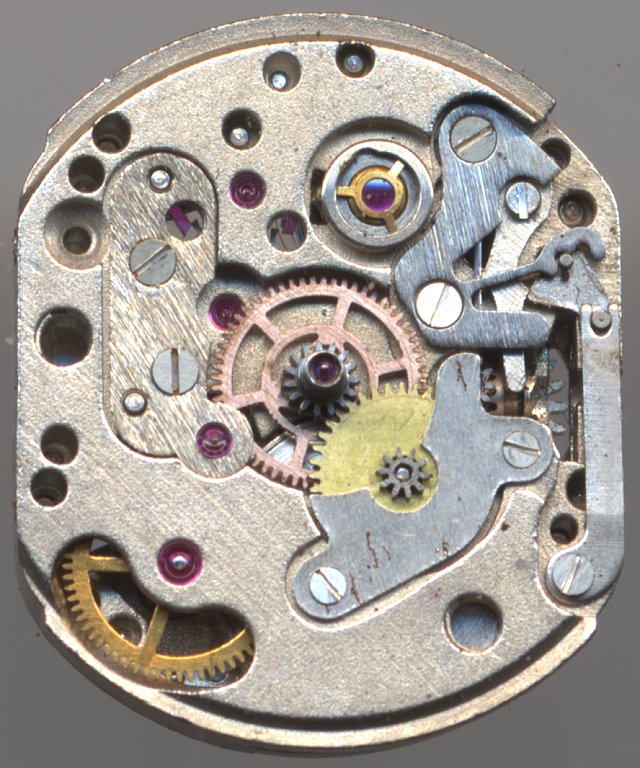

Zaria 1509: Zaria 1509 dial side

Zaria 1509 dial side

Technical data

Size:6 1/2 x 8'''
lift angle:43.33°
Number of jewels:15/17
Escapement:Pallet lever
Balance types: Glucydur screw balance
Glucydur anular balance
Shock protection(s): 3 arms, russian
Balance bearing / direction hairspring:Clockwise
Moveable stud:no/yes
Adjust mechanism:Long regulator arm / hairspring key
  • lever
  • escape wheel, seconds wheel, third wheel
  • large driving wheel, mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
  • SCD (direct center seconds)
References: Flume: K3 88

Usage gallery

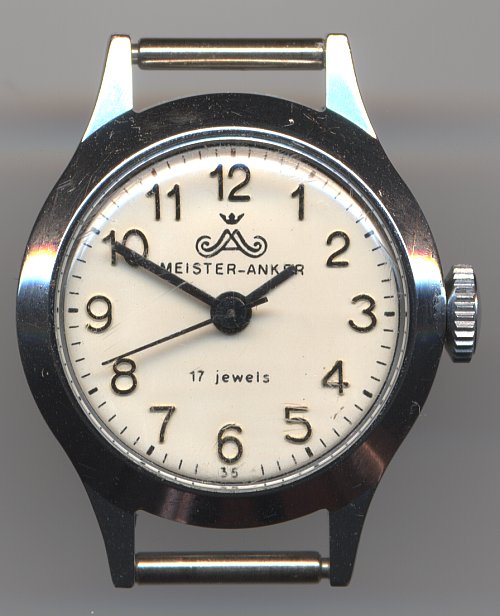

Zaria 1509: Meister-Anker ladies' watch

Meister-Anker ladies' watch

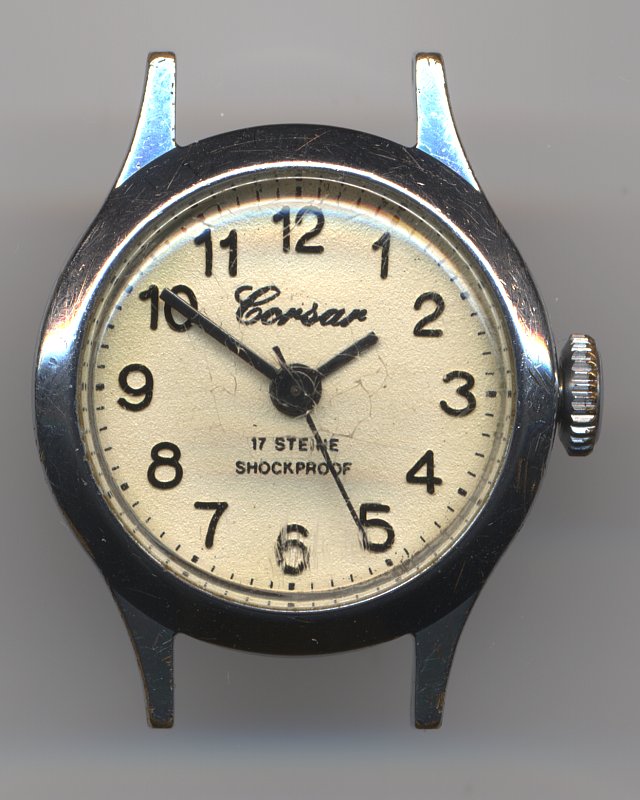

Zaria 1509: Corsar ladies' watch

Corsar ladies' watch

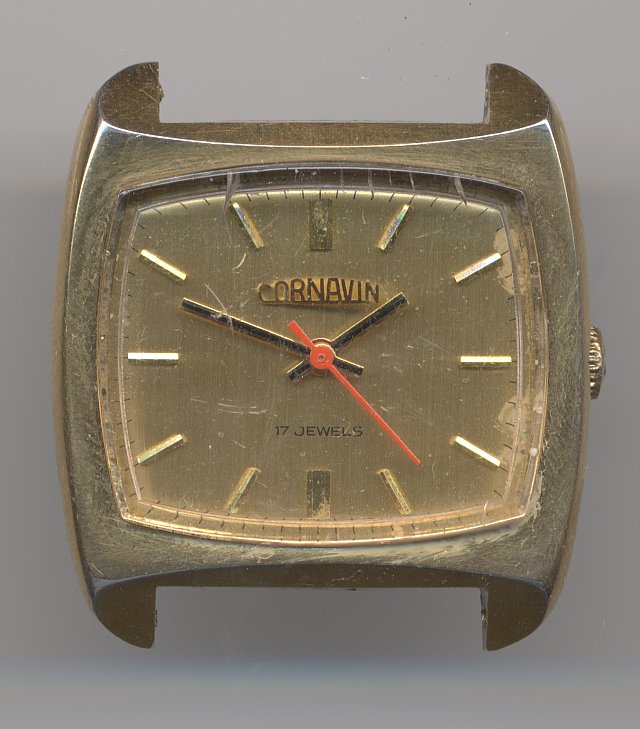

Zaria 1509: Cornavin gents watch

Cornavin gents watch

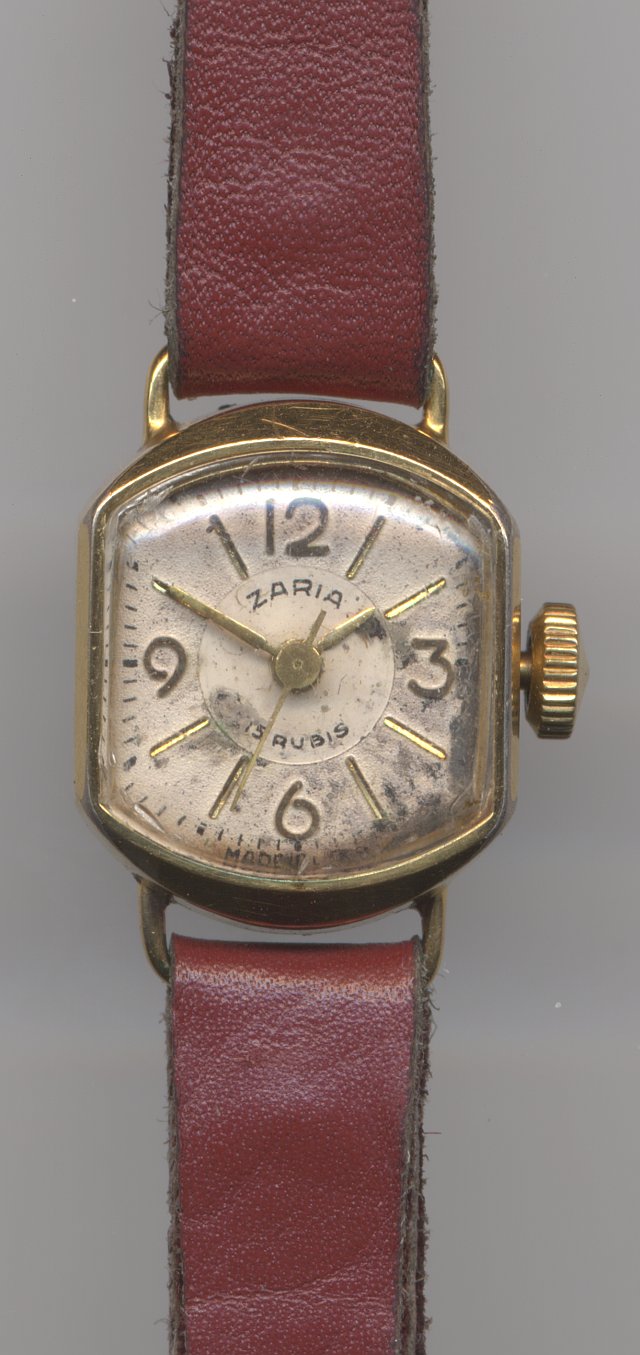

Zaria 1509: Zaria ladies' watch

Zaria ladies' watch
