Zaria 1800

Description

Probably from the 1950s is the small windup movement Zaria 1800 with its nominal size of 6 1/4 lignes (18.4 x 14.0mm).

It was produced over a longer period and during that time, the screw balance was replaced by a simple anular balance.

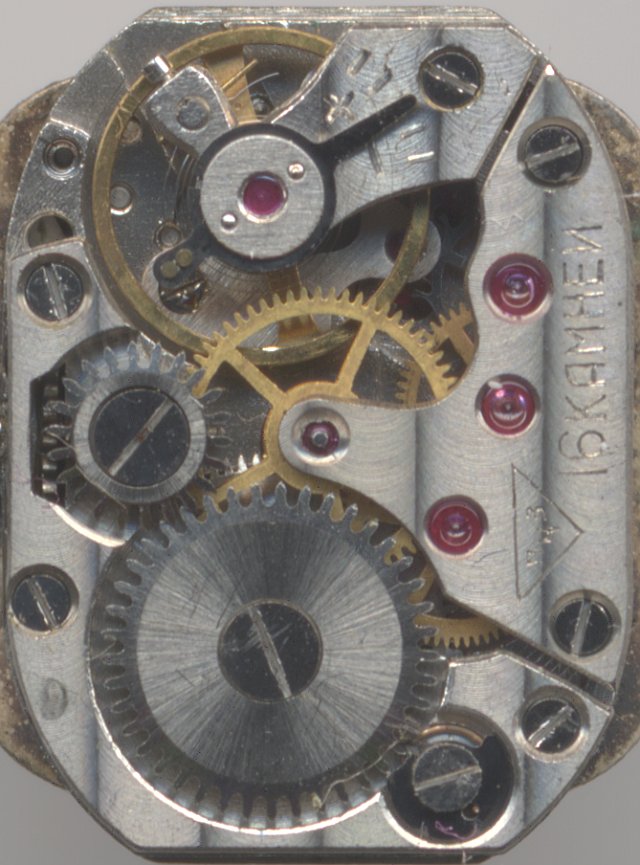

Zaria 1800: more recent version with anular balance

more recent version with anular balance

The construction represents the technical state of the art of the 1950s with mainspring barrel, directly driven center minute wheel, third wheel, seconds wheel and escape wheel.

As escapement, a swiss pallet lever is used.

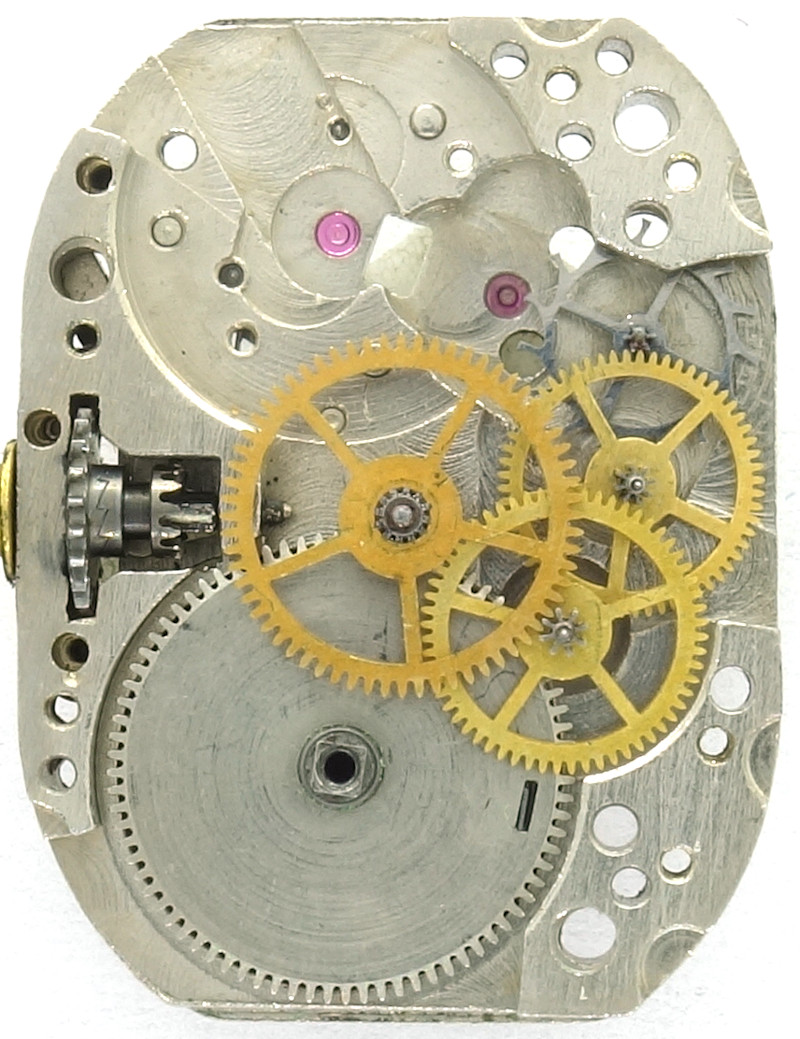

Zaria 1800: gear train

gear train

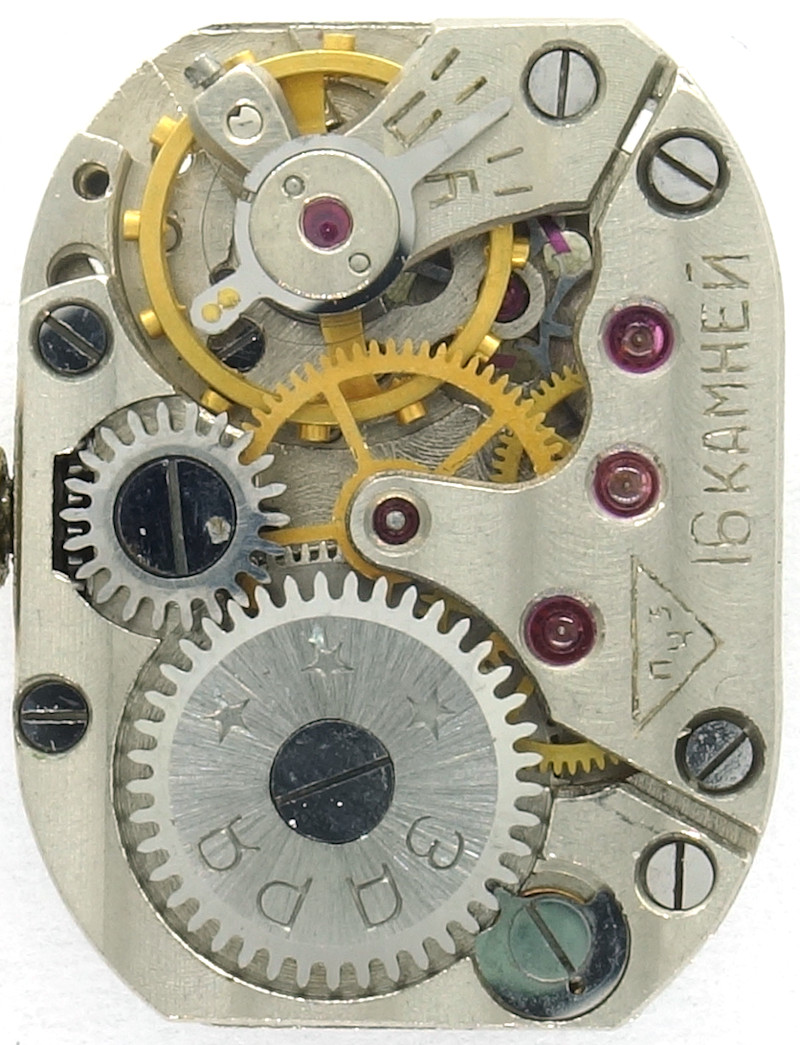

The small screw balance, whose screws are positioned at equal distances from each other on the balance wheel rim and are therefore likely only cosmetic, already operates at 21,600 A/h. With the help of a long regulator arm, the beat rate can be precisely adjusted.

Unfortunately, there’s yet not shock protection on the Zaria 1800, which resulted in many watches, which were put with broken balance pivots into a drawer.

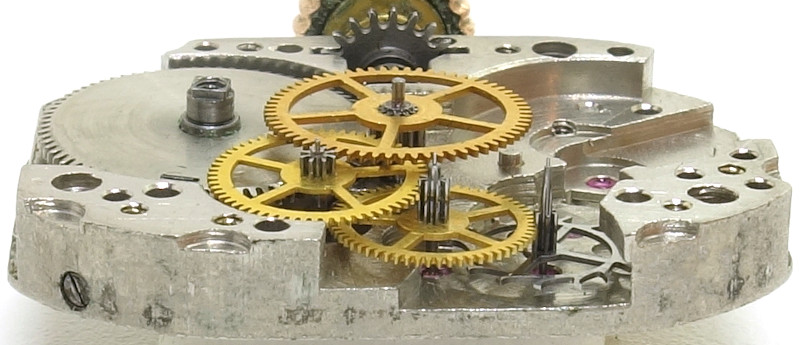

Zaria 1800: side view of the gear train

side view of the gear train

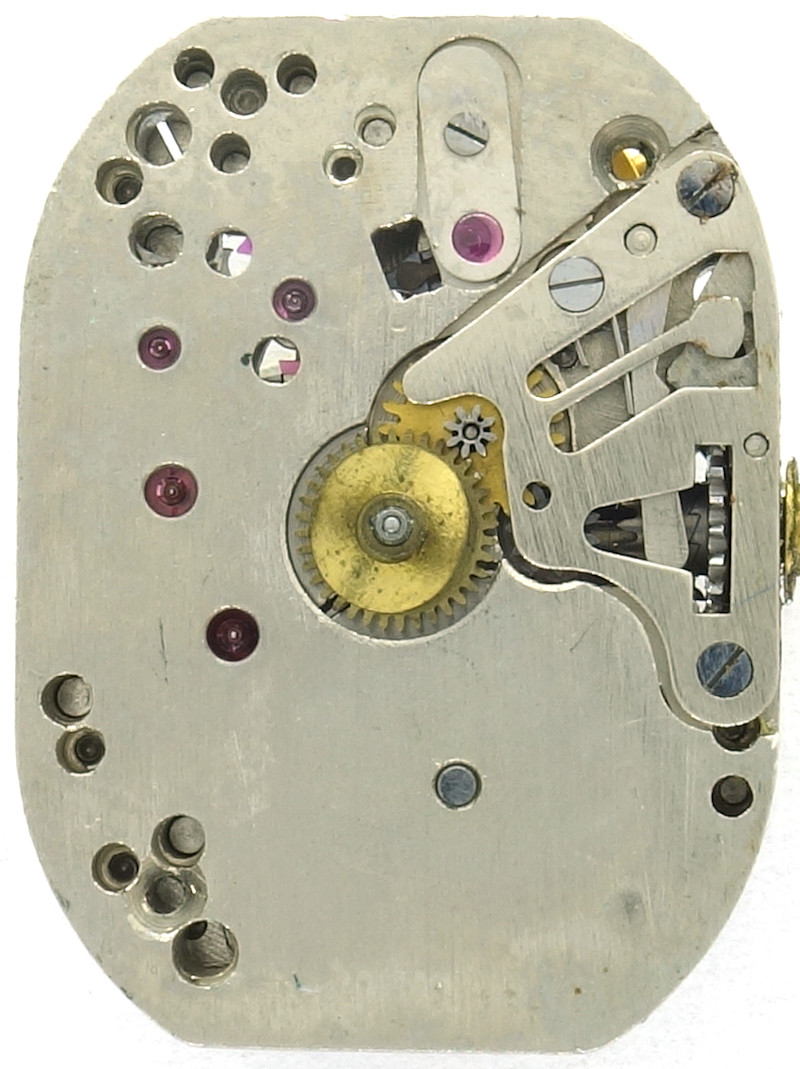

The dial side has the unique feature of a very specially shaped setting lever spring, which is screwed in three places and whose setting lever cannot be removed by unscrewing or pressing, but only by removing the setting lever spring itself.

Zaria 1800: Zaria 1800: Dial side

Zaria 1800: Dial side

The cap jewel plate for the dial-side balance bearing is clearly visible at 12 o’clock. This caliber does not have a shock protection, as indicated by the last two digits of the caliber number - “00” stands for a windup movement without shock protection and without a seconds indication.

Technical data

Manufacturer:Zaria
Caliber:1800
Size:6 1/4 x 8 1/4''' (measured: 14,0 x 18,4mm)
Height:3,75mm
A/h:21600
Number of jewels:16
Escapement:Pallet lever
Balance types: Glucydur screw balance (two legs)
Glucydur anular balance (two legs)
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:6 hole(s)
References: Flume: K3 80
Inventory number:23059

Usage gallery

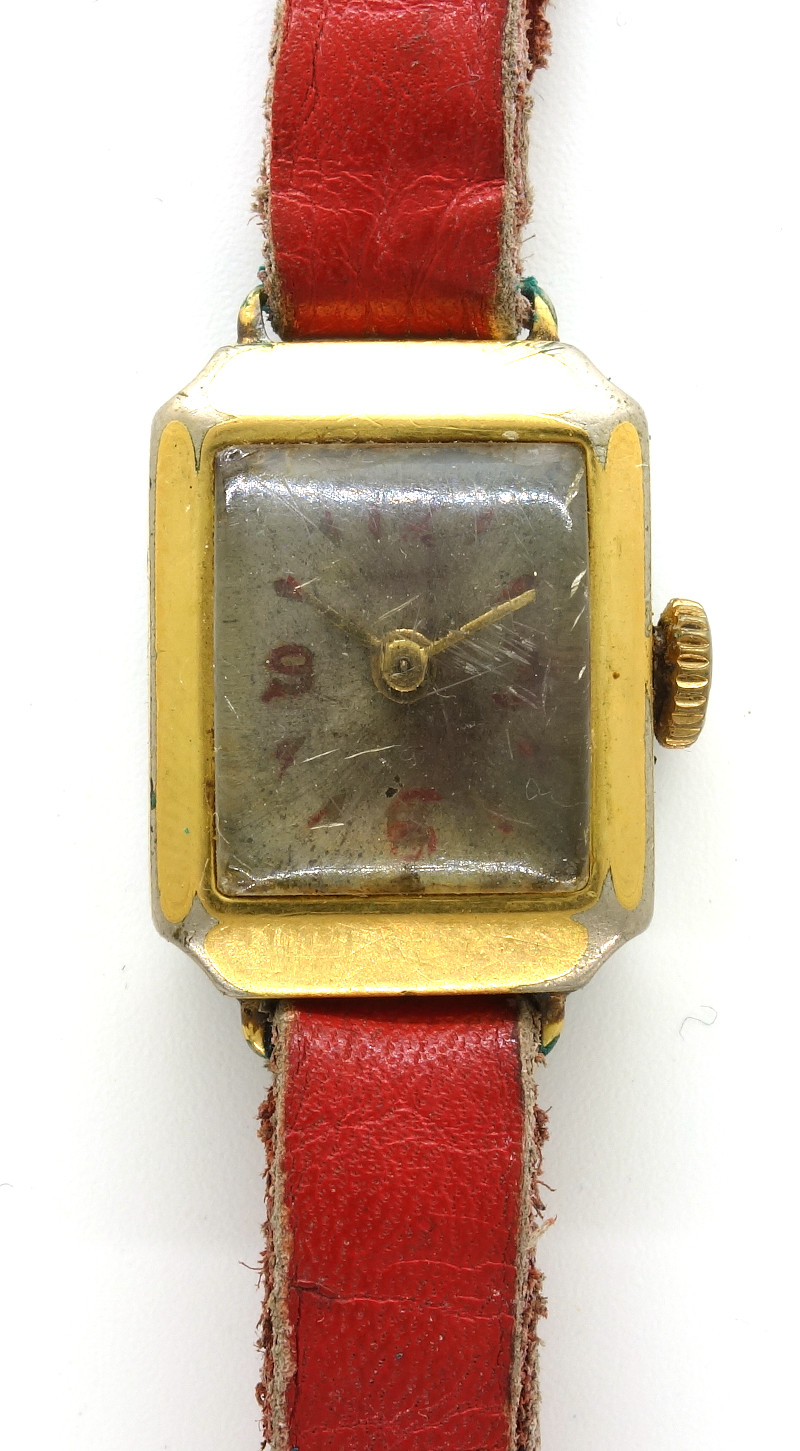

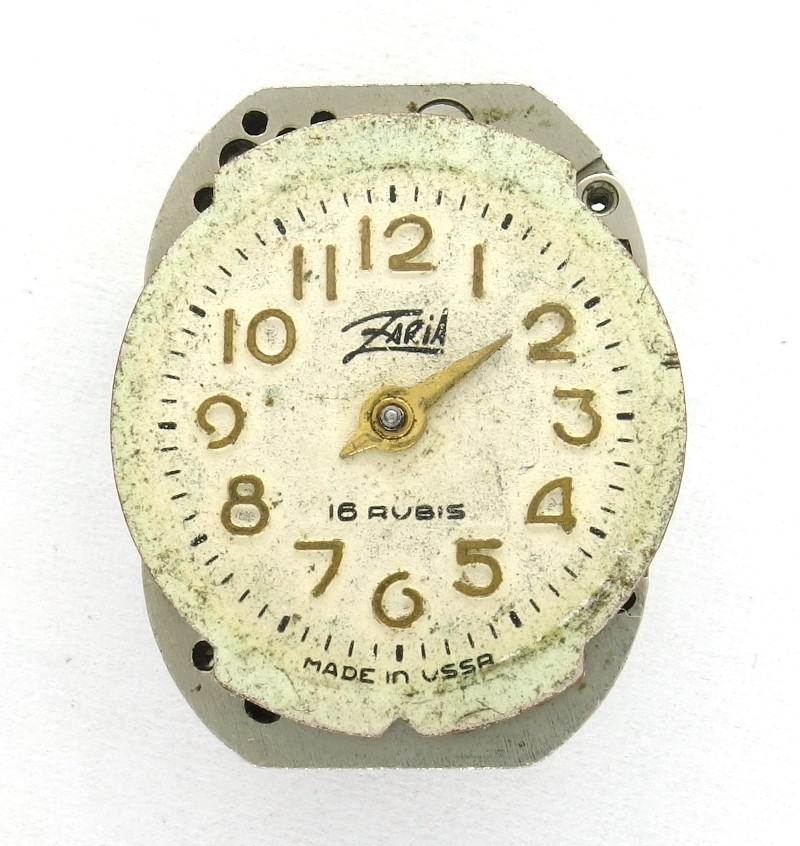

Zaria 1800: Zaria ladies' watch

Zaria ladies' watch

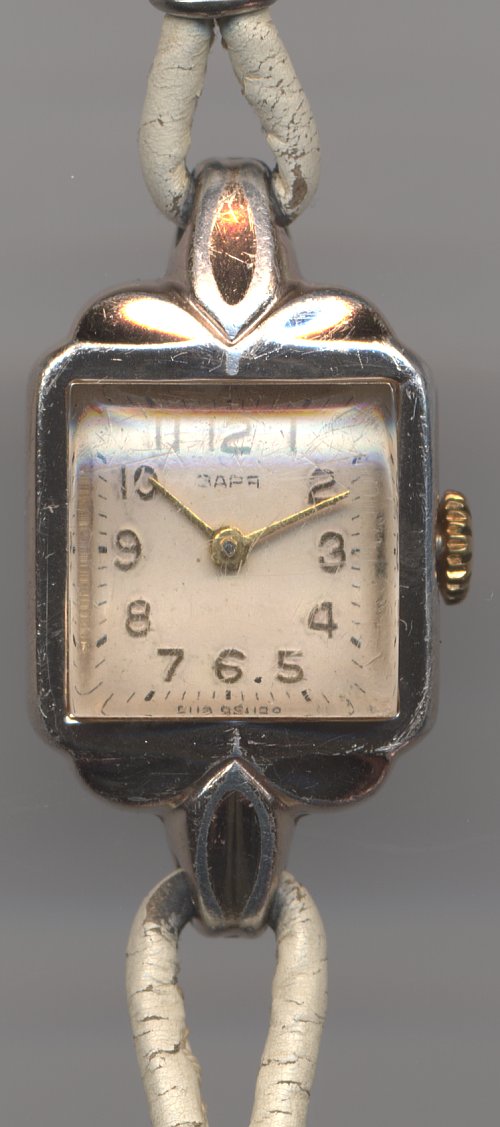

Zaria 1800: UMF Ruhla ladies' watch

UMF Ruhla ladies' watch

Zaria 1800: Zaria ladies' watch

Zaria ladies' watch

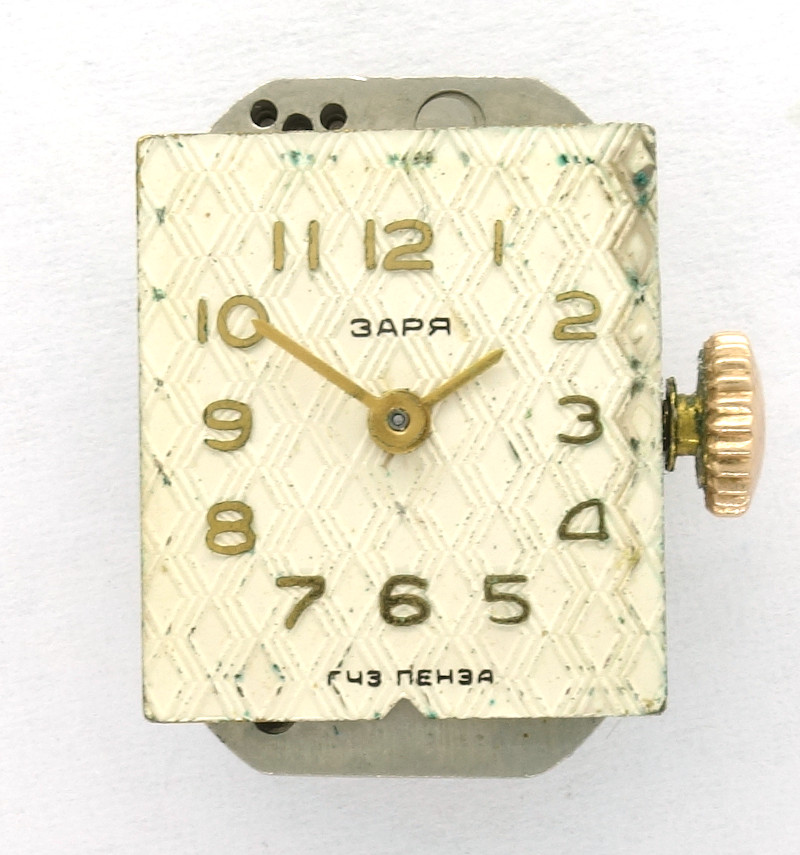

Zaria 1800: Zaria ladies' watch (case missing)

Zaria ladies' watch (case missing)

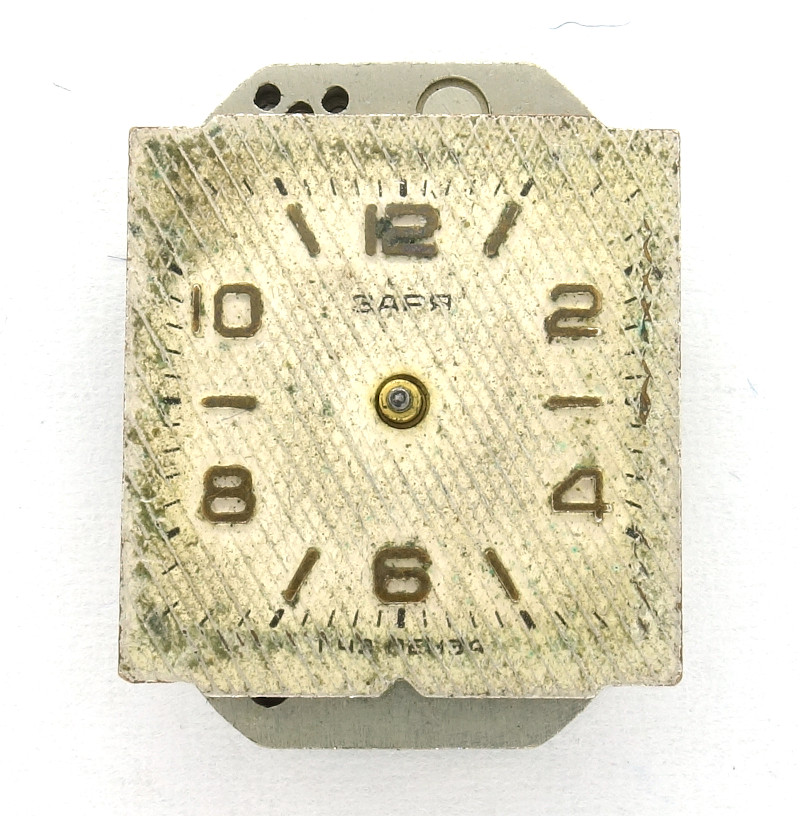

Zaria 1800: Zaria ladies' watch (case missing)

Zaria ladies' watch (case missing)

Zaria 1800: Zaria ladies' watch (case missing)

Zaria ladies' watch (case missing)

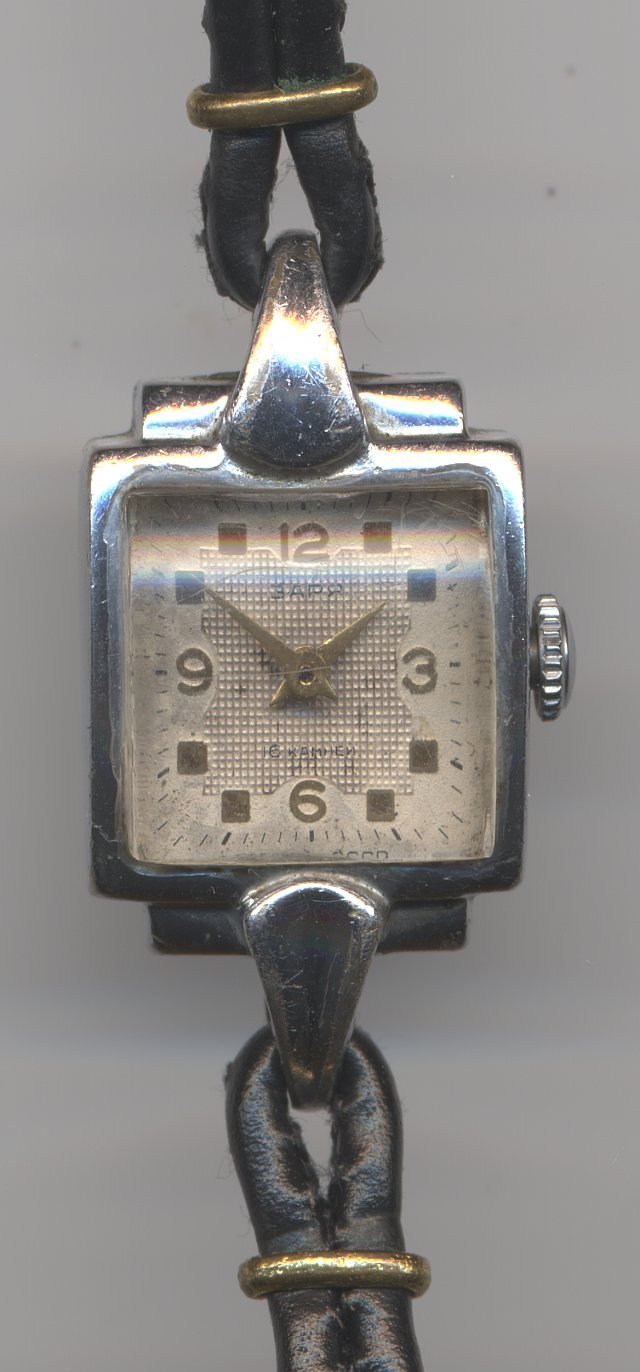

Zaria 1800: Zaria ladies' watch

Zaria ladies' watch

This movement was kindly donated by Jake R. Kaywell and Rolf without case, and by Rolf Josef M.Stadl as the ladies’ watch with the red strap.
