Zaria 2009.1A

Description

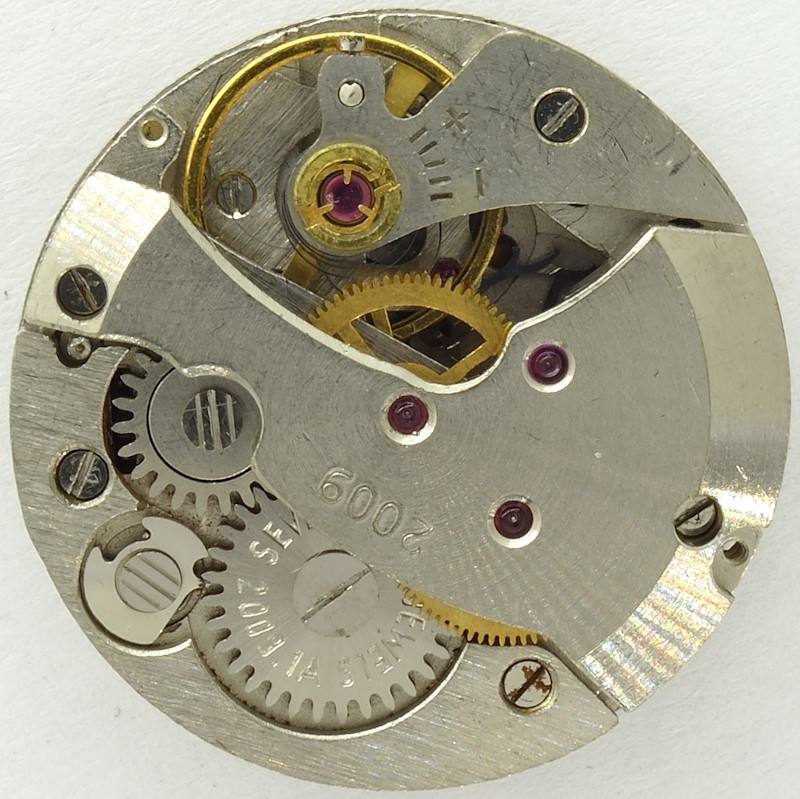

The improved version of the Zaria 2009 is the Zaria 2009.1A, an 8 3/4 ligne windup movement with center seconds indication for ladies' watches.

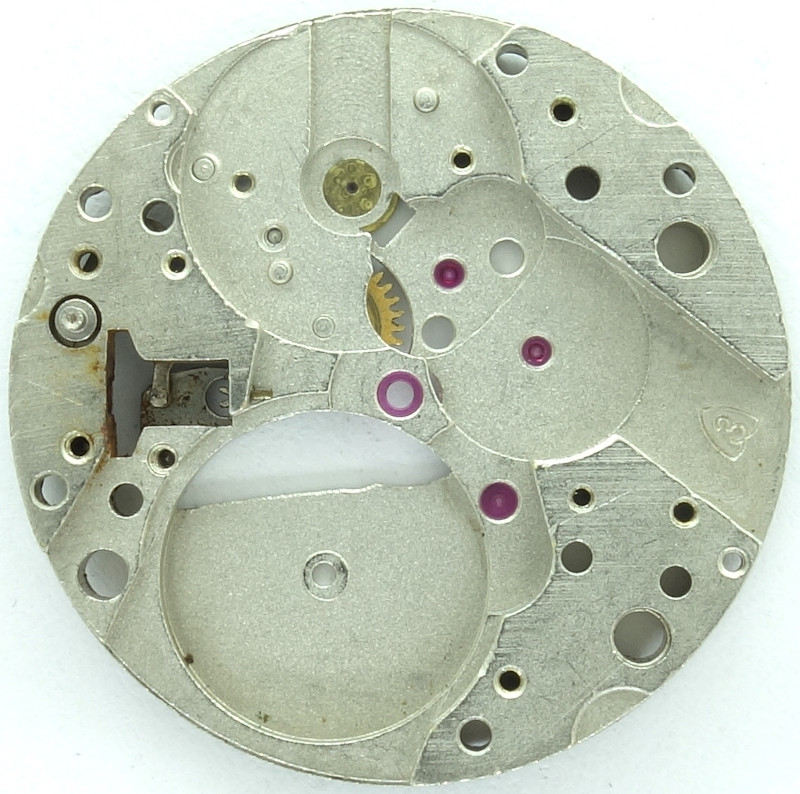

Zaria 2009.1A: base plate

base plate

Unlike on its predecessor, on the a bit rougher executed base plate, the minute wheel is ruby-beared, too.

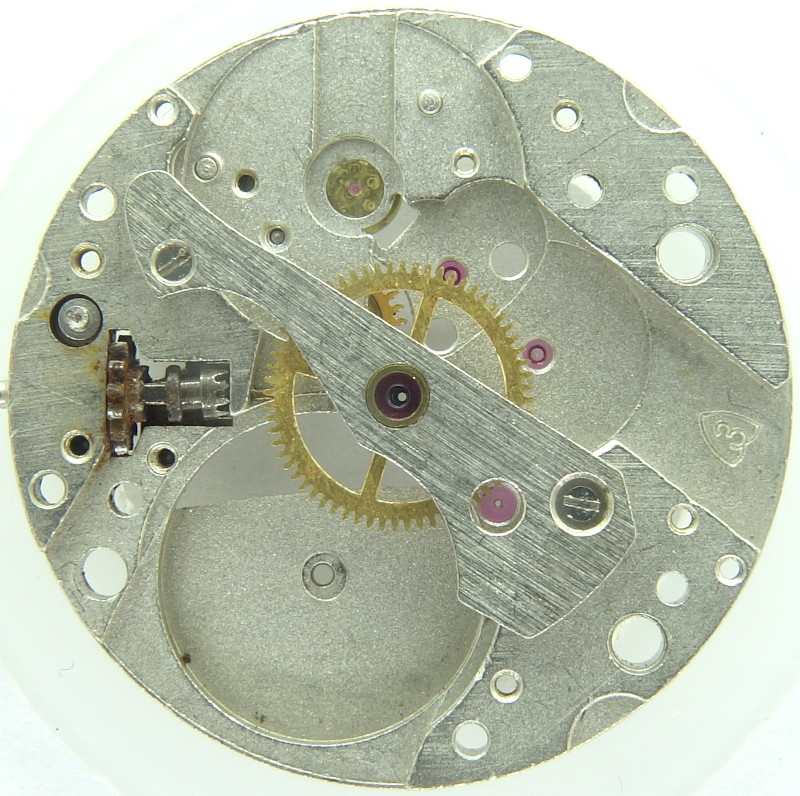

Zaria 2009.1A: base plate with minute wheel bridge

base plate with minute wheel bridge

The minute wheel is still beared under its own bridge, which is now decorated with cruder stripe decoration.

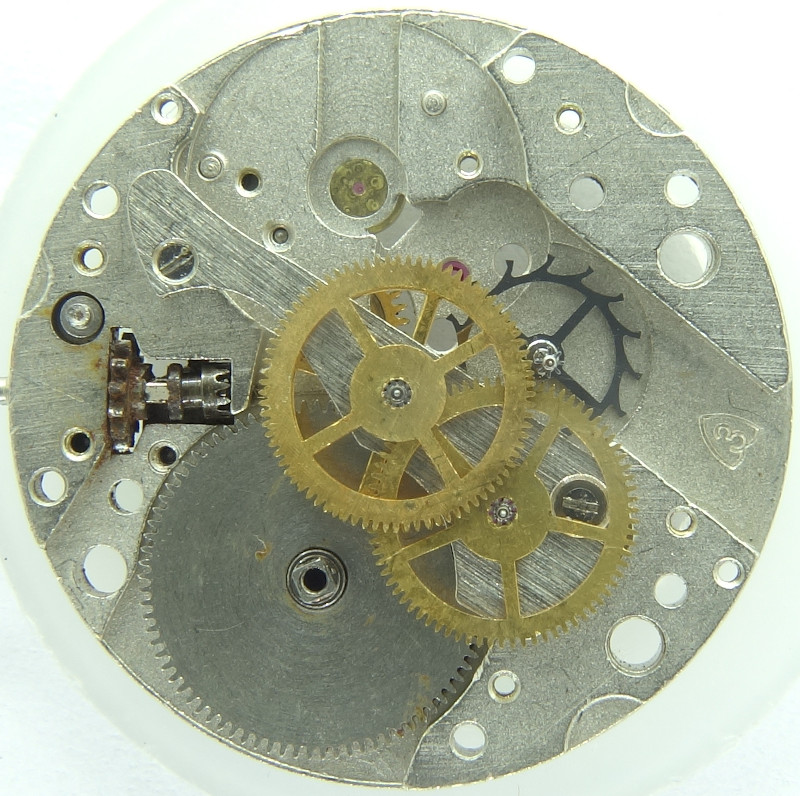

Zaria 2009.1A: gear train

gear train

The gear train remained the same and consists of mainspring barrel, directly driven center minute wheel, third, wheel, center seconds wheel and escape wheel for the pallet lever.

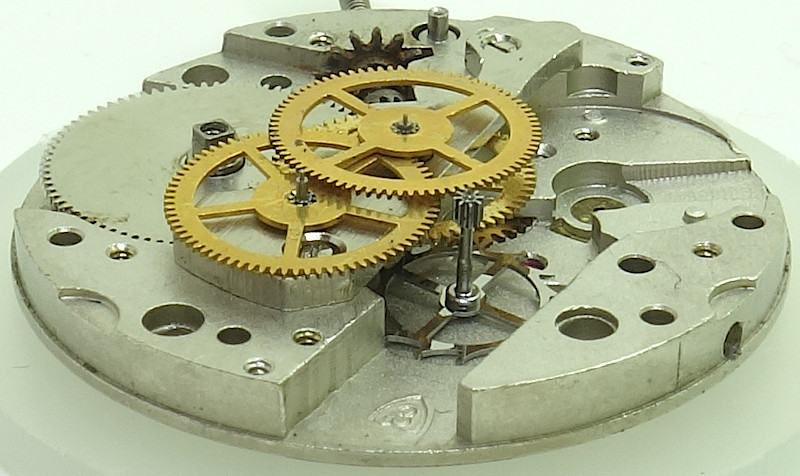

Zaria 2009.1A: side view of the gear train

side view of the gear train

The Zaria 2009.1A has got an anular balance, probably with three legs, which is beared in a pair of three-leg inhouse shock protections (on the specimen shown here, a wrong balance wheel and balance cock is installed!). To adjust the different height of this setup, below the balance cock, there’s a flat brass plate.

Zaria 2009.1A: balance spacer

balance spacer

The beating rate of the Zaria 2009.1A is 18000 A/h, and in contrast to its predecessor, the hairspring stud is moveable.

Zaria 2009.1A: Zaria 2009.1A: Dial side

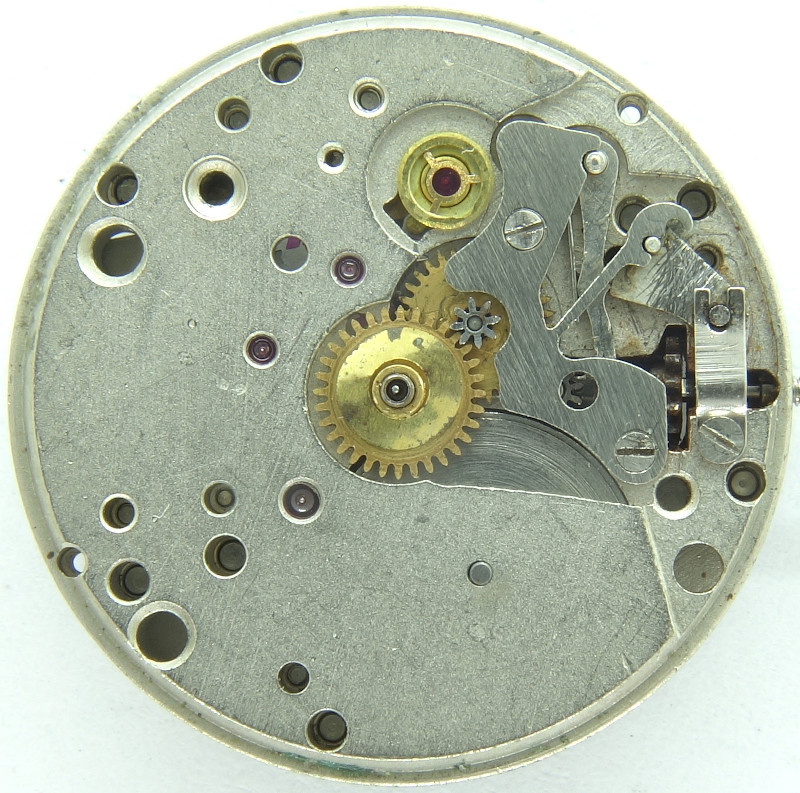

Zaria 2009.1A: Dial side

On the dial side, we have big differences to the Zaria 2009. It is now completely flat, and there’s a differently shaped setting lever spring used.

Technical data

Manufacturer:Zaria
Caliber:2009.1A
Size:8 3/4''' (measured: 20,0mm)
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur anular balance (three legs)
Shock protection(s): 3 legs (generic)
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
Attachment of setting lever:plugged
Features:
  • SCD (direct center seconds)
Mentioning in literature (years): 1983
Inventory number:23034

Usage gallery

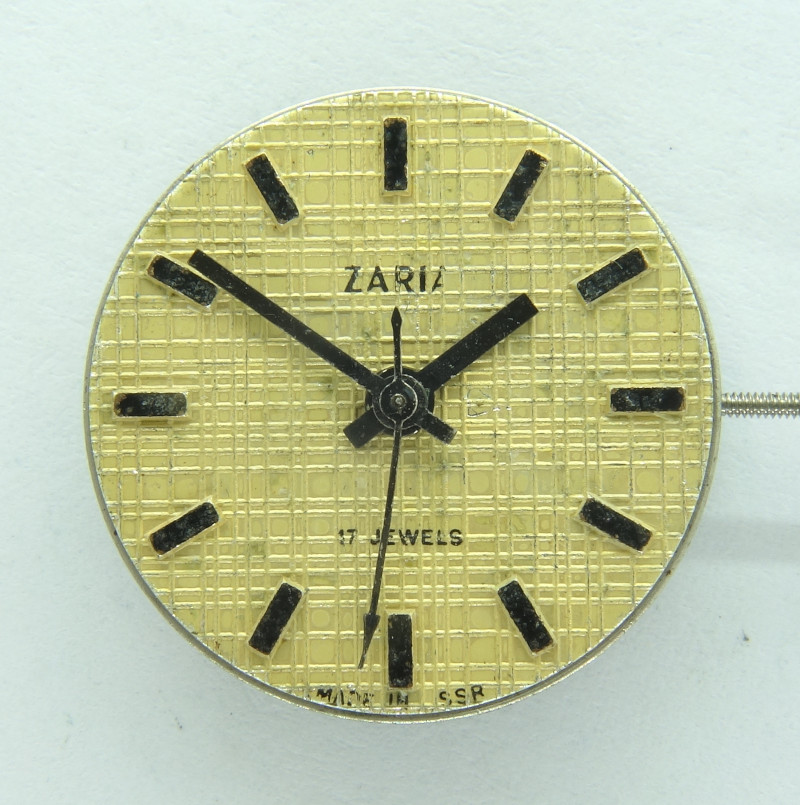

Zaria 2009.1A: Zaria ladies' watch  (case missing)

Zaria ladies' watch (case missing)

This movement and watch is a kind donation from Jake R. Kaywell to the movement archive. Thank you very much for your great support!
