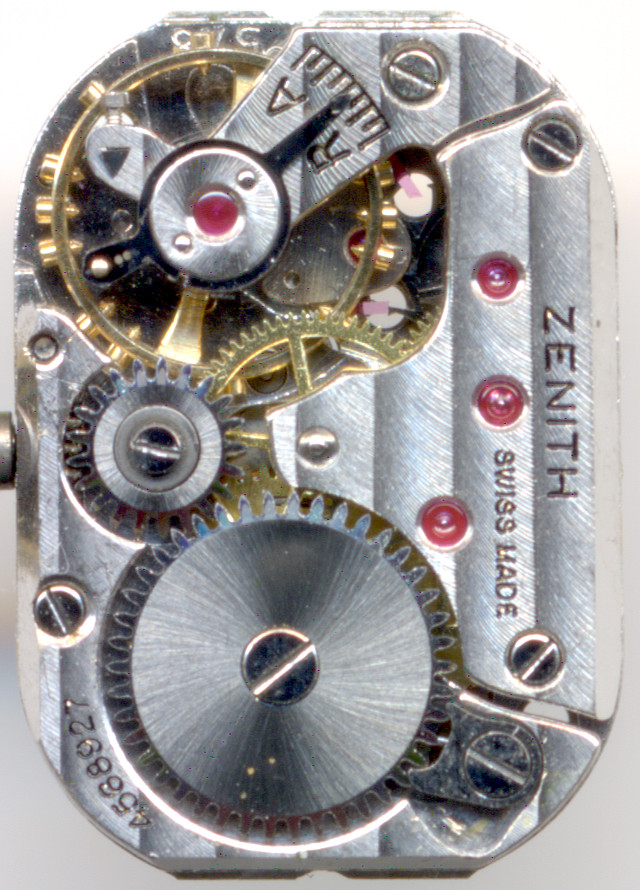

Zenith 57.8

Description

The tiny ladies' watch form movement Zenith 57.8 was released in the late 1940ies in its predecessor version 57 (still with 18000 A/h) and was then relaunched in the 1950ies with the new beating rate of six half-beats per second.

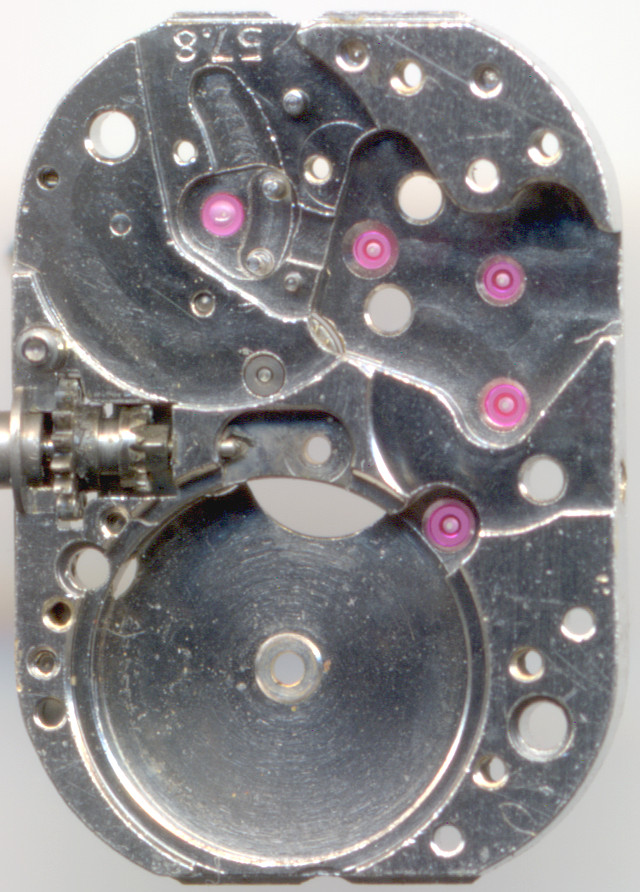

Zenith 57.8: base plate

base plate

The movement is a standard construction and still uses only 15 jewels, since at that time, it was not usual to bear the minute wheel in rubies.

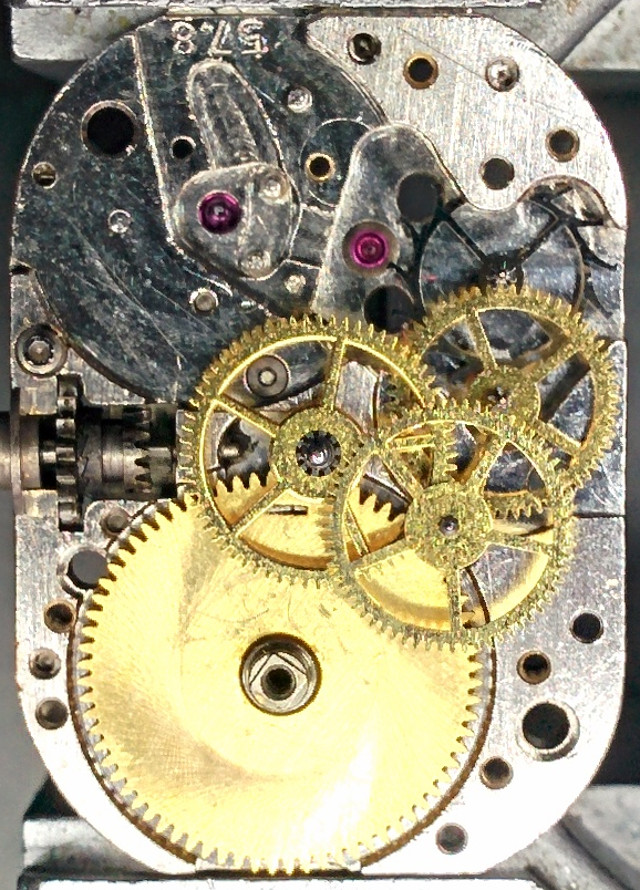

Zenith 57.8: gear train

gear train

As common on form movements, the mainspring barrel uses almost half of the available space and so ensures a relatively long power reserve and a constant, hopefully low, deviation rate all over the day.

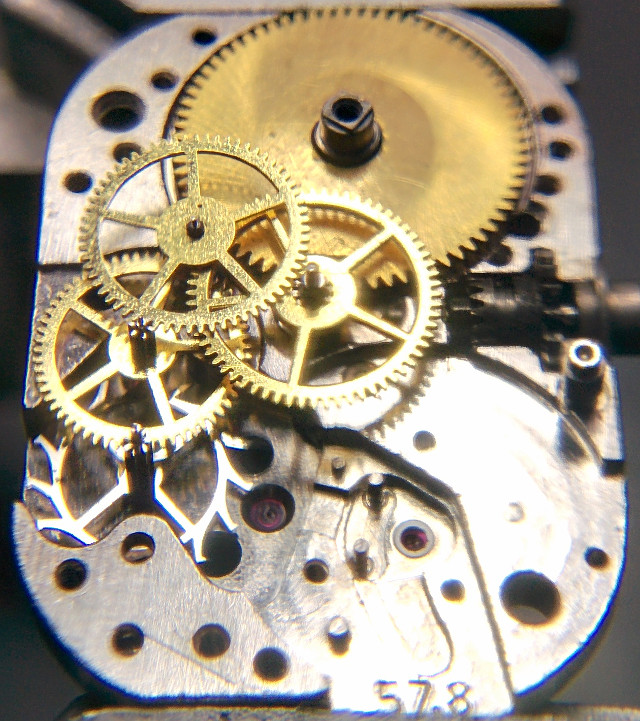

Zenith 57.8: side view of the gear train

side view of the gear train

The beautiful golden toned Glucydur screw balance in not yet shock protected, but already beats with 21600 A/h, which is pretty unusual for such an old and time movement. And were also not many movement swith screw balance available, which had a beating rate of more than 18000 A/h.

As excapement, there’s the conventional swiss pallet lever escapement.

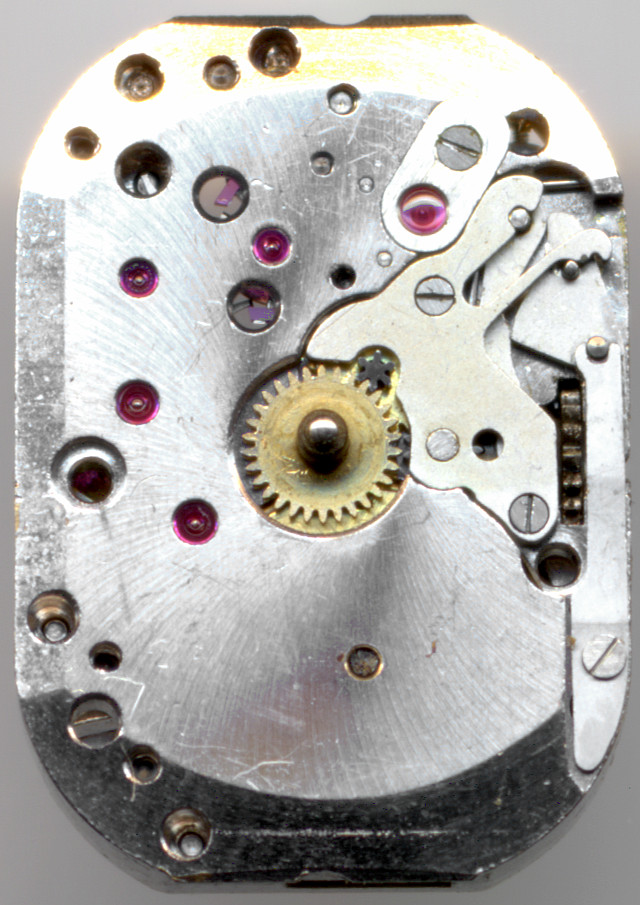

Zenith 57.8: Zenith 57.8 dial side

Zenith 57.8 dial side

The decorations can not only be found on the movement side, but in reduced amount also on the dial side. Here, you can also see the yoke winding system.

Technical data

Manufacturer:Zenith
Caliber:57.8
Size:5''' (measured: 11.5 x 16.0mm)
A/h:21600
Number of jewels:15
Escapement:Pallet lever
Balance types: Glucydur screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
References: Flume: 1949 152

Usage gallery

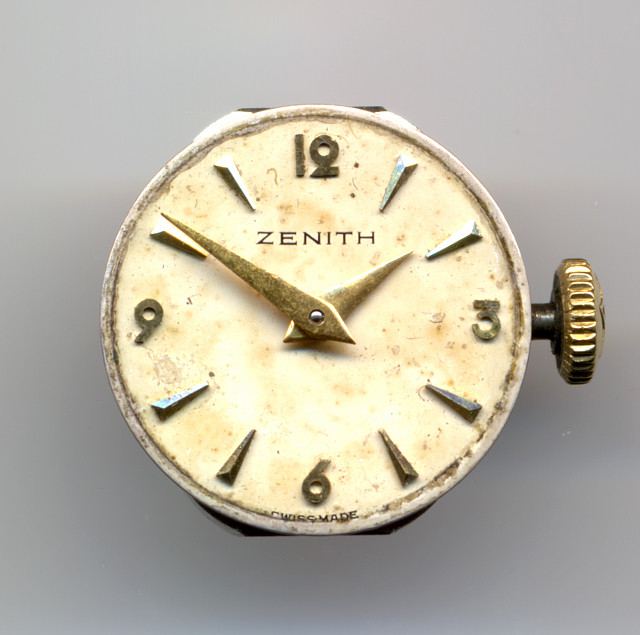

Zenith 57.8: Zenith ladies' watch  (only dial)

Zenith ladies' watch (only dial)
