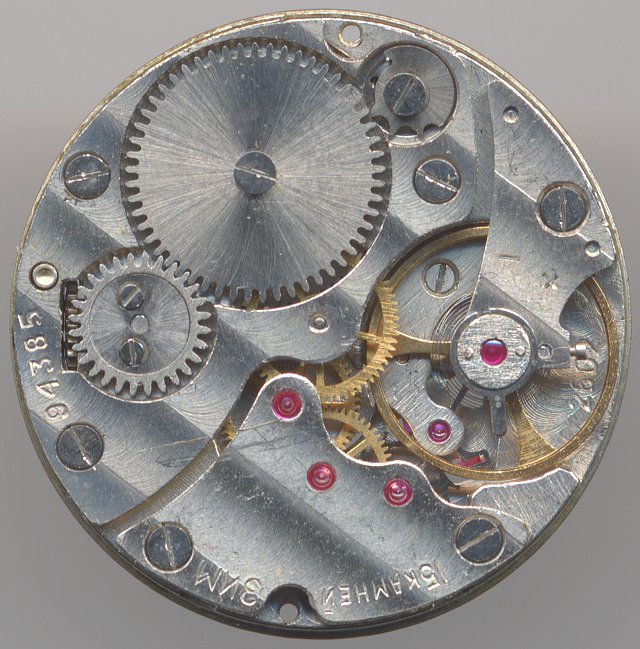

ZIM 2602

ZIM 2602 | 17jewels.info - The Movement Archive

ZIM 2602


This movement seems to originate from the 1930ies. It does not use a shock protection, but has got a small decentral second hand, and the shapes of the plates remind of early times.

Technically, this movement is not modern at all, except the screw-less glucydur balance. But the hairspring is bent in a Breguet-Shape, which is normally only used in very expensive watches. The reason is, that this movement is a constructed like the french LIP R-26.

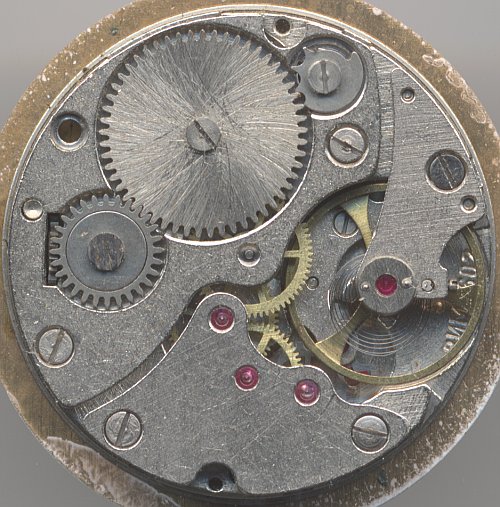

ZIM 2602: modern version

modern version

This movement, called “Pobjeda”, was produced by a number of russian watch factories, such as the second Moscow watch factory, which called it Slava 2602.

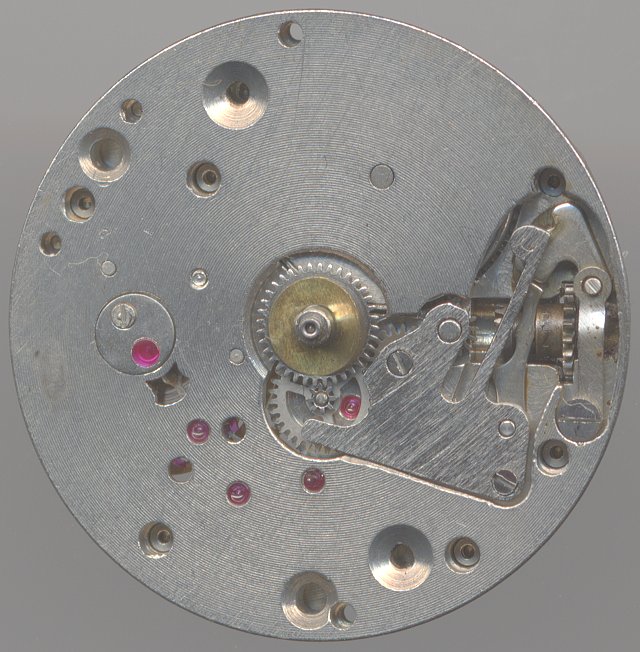

ZIM 2602: ZIM 2602 dial side

ZIM 2602 dial side

Technical data

Caliber base:ZIM 2602
Size:11 1/2'''
Number of jewels:15
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Breguet type hairspring, hairspring key
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel, mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
  • s (decentral seconds)

Usage gallery

ZIM 2602: ZIM gents watch

ZIM gents watch

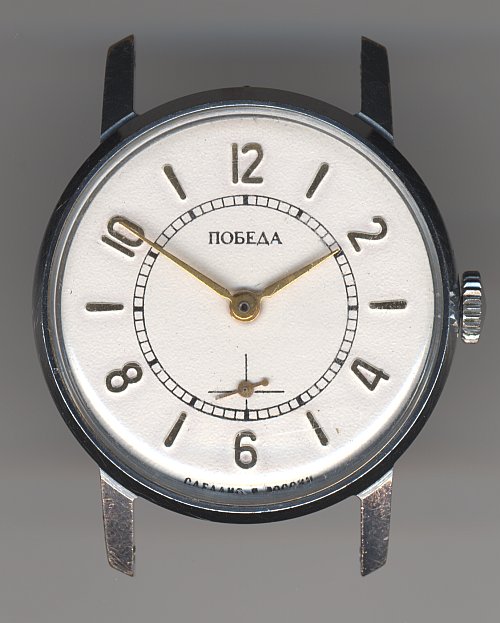

ZIM 2602: Pobeda gents watch

Pobeda gents watch
