Unfortunately, this 18 1/2 ligne stopwatch caliber is unmarked, but with a very high certaincy it originates from the swiss manufacturer Berna Watch SA from St. Imier, not least beause of its marked swiss patent number 74234 , which relates to starting and blocking the balance wheel.

All functions are triggered by the crown: Start - Stopp - Reset. Additionally, the movement is wound by the crown, too.

The speciality of this movement is, that its balance wheel oscillates with no less than 360.000 A/h, which allows a measuring resolution of 1/100 second!

Berna ?: base plate

base plate

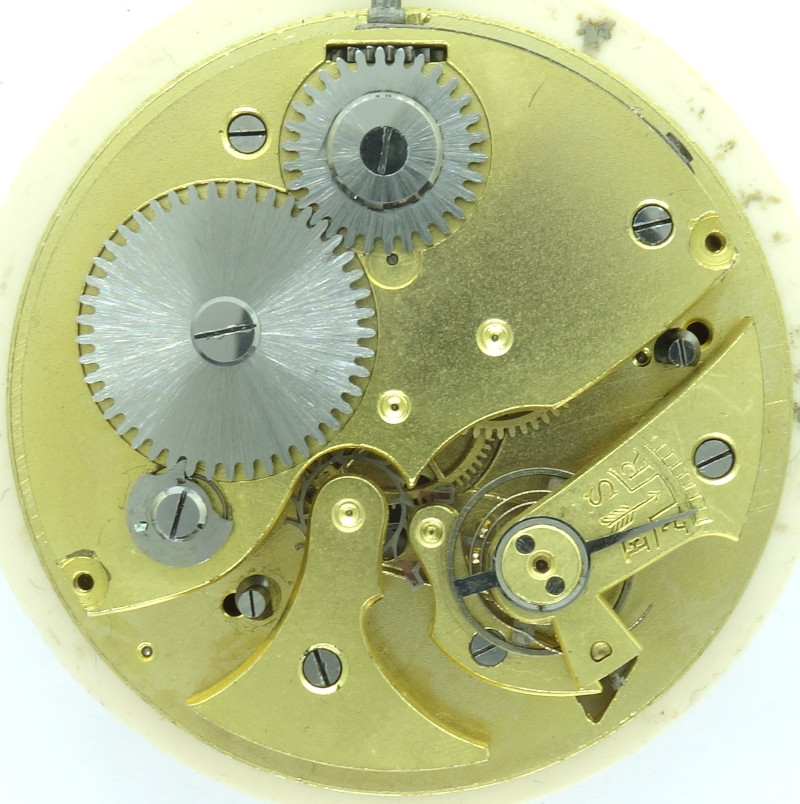

Besides the lever pallets, the balance wheel bearings and the ellipse are no jewels used. For a stopwatch, which is only used for short running times, this is sufficient.

Berna ?: gear train

gear train

Since the movement is an enourmous fast beater, the gear train is made accordingly:

The mainspring barrel drives the decentral seconds(!) wheel at 12 o’clock, which makes one turn every 90 seconds. It is followed by a reduction wheel the central 1/100 seconds wheel, which takes three seconds for a revoltion.

Finally, the steel escape wheel is used, which is controlled by the swiss pallet lever escapement.

Berna ?: side view of the gear train

side view of the gear train

As balance wheel, a screw-less, two-leg anular balance is used, which has got a very stiff balance wheel and is deflected only in a small angle.

The precise frequency can be adjusted with a long regulator arm, assumed, you have a timegrapher which can measure 1/100 seconds acoustically.

Berna ?: Berna ?: Dial side

Berna ?: Dial side

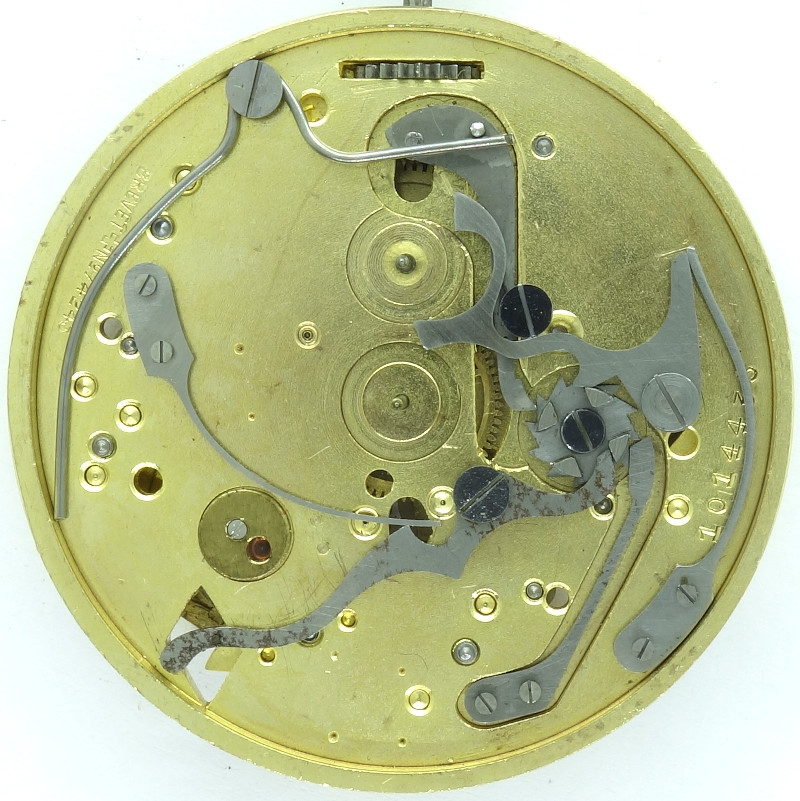

The whole stopwatch mechanism is located on the dial side with starting and breaking lever, with the reset lever, the switching wheel and the switching lever.

All springs used here are very strong, you can see this on the strong screws and on the two screws, which are used for their fixation.

Technical data

Size:18 1/2''' (measured: 41,9mm)
Number of jewels:3
Escapement:Pallet lever
Balance types: monometallic anular balance (two legs)
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
  • lever
  • escape wheel
  • center second pinion
  • third wheel
  • seconds wheel
Construction type:solid construction
  • CHR (chronographe)
Inventory number:22033

Usage gallery

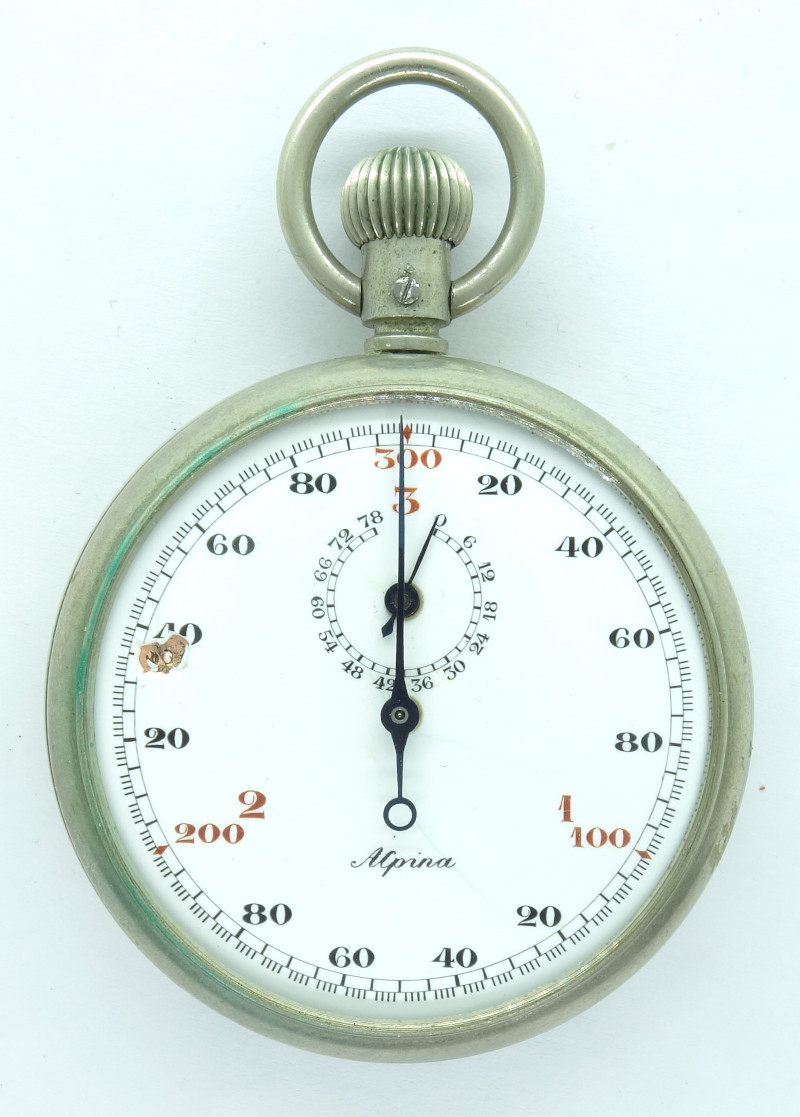

Berna ?: Alpina stopwatch with 1/100 seconds resolution

Alpina stopwatch with 1/100 seconds resolution
