Buckeridge 19'''


A pocket watch movement, probably from the mid 19th century and of English origin is the 19 ligne movement shown here, signed by its watchmaker “Buckeridge”, and also with the name “Chippenhalm Calne”, a long-established jeweller.

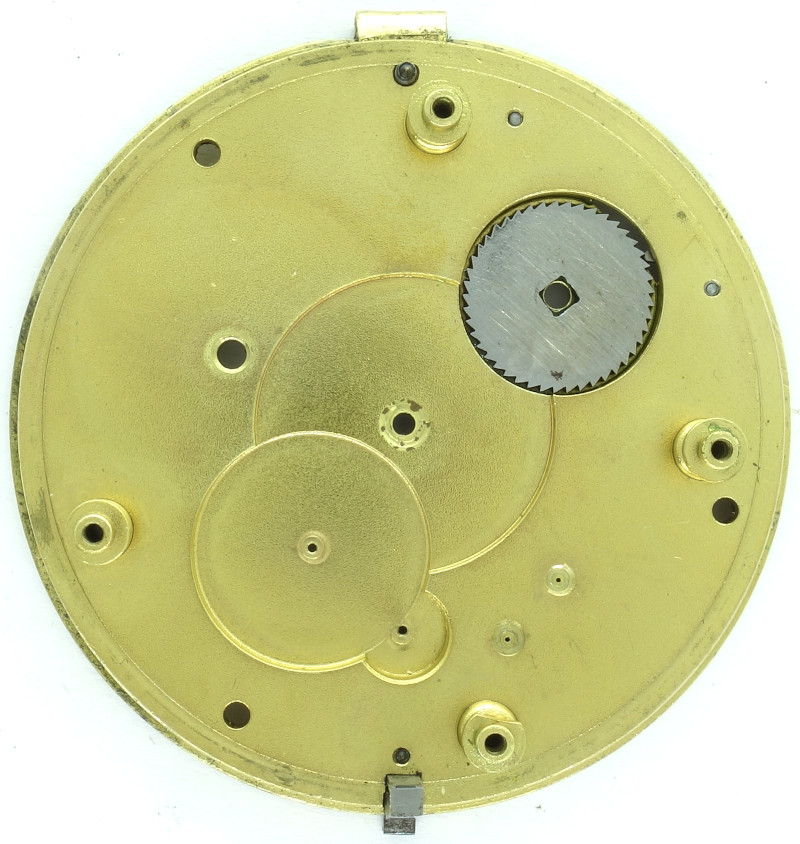

Buckeridge 19''': base plate

base plate

Except for the balance wheel bearing, this pillar movement is free from bearing rubies.

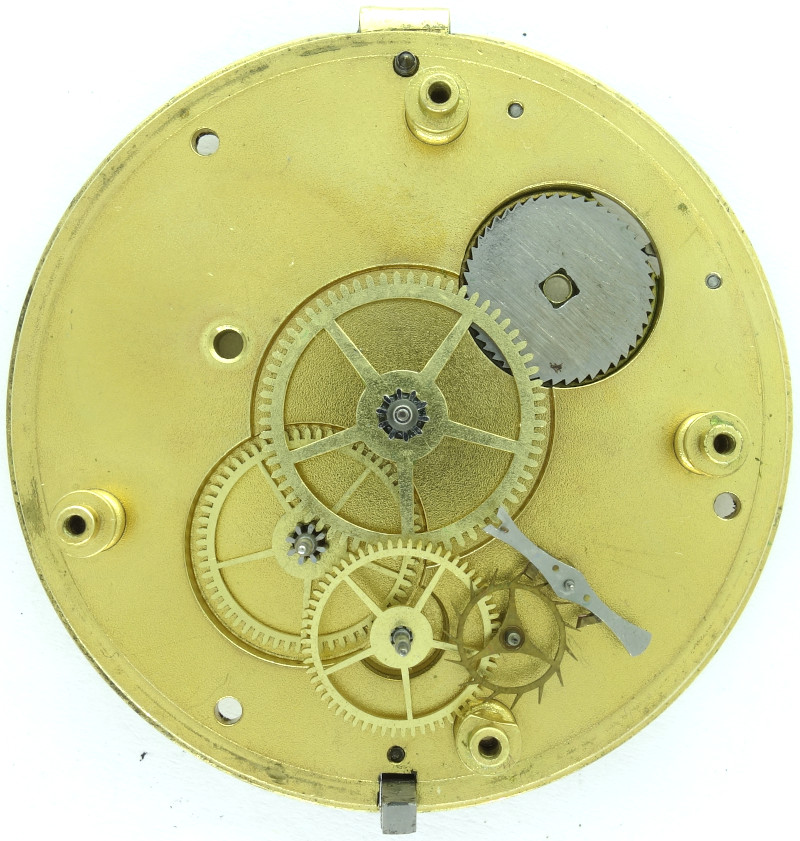

Buckeridge 19''': gear train, yet incomplete

gear train, yet incomplete

As escapement, a sharp tooth lever escapement is used, which is typical for England in the 19th century.

Buckeridge 19''': lever


On this, the pallets are recessed into the lever and the teeth of the escape wheel are, as the name indicates, sharp.

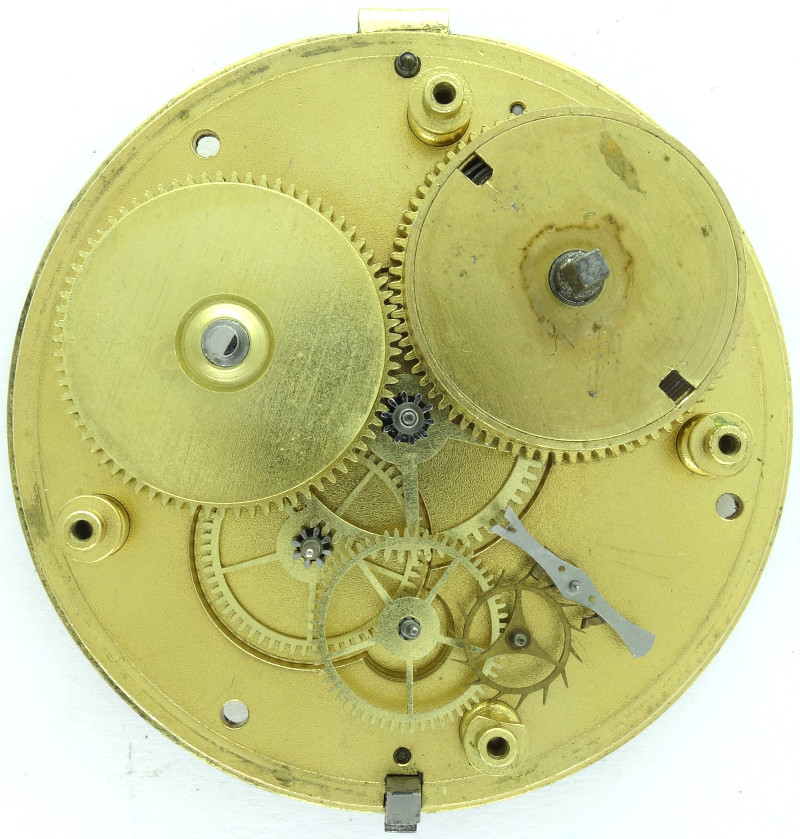

Buckeridge 19''': gear train

gear train

The gear train construction is pretty odd: It starts with a massive mainspring barrel, whose ratchet is located on the dial side, and which is wound by a key. Following are a pure transmission wheel of the same size, the center minute wheel, third wheel, decentral seconds wheel and escape wheel.

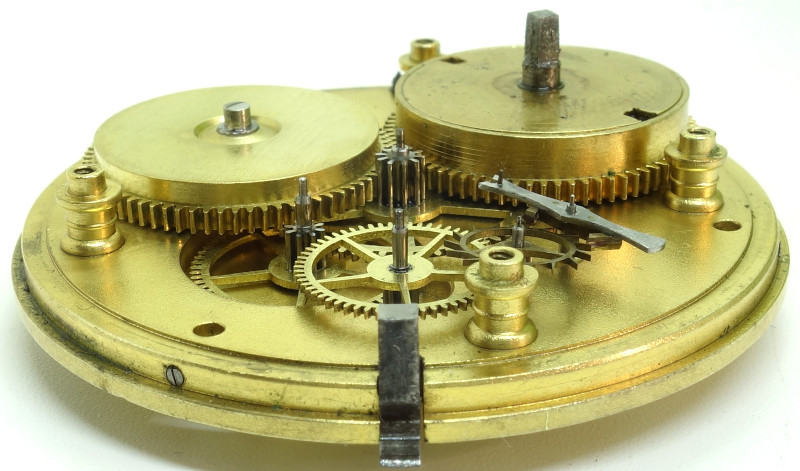

Buckeridge 19''': side view of the gear train

side view of the gear train

The role of the massive transmission wheel is not fully clear, maybe it was used to protect the center minute wheel in case of a mainspring breakage, where the instant unloading would apply too much force onto the center minute wheel.

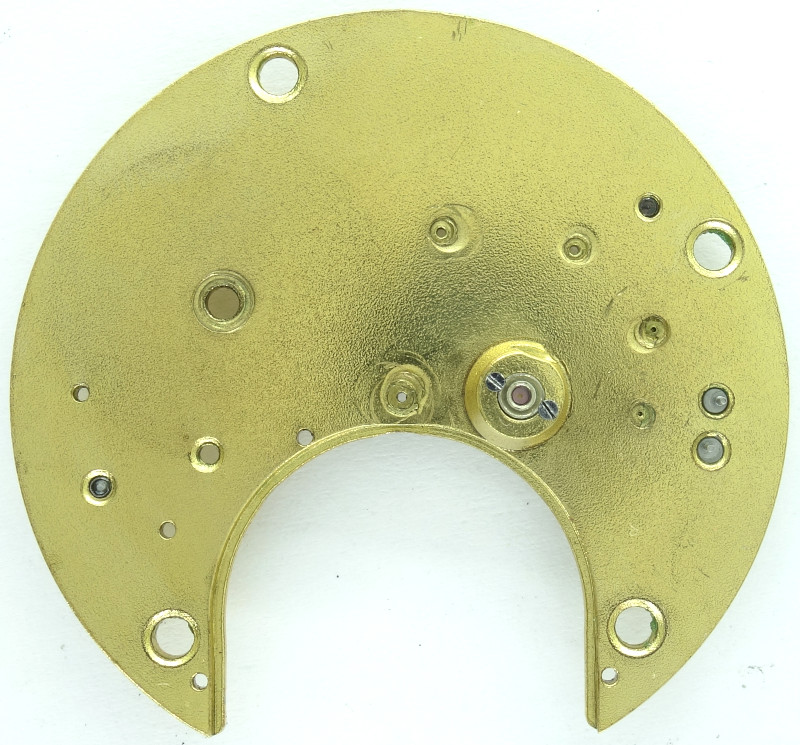

Buckeridge 19''': inside the gear train plate

inside the gear train plate

The balance wheel is beared in a cylinder, which is mounted into the gear train plate. The balance staff itself runs in two ruby bearings, both covered with a cap jewel.

A Breguet hairspring is used, which, in combination with a long regulator arm, should increase the precision.

Buckeridge 19''': dial side

dial side

On the dial side, you see the ratchet. The time is also set with a key; on the cannon pinion, you can see the square, onto which the key is put.

Technical data

Size:19''' (measured: 43,4mm)
Number of jewels:6
Escapement:Sharp tooth lever
Balance types: bimetallic screw balance (two legs)
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel, transmission wheel
  • mainspring barrel
Construction type:pillar construction
Winding mechanism:key winding system
  • s (decentral seconds)
Inventory number:23017

Usage gallery

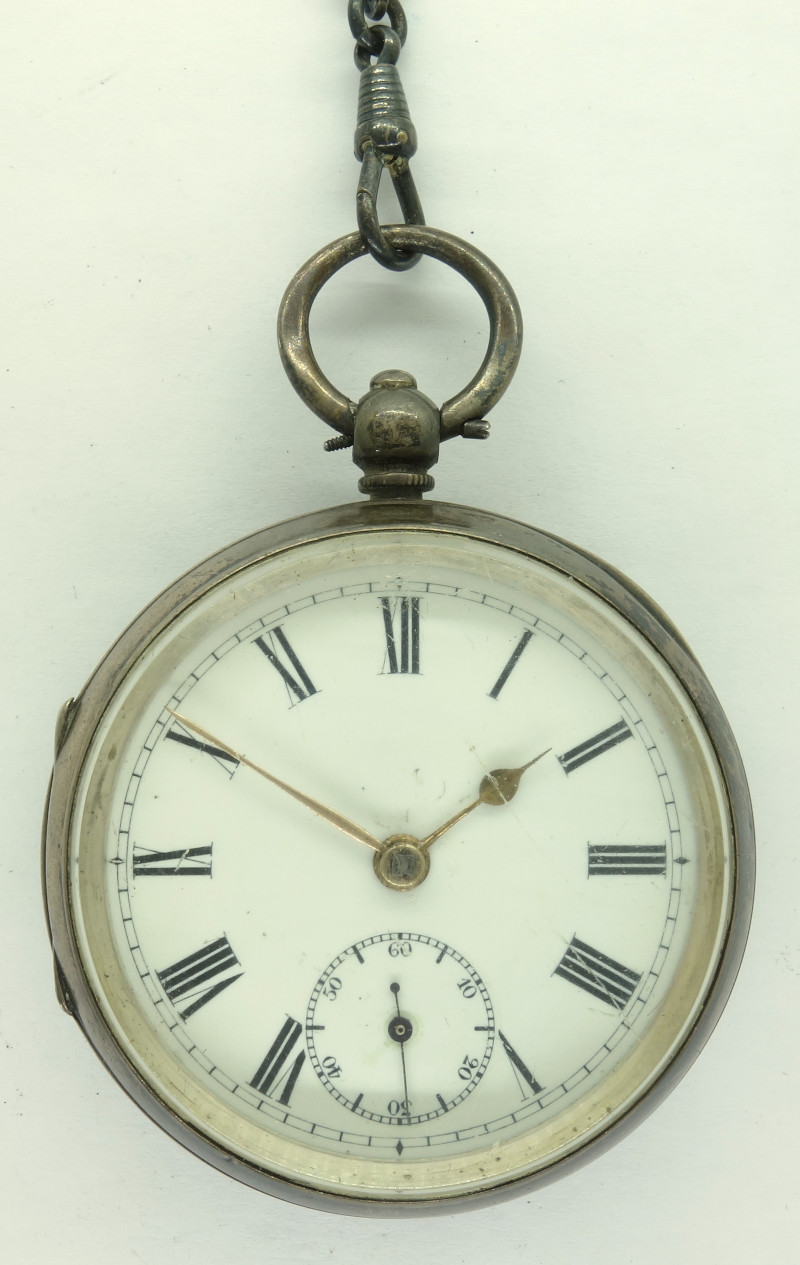

Buckeridge 19''': Pocket watch from Walter Buckeridge

Pocket watch from Walter Buckeridge

This movement and watch is a kind donation from the Ristow family to the movement archive. Thank you very much for your great support!
