Description

One of the smallest russian movements is the Chaika 1600, a round movement with a diameter of only 16mm, and hence smaller than an one Eurocent coin. With its strongly slanted and angled bridges it is visually very appealing.

Its first version was probably released in the 1960ies.

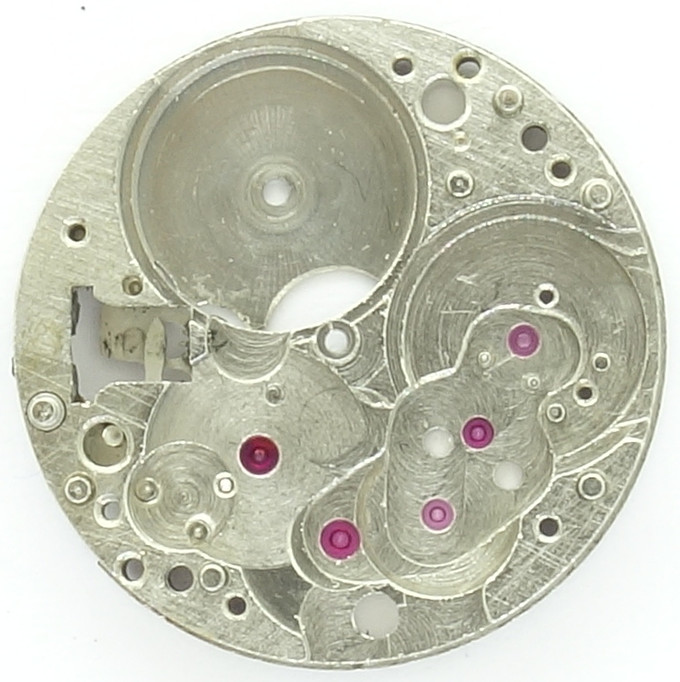

base plate

base plate

In terms of quality, it doesn’t need to hide itself. All bearings contains rubies, and the minute wheel bearing at least on the movement side. That’s a pretty good standard for a “better” movement.

inside gearing crown wheel

inside gearing crown wheel

The very small diameter requires, that the winding pinion is housed not at the outer edge of the base plate but a little more inside for stability reasons. But that’s too far inside for the crown wheel and so, the crown wheel has got on its inner side a an additional gearing, which is in engagement with the winding pinion.

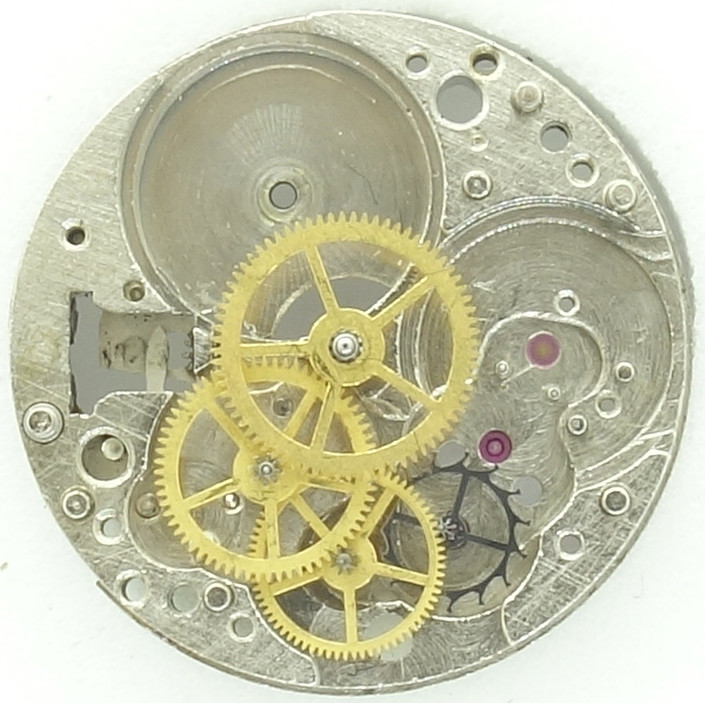

gear train

gear train

The Chaika 1600 uses the classical grar train with a relatively large mainspring barrel, followed by the directly driven center minute wheel, third wheel, fourth wheel and steel escape wheel.

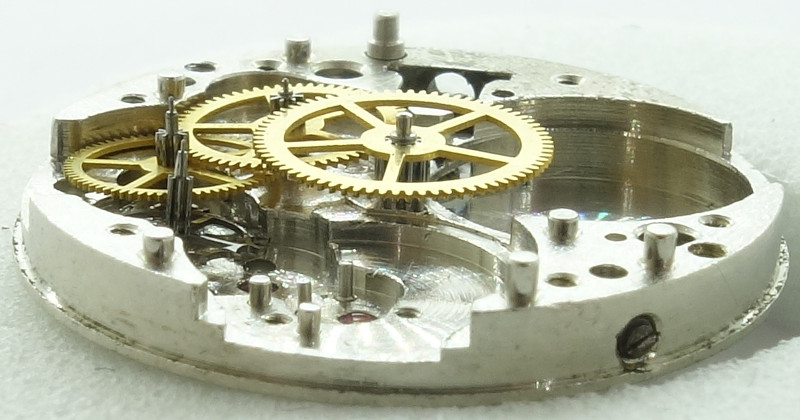

side view of the gear train

side view of the gear train

The golden colored screw balance, whose screws are evenly spaced and cannot be adjusted at all, beats already with 21600 A/h and regulates a classical pallet lever movement after swiss origin.

It is not shock protected, the variant with shock protection is the caliber 1601 / 1601a.

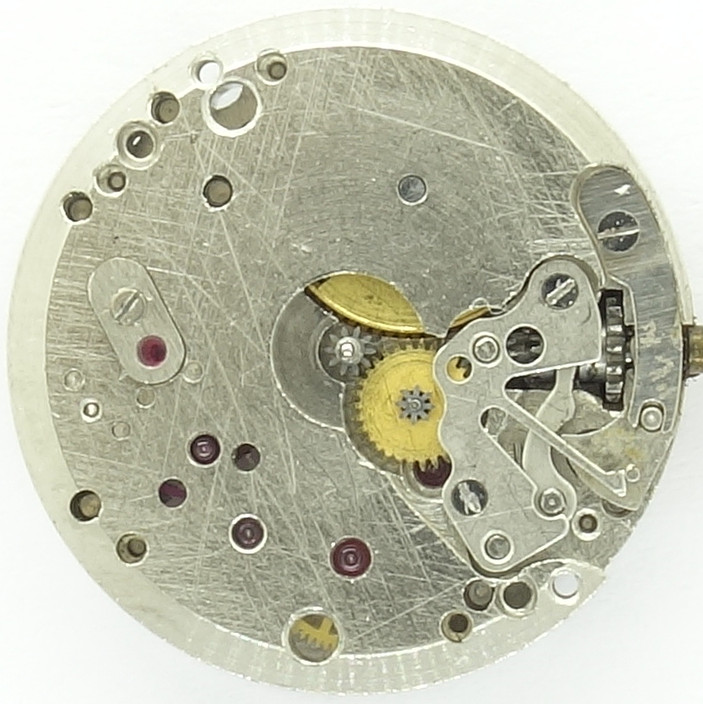

Chaika 1600: Dial side

Chaika 1600: Dial side

On the dial side, there’s the yoke winding system with its setting lever spring and the setting lever “screw”, held by a thick spring.

Besides that, the dial side is pretty crude, but that’s without any effects for the functionality.

Technical data

Manufacturer:Chaika
Caliber:1600
Number of jewels:16
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, third wheel, large driving wheel
  • center minute wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
Functions:hour, minute
A/h:21600
Size:7''' (measured: 16,0mm)
Literature: Flume: K2 -

Usage gallery

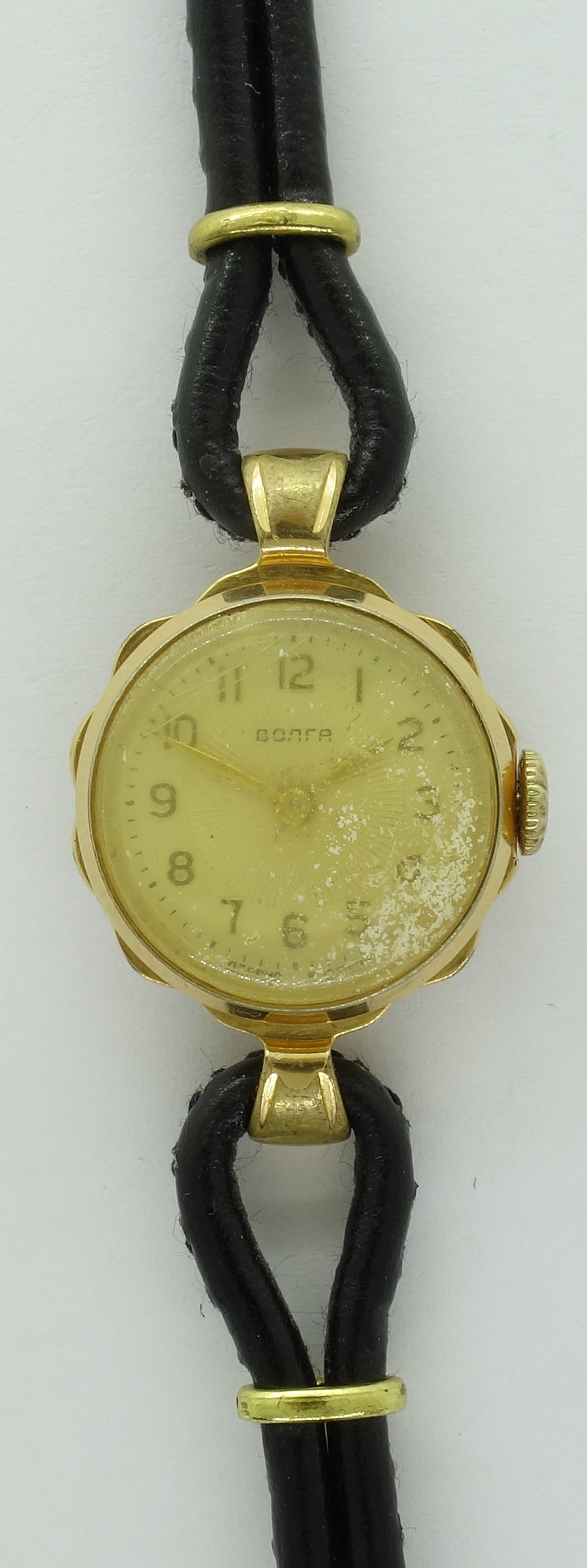

Volga ladies' watch

Volga ladies' watch

This movement is a kind donation to the movement archive. Thanks a lot for the great support!
