Förster 60


Förster 60 | 17jewels.info - The Movement Archive

Förster 60

Description

From Förster, their selfwinding movements and also a few windup movements for gents watches are well known, but for windup ladies' watches, Förster only played a minor role. Hence the Förster 60, a 5 1/4 ligne form movement for ladies watches, available in the early 1960s, is difficult to find, maybe due to the fact, that at that time, tonneau-shaped movements were yet much more popular.

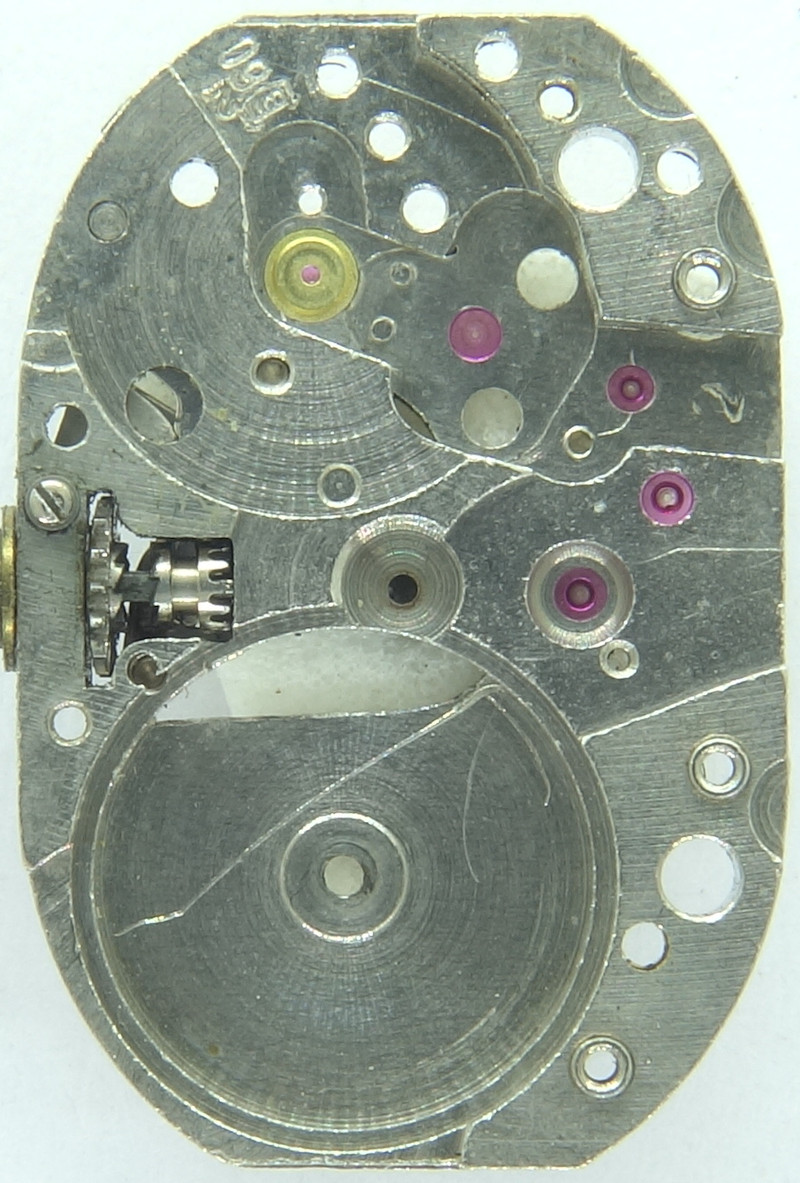

Förster 60: base plate

base plate

It is really well executed, and of course all bearings contain rubies, even for the minute wheel (but only on the movement side).

Förster 60: gear train

gear train

We have the classical gear train here with directly driven center minute wheel, followed by tiny third and seconds wheels and finally the larger, very filigree escape wheel.

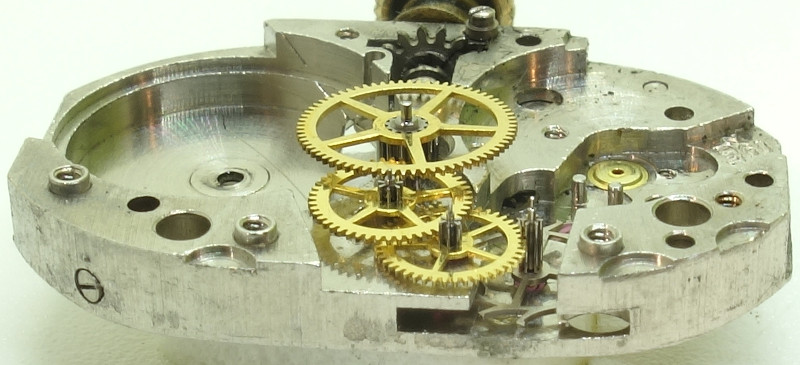

Förster 60: side view of the gear train

side view of the gear train

The two-leg anular balance without screws is already very modern. It is beared in two high quality KIF Flector shock protections and regulates a swiss pallet lever escapement.

The beat rate is still slow with 18000 A/h, and can be adjusted at the hairspring key only.

Förster 60: Förster 60: Dial side

Förster 60: Dial side

Of course the Förster 60 uses a yoke winding system, which can be seen very well, and also its uniquely shaped setting lever spring and the KIF Flector bearing.

On top and bottom of the long movement, the plate is slanted to reduce a little bit height.

In the lab

This movement came in pretty good condition into the archive and got a simple service (cleaning, oil change) because of its age.

Timegrapher result

This 60 year old movement performs very well on the timegrapher.

horizontal positions
dial up +18 s/d 293° 1.5ms
dial down +6 s/d 309° 1.5ms
vertical positions
crown right (12 up) -10 s/d 252° 1.3ms
crown up (3 up) -1 s/d 293° 1.6ms
crown left (6 up) -7 s/d 275° 2.0ms
crown down (9 up) -24 s/d 285° 1.5ms

Technical data

Manufacturer:Förster
Caliber:60
Size:5 1/4''' (measured: 12,8 x 19,2mm)
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types: monometallic anular balance (two legs)
Shock protection(s): KIF Flector
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
References: Flume: K2 1962 29
Mentioning in literature (years): 1960 - 1964
Inventory number:22055

Usage gallery

Förster 60: Foresta ladies' watch

Foresta ladies' watch

This movement and watch is a kind donation from Lars Schröder to the movement archive. Thank you very much for your kind support!
