Hanhart 750

Description

The Hanhart 750 is a 19 ligne stop watch movement with a resolution of 1/10 second and a maximal timing size of 15 minutes.

Its three buttons allow additive timings.

Video on YouTube

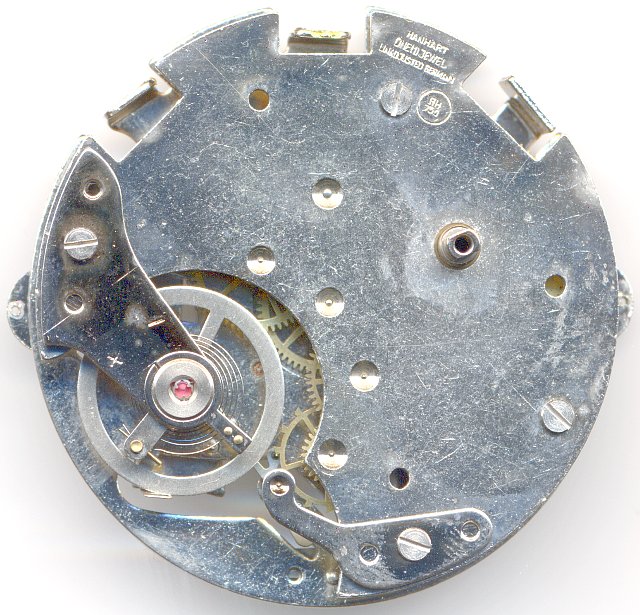

The ring balance is beared in two KIF Trior shock protection bearings (only on the movement side with a jewel) and beats with 36000 A/h. It controls a pin lever movement, where, unlike on standard pin lever movements, the fourth wheel is not driven by the escapement wheel, but by another wheel inbetween. Additionally, the fourth wheel with its center second hand makes two full revolutions per minute.

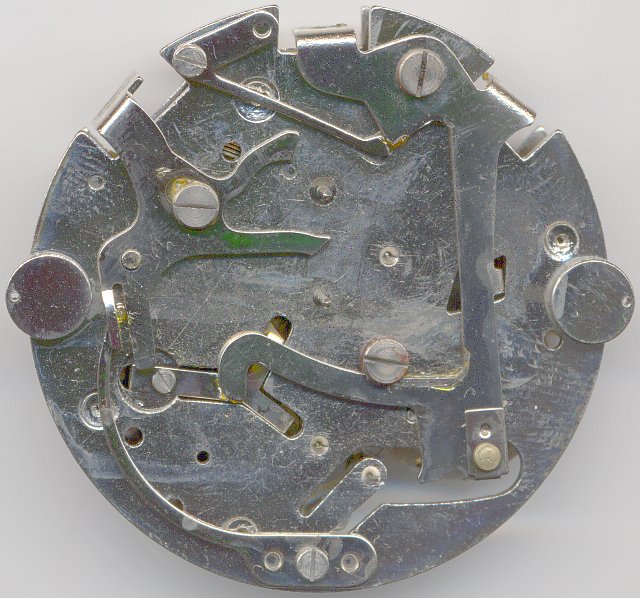

Hanhart 750: Hanhart 750 dial side

Hanhart 750 dial side

On the dial side, there’s a slotted lever shift, which is responsible for starting and stopping and another one for the resetting of the hands. On start/stop, the balance wheel is moved, so that a reliable start is guaranteed.

Technical data

Manufacturer:Hanhart
Caliber:750
Size:19'''
A/h:36000
Number of jewels:1
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): KIF Trior
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, center second pinion, seconds wheel, third wheel, center minute wheel, mainspring barrel
Construction type:pillar construction
Winding mechanism:special winding system
Features:
  • CHR (chronographe)

Usage gallery

Hanhart 750: Hanhart Amigo chronograph

Hanhart Amigo chronograph
