Parrenin 1901

Description

Video on YouTube

The french Parrenin 1901 is the only selfwindig movement of that manufactury and hence rare to find.

With a diameter of 11 12 lignes, it was used in mens’ watches, but had a big disadcantage: With a height of 7.9mm, it was way too thick to be used in high numbers.

movement view without oscillating weight

movement view without oscillating weight

The one-piece oscillating weight , whose diameter is identical to those of the movement, sits on a thin axle and is fixed by a cross-type leaf-spring. You can easily imagine, that this construction will wear out soon and make the oscillating weight tumbling at the case back or main plate.

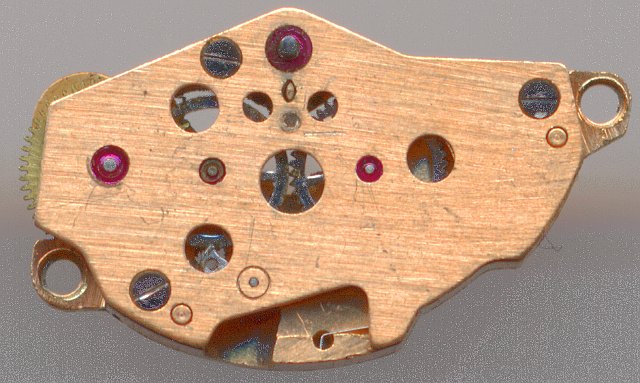

selfwinding mechanism, outside

selfwinding mechanism, outside

The oscillating weight winds in both directions via one mobile and two fixed gears. One of those two is blocked in one direction by a click.

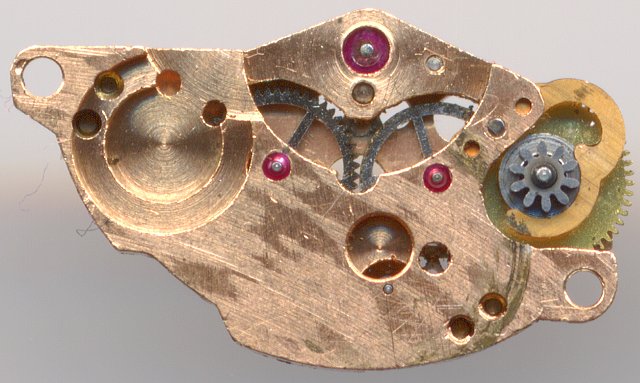

Automaticmechanismus, Unterseite

Automaticmechanismus, Unterseite

The rotor axle, the two gears and the driving wheel for the mainspring barrel are all beared in synthetic rubies.

selfwinding mechanism, Breguet clutch

selfwinding mechanism, Breguet clutch

To detach the selfwinding mechanism when winding the watch manually, the driving gear contains a vertical breguet clutch - effective, but high building.

movement view without selfwinding mechanism

movement view without selfwinding mechanism

The very thick movement contains a directly driven center second hand, which is located under a hat-shaped plate, together with the escapement wheel and third wheel.

The golden-toned screw balance is beared in two Incablock shock protection bearings. The hairspring is fix connected to the balance cock, its effective length can be regulated at the hairspring key only, despite the scale at the balance cock, which is more or less unused.

All gears are jewel-beared, escapment wheel and third wheel even have got a cap jewel on the movement side. In sum, this leads to 25 jewels.

side view

side view

On the side view, you see the enormous hight of the movement - even without selfwinding mechanism. Especially the arbor of the escapement wheel is longer than on almost any other movement.

Parrenin 1901 dial side

Parrenin 1901 dial side

This movement has got a date indication, on which the odd days are written in black, the even days in red. There’s no quickset mechanism.

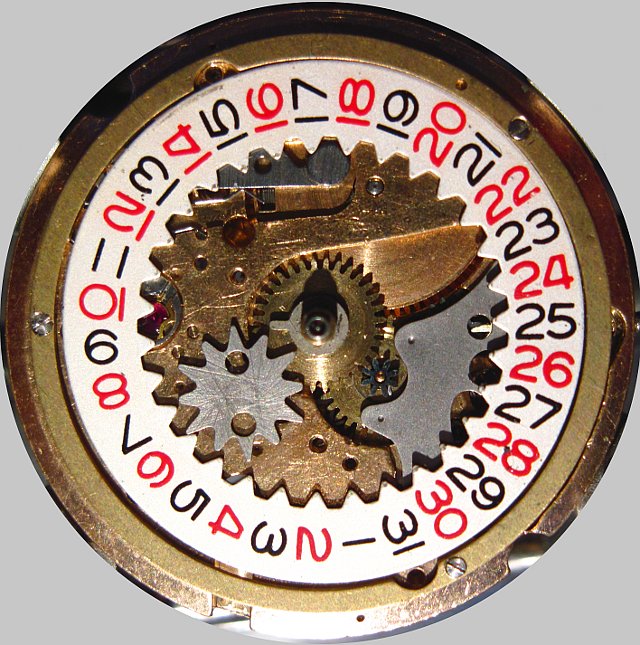

date mechanism

date mechanism

The date mechanism is constructed simply: The hour wheel has got a finger, which advances a star-shaped wheel every twice a day. Every second tooth of that gear is longer than the other one and connects to the date ring, advancing it one position.

At “12”, there’s a click spring, which assures, that the date switches properly.

dial side view without date mechanism

dial side view without date mechanism

On the dial side you see the yoke winding system (here with a broken setting lever spring) and the Incabloc shock protecion system.

In the lab

The tested specimen here came as loose movement, so it can be assumed, that it is not in a perfect condition. The timegrapher protol proves this:

Timegrapher result


crown right (12 up)

crown right (12 up)

crown up (3 up)

crown up (3 up)

crown left (6 up)

crown left (6 up)

crown down (9 up)

crown down (9 up)

dial up

dial up

dial down

dial down

Technical data

Manufacturer:Parrenin
Caliber:1901
Number of jewels:25
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Short regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Features:SCD,QG,AUT
Functions:hour, minute, second, day, selfwinding
A/h:18000
Size:11 1/2''' (measured: 26,0mm)
Literature: Flume: 1962 88
