H.F.Bauer 8 3/4

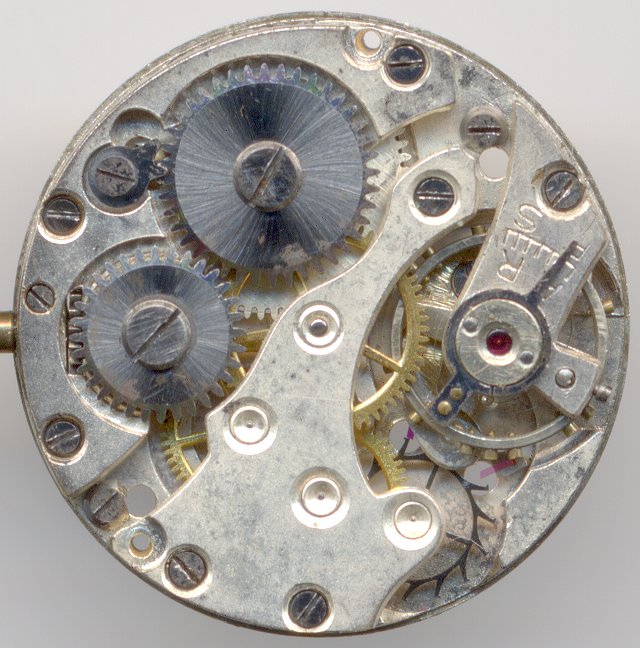

The unmarked 8 3/4 ligne caliber by H.F.Bauer gives the looks of an old pocket watch movement with its swinging brigdes and was probably made in the 1940ies or even earlier.

It has got a non-shock-protected balance with screws, which regulates a pallet anchor movement. The speciality of this movement is, that non of its axles, not even the escapement axle is beared in rubies, but they all run in metal bushings, which are pressed into the bridges and cocks.

On the dial side, you see the old “HFB” marking, the rest of this movement with yoke winding system is pretty much standard, the only noteable detail is the setting lever spring, which has got only two holes - a fact, which makes the identification, of the not further marked movement pretty easy.

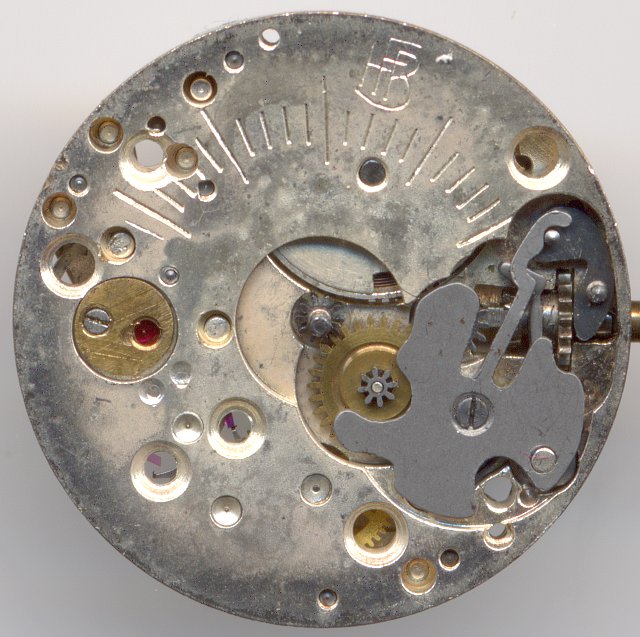

H.F.Bauer 8 3/4: H.F.Bauer 8 3/4 dial side

H.F.Bauer 8 3/4 dial side

Technical data

Manufacturer:Bauer H.F.
Caliber:8 3/4
Size:8 3/4'''
Number of jewels:7/15
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
References: Flume: 1947 18

Usage gallery

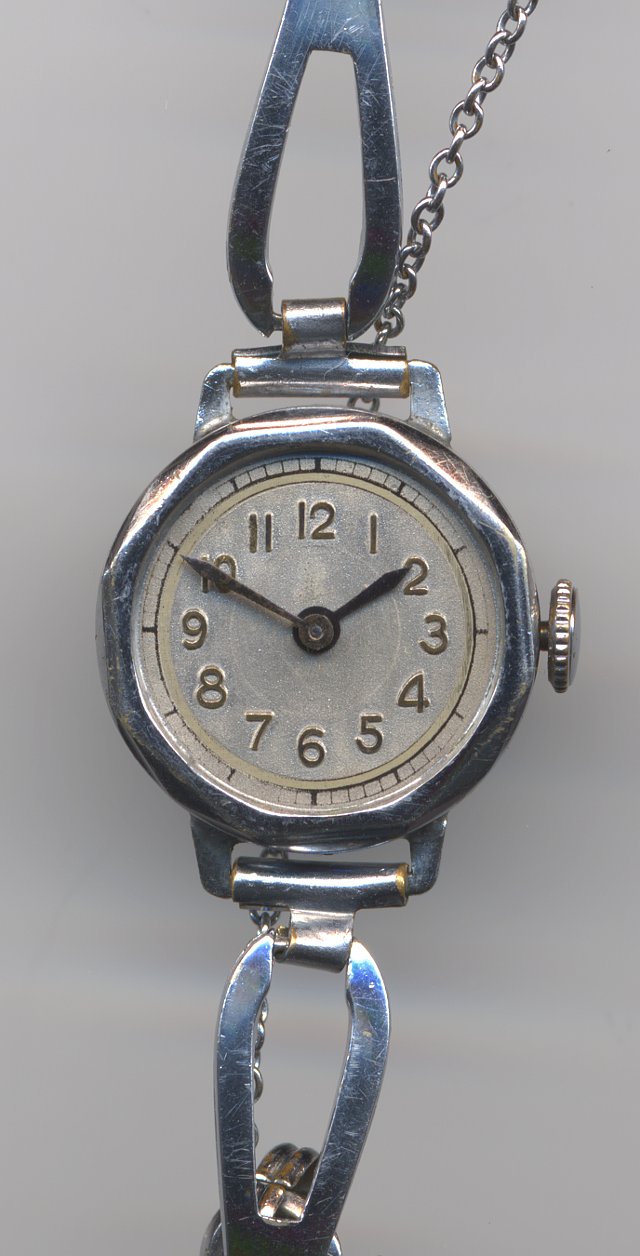

H.F.Bauer 8 3/4: unmarked ladies' watch

unmarked ladies' watch
