H.F.Bauer B568


Hard to believe, but in the 1950s movements with cylinder escapement were still produced, such as the Bauer B 568 shown here. This movement was launched in the late 1940s and had a modern look, mainly because of its geometric gear train bridge.

With a nominal size of only 5 1/2 lignes it was one of the smalled cylinder movements available and was ideal for the very popular tiny rectangular ladies' watches of that time.

H.F.Bauer B568: base plate

base plate

The execution is very well, all important bearings contain rubies, ten in total.

H.F.Bauer B568: gear train

gear train

The Bauer B 568 uses the classical gear train with a directly driven center minute wheel, third wheel, seconds wheel and steel cylinder wheel. The latter one is beared under its own cock.

H.F.Bauer B568: side view of the gear train

side view of the gear train

The three-leg anular balance is not yet shock protected. It beats with 18000 and can be adjusted (at least in theory, because these cylinder movements have daily deviations in the minute range) with a long regulator arm.

As escapement, a really outdated cylinder escapement was used.

H.F.Bauer B568: H.F.Bauer B 568: Dial side

H.F.Bauer B 568: Dial side

The dial side looks pretty modern in color and shape, and it even shows the yoke winding system.

Why Bauer released a cylinter movement in the late 1940s, at a time, where these movements were already hopelessly outdated, is unknown.

Technical data

Manufacturer:Bauer H.F.
Caliber:B 568
Size:5 1/4''' (measured: 12,9 x 19,2mm)
Number of jewels:10
Balance types: monometallic anular balance (three legs)
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
  • cylinder wheel
  • seconds wheel, third wheel, center minute wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
References: Feilner: 49 5368
Flume: K1 1952 40
Inventory number:22029

Usage gallery

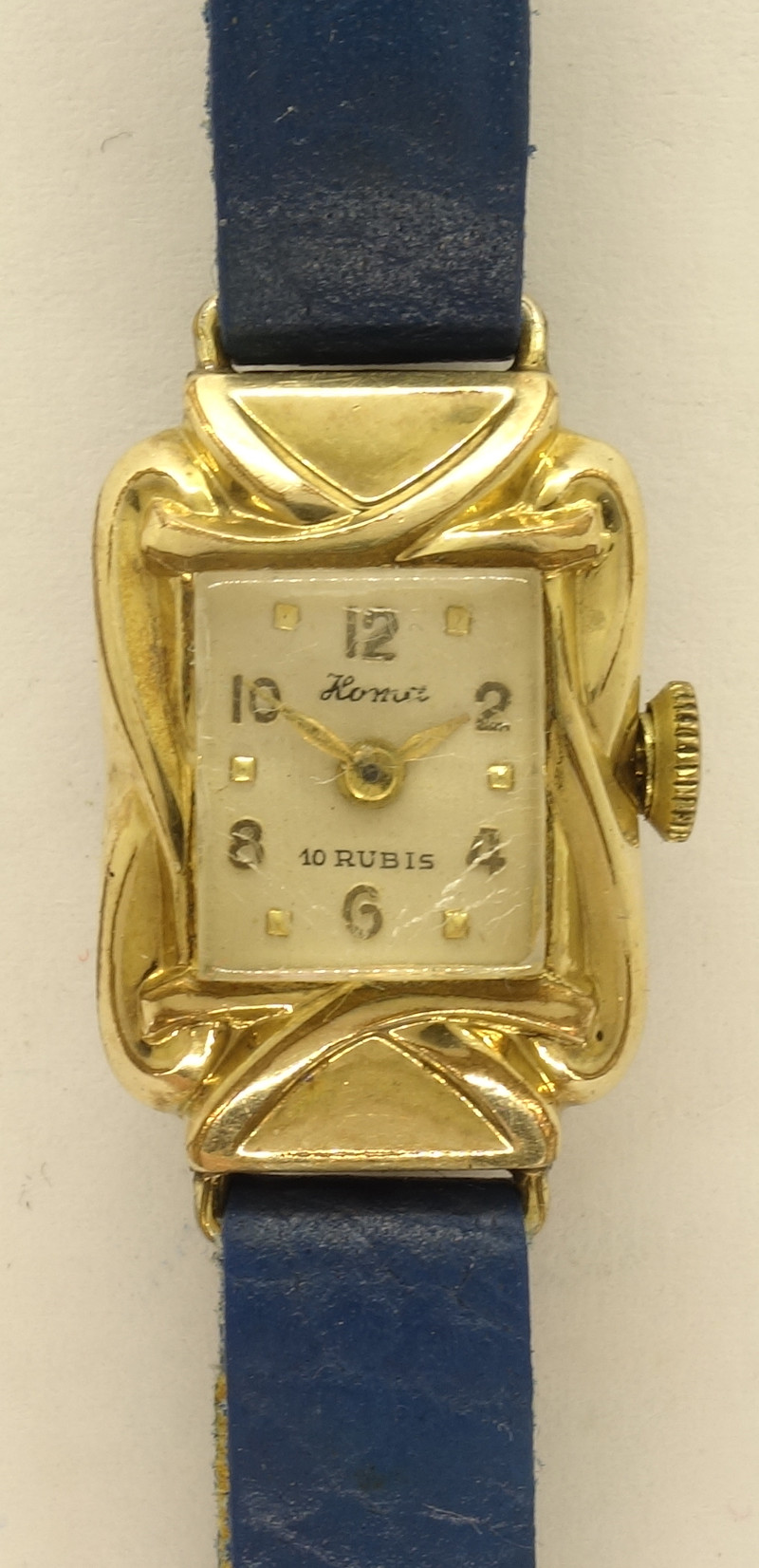

H.F.Bauer B568: Homa ladies' watch

Homa ladies' watch

This movement and watch is a kind donation from Prof. Peter Schmid to the movement archive. Thank you very much for your great support!
