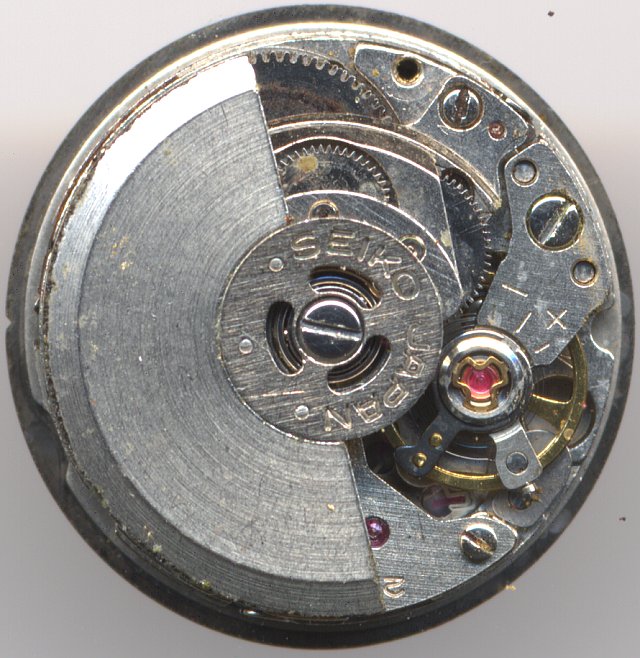

Seiko 2206A


Seiko 2206A

Seiko 2206A

Description

The Seiko 2206A is a technically interesting ladies’ watch movement from Japan.

The small, but rather fat selfwinding movement impresses by its features, since it can display hours, minutes and seconds as well, as day and weekday.

The mainspring is wound by a bidirectional turning rotor, which works on a rocking bar mechanism. The Glucydur balance of the 2206A beats with fast 28800 A/h and achieves a good precision.

An interesting detail of this movement is, that the center second hand is driven indirectly by gears below the selfwinding plate.

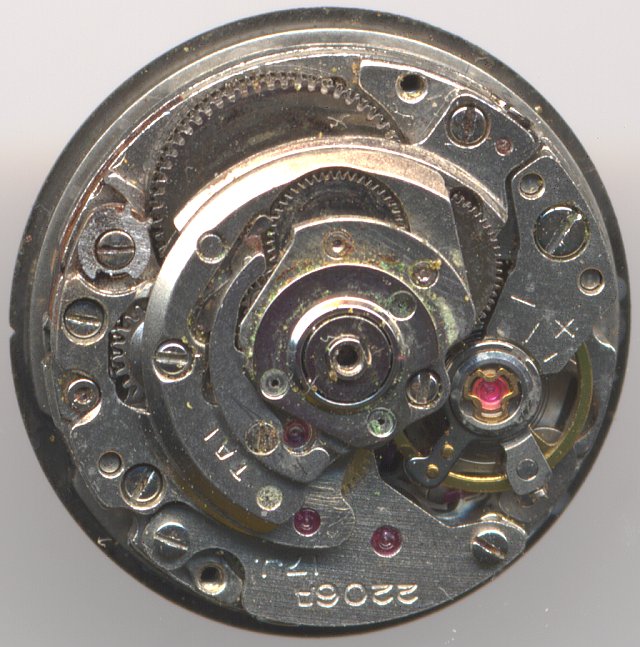

Seiko 2206A without oscillating weight

Seiko 2206A without oscillating weight

Day and date are advancing slowly, but can be adjusted quicky on the middle crown position.

Seiko 2206A dial side

Seiko 2206A dial side

Technical data

Manufacturer:Seiko
Caliber:2206A
Size:7 3/4'''
A/h:28800
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): Diashock (Seiko)
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Features:
  • SCI (indirect center seconds)
  • QG (date indication (aperture))
  • JG (weekday indication (aperture))
  • RDR (date corrector)
  • AUT (selfwinding)

Usage gallery

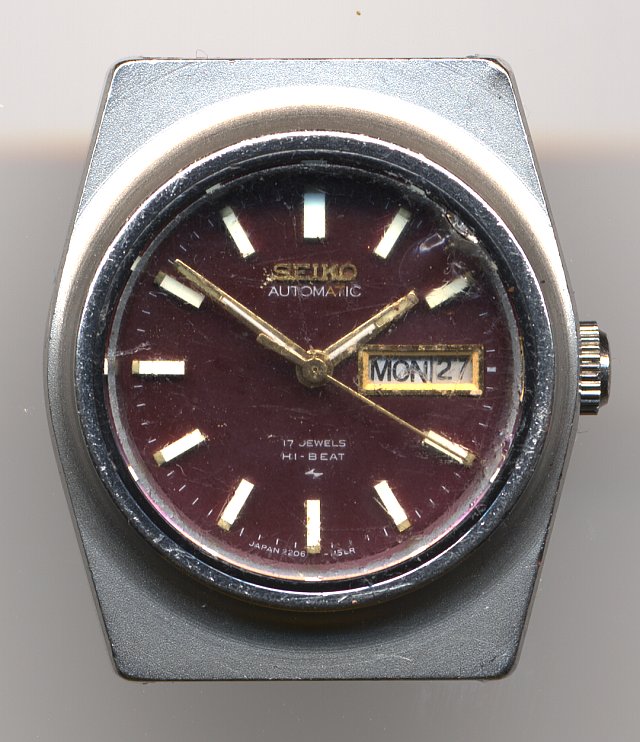

Seiko Automatic ladies' watch

Seiko Automatic ladies' watch
