unknown 11 1/2 ligne pallet lever movement

Description

This 11 1/2 ligne pallet lever movement of pretty high quality probably dates from around 1900, far before the first movement finders were printed, and thus could not be identified.

unknown 11 1/2 ligne pallet lever movement: base plate

base plate

Its high quality can be seen everywhere, so for example all important bearings contain rubies, and the banking pins for the lever could be adjusted.

unknown 11 1/2 ligne pallet lever movement: gear train

gear train

We have the common gear train with mainspring barrel, center minute wheel, third wheel, seconds wheel (on the opposite position of the stem) and steel escape wheel.

unknown 11 1/2 ligne pallet lever movement: side view of the gear train

side view of the gear train

As balance, a beautiful bimetal screw balance is used. It has a Breguet hairspring attached, whose effective length can be regulared with nice and fine regulator arm. Another beautiful detail is the steel bridge, which bears the pallet lever axle.

Of course, this movement beats with the usual 18000 A/h.

unknown 11 1/2 ligne pallet lever movement: inside mainspring barrel brige

inside mainspring barrel brige

The crown wheel of this movement is beared and located on the inner side of the barrel bridge, as well, as the ratchet wheel. The ratchet, which is located on the side of the bridge, has got a spring on the inner side of the barrel bridge.

unknown 11 1/2 ligne pallet lever movement: dial side

dial side

On the dial side, there’s nothing really special to see, maybe only the yoke keyless works, which can be switched by a pin just above the winding stem.

Technical data

Manufacturer:unknown
Caliber:11 1/2
Size:11 1/2''' (measured: 25,75mm)
A/h:18000
Number of jewels:15
Escapement:Pallet lever
Balance types: bimetallic screw balance (two legs)
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel
  • seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Attachment of setting lever:screwed
Inventory number:23009

Usage gallery

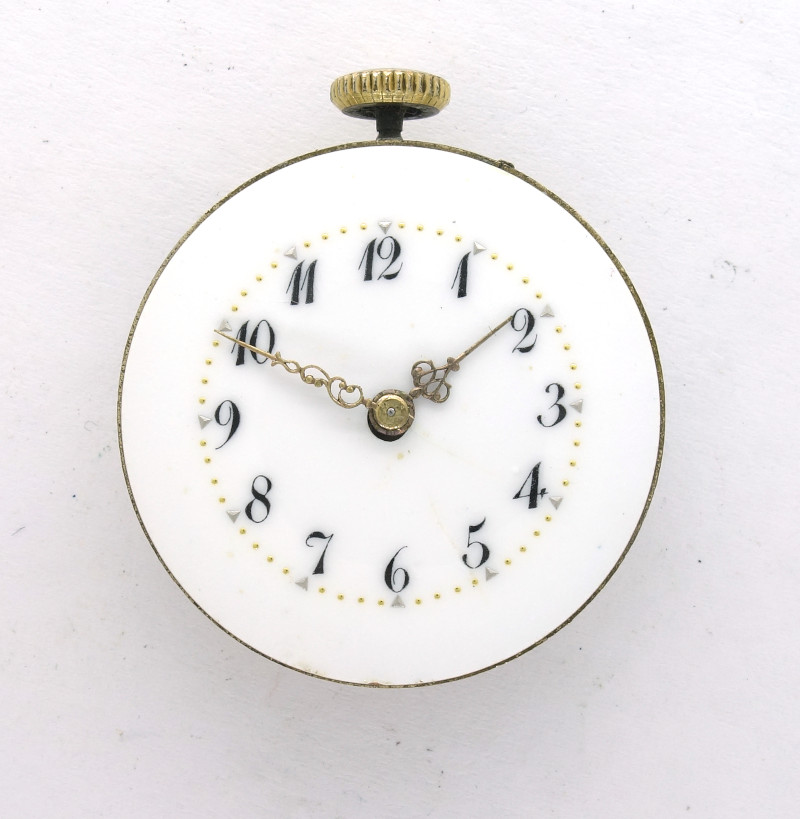

unknown 11 1/2 ligne pallet lever movement: anonymous pendant watch  (case missing)

anonymous pendant watch (case missing)
