AM 575


sdfsdf

AM 575

Description

This is another movement from the Adolf Michel S.A. under the roof of the Ebauches Trust organization. It is not marked any further, except the two letters “JF” below the balance. The Flume Werksucher from 1947 identifies it as AM 575.

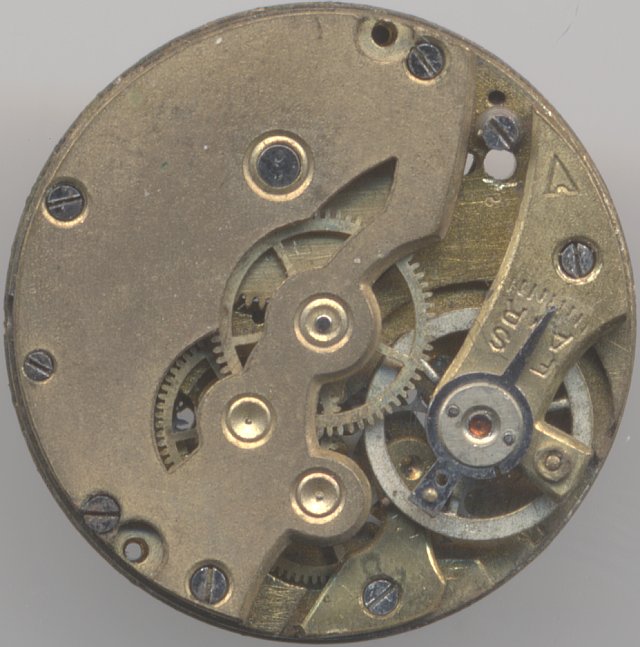

It is a very simple cylinder movement with only one jewel on the balance cock. On the dial side, there is a rocking bar winding mechanism, and the ratched wheel is only safed by a spring.

Nevertheless, watches with those kind of movements were worn for many years, you only should’t pay too much attention to precision and reliability.

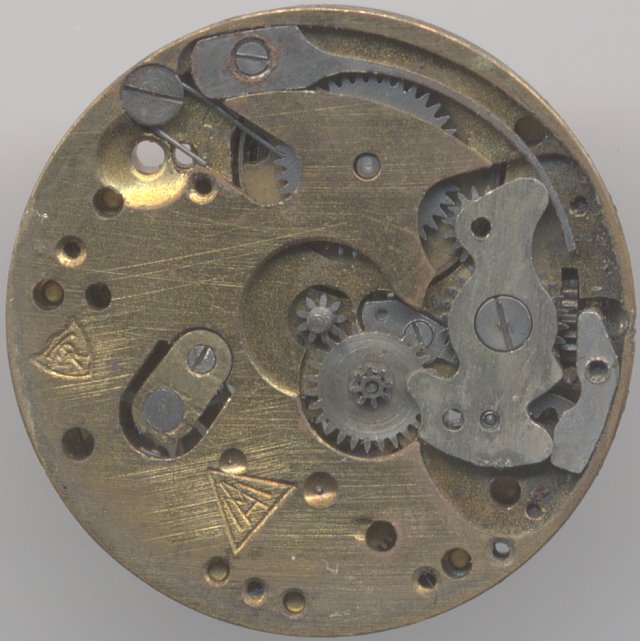

AM 575 dial side

AM 575 dial side


Technical data

Manufacturer:AM
Caliber:575
Number of jewels:1
Escapement:Cylinder
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • escape wheel
  • seconds wheel, third wheel, center minute wheel, mainspring barrel
Functions:hour, minute
A/h:18000
Size:8 3/4'''
Literature: Flume: 1947 98

Usage gallery

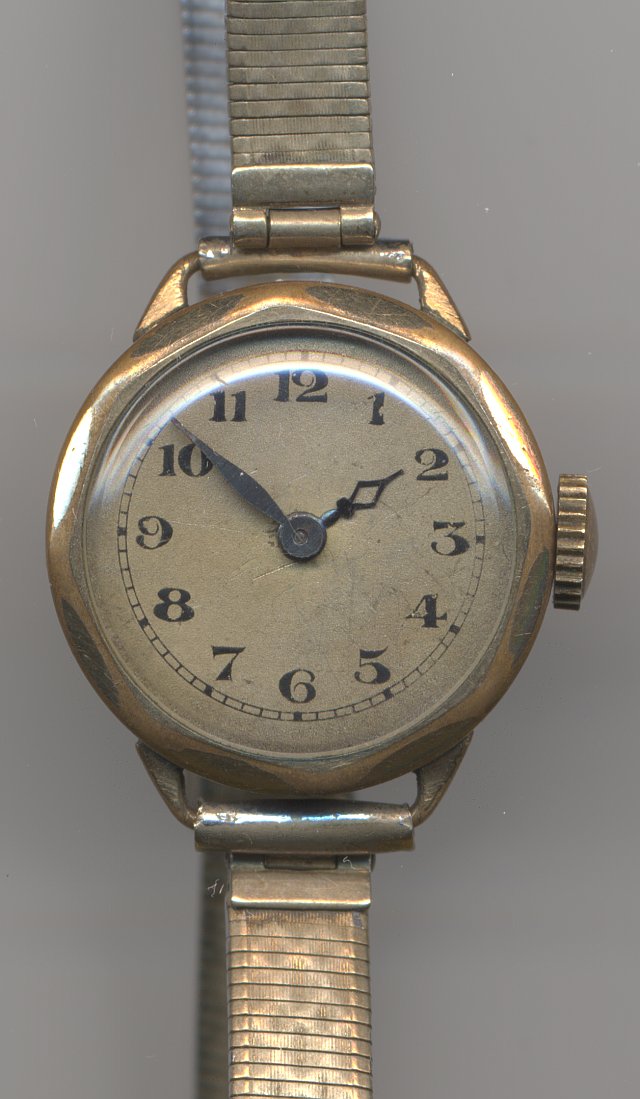

Anonyme Damenuhr

Anonyme Damenuhr
