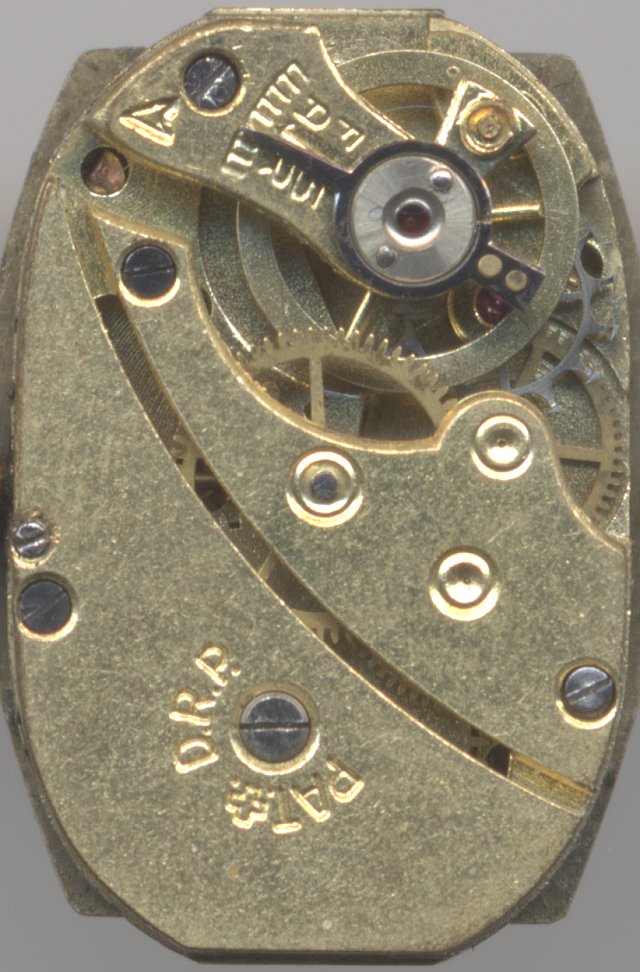

AM 74

AM 74 | - The Movement Archive

AM 74


The Ebauches Trust (also known as Ebauches S.A.) was from the 1920ies on a roof organization of several ebauche manufactureres, among them the Adolf Michel S.A. (AM) of Grenchen/Switzerland. They made that caliber 74, a form caliber in ladies' size with a cylinder escapement.

With 6 jewels and a brass balance, it reselbes the state of the art of pre WW II: Not ultimately precise, but pretty small and reliable. Nevertheless, the high time of those tiny cylinder movements did not last very long, since equally small, but much more precise and reliable anchor movements took over.

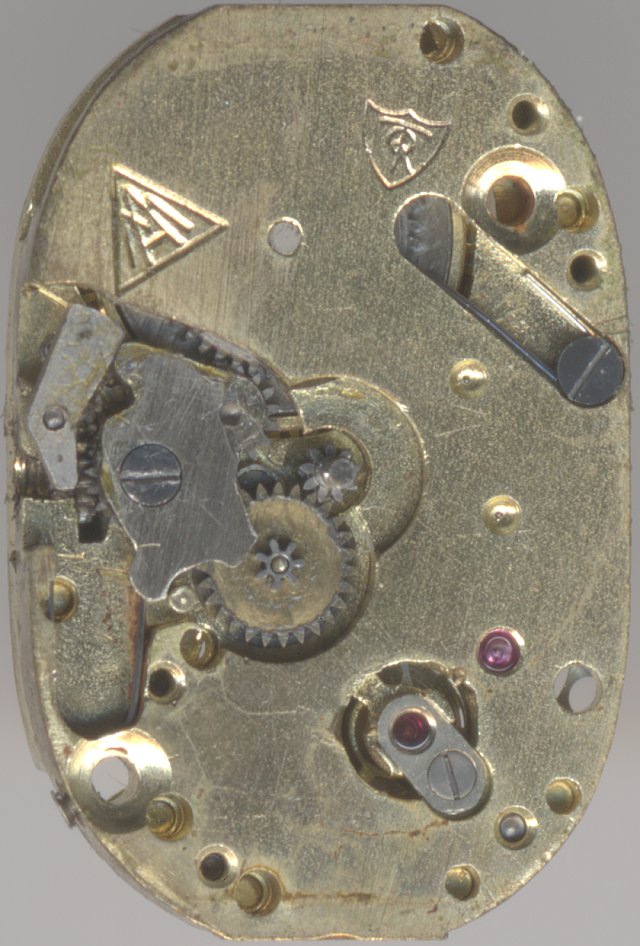

AM 74: AM 74: Dial side view

AM 74: Dial side view

Technical data

Size:5 3/4 x 8 3/4'''
Number of jewels:6
Balance types: monometallic anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
  • escape wheel
  • seconds wheel, third wheel, center minute wheel
  • mainspring barrel
References: Flume: 1947 146

Usage gallery

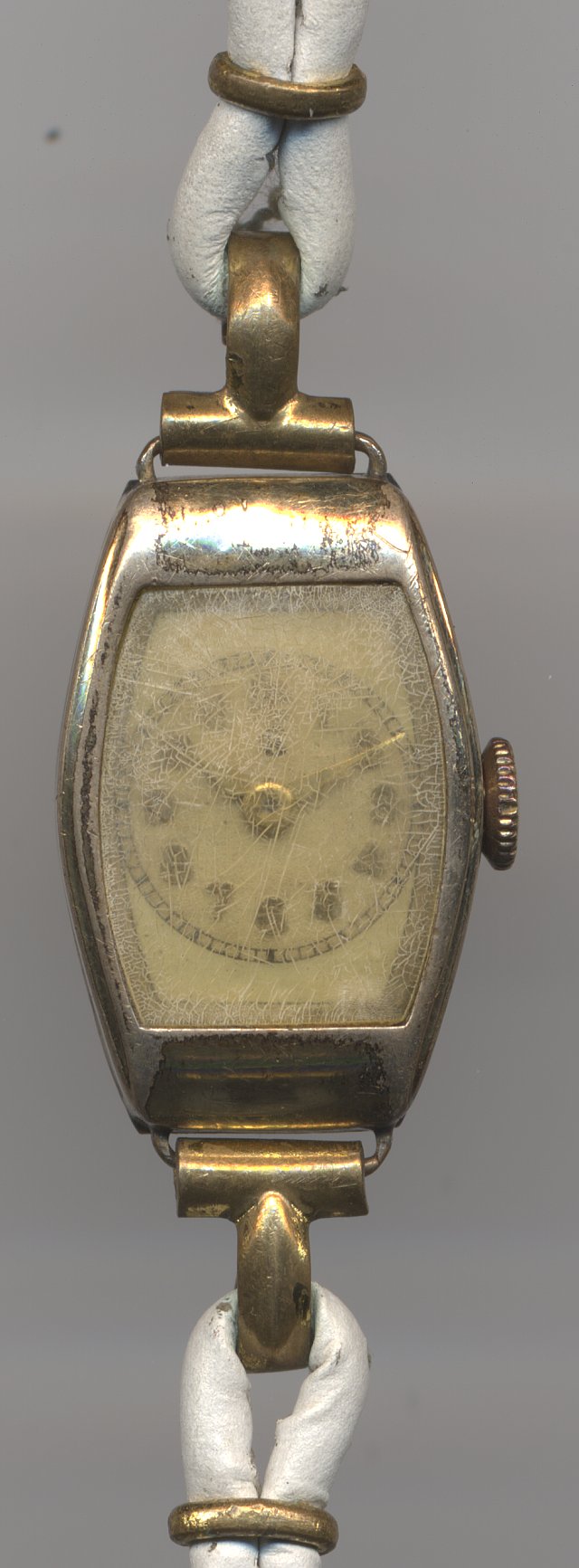

AM 74: CR ladies' watch

CR ladies' watch

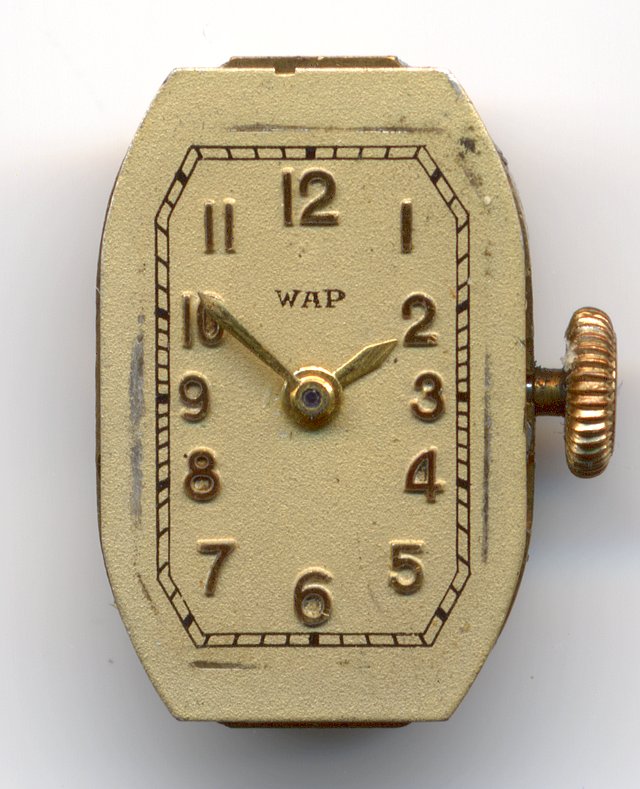

AM 74: WAP ladies' watch

WAP ladies' watch

Other movements from AM
