Bifora 113

Description

The Bifora Caliber 113 is a rather modern constructed movement, compared with other popular Bifora movements. It contains a directly driven center second hand.

An interesting fact is, that it is constructed very compact, so that not all the available space is used. You can easily see this on the triangle of the jewels of the anchor wheel, center wheel and intermediate wheel. It uses really very few space.

The only large thing on this movement is the two-leg ring balance. Together with its very long regulator arm, it helps achieving a good precision. Whether the dome-shaped pallets improve the accurancy over normally shaped pallets is unknown.

On the dial side, there’s only a rocking bar winding mechanism. Fortunately it is very well constructed.

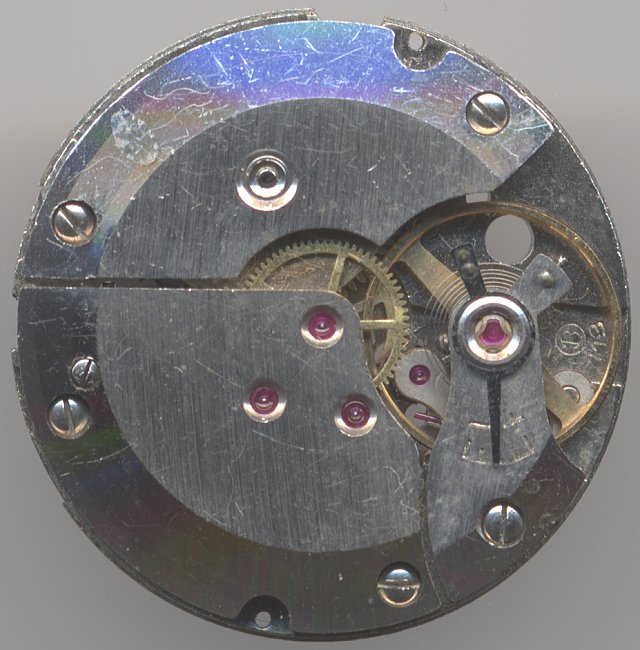

base plate

base plate

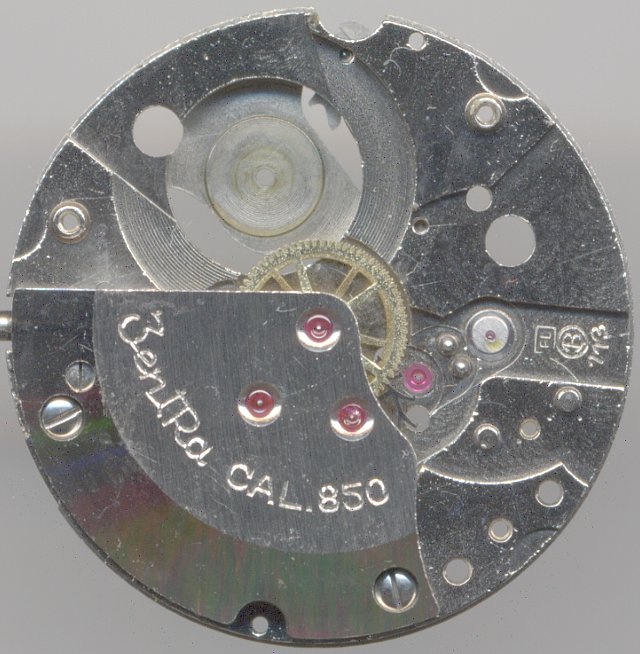

gear train

gear train

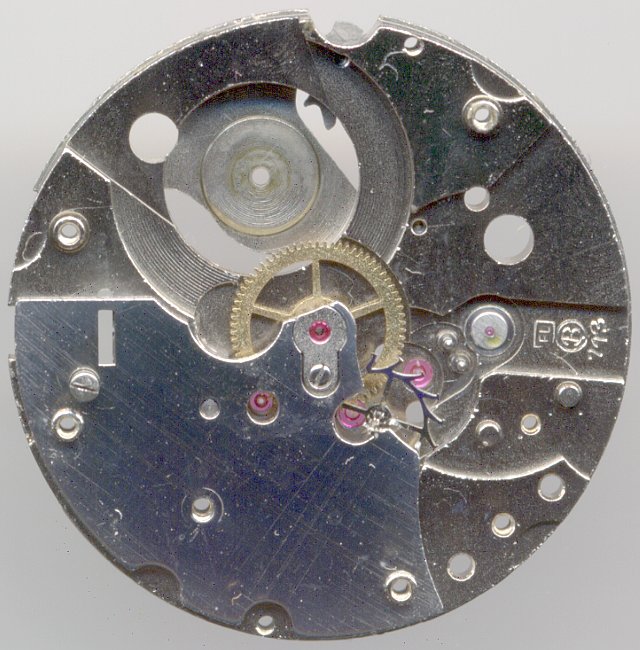

intermediate plate

intermediate plate

Bifora 113 without balance staff

Bifora 113 without balance staff

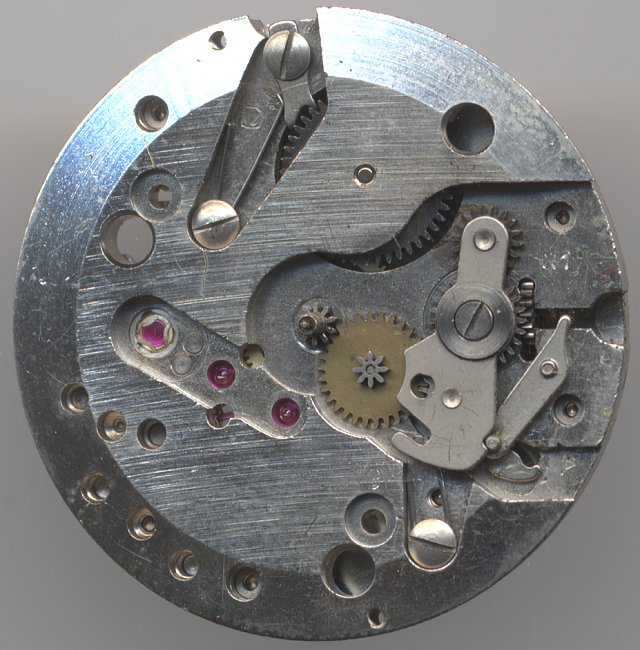

Bifora 113 dial side

Bifora 113 dial side

Technical data

Manufacturer:Bifora
Caliber:113
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Bidlingmaier (Bifora)
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:4 hole(s)
Features:SCD
Functions:hour, minute, second
A/h:18000
Size:11 1/2'''
Production period:1955 - 1962
Literature: Flume: 1962 16

Usage gallery

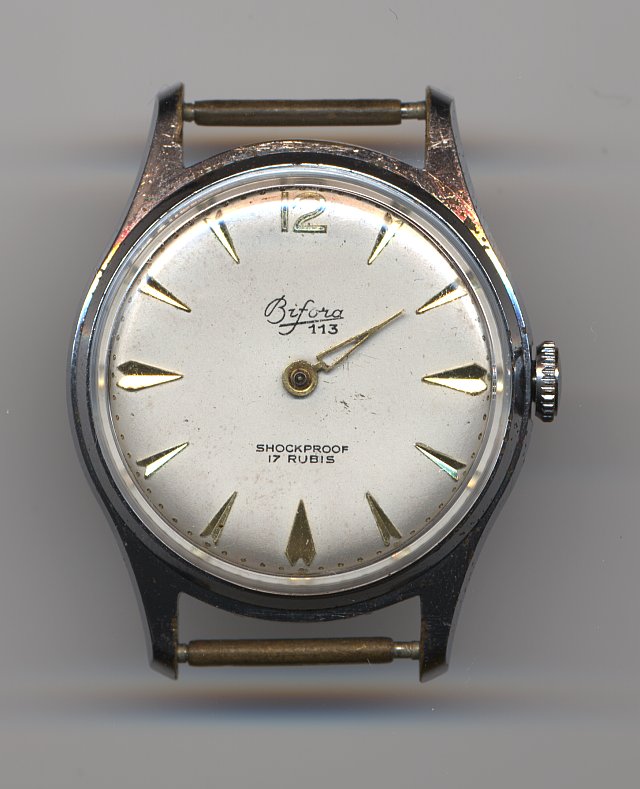

Bifora 113 mens' watch

Bifora 113 mens' watch
