Citizen 5330A

Description

The Citizen 5330A is a direct relative to the caliber 2340A is seen only on very few movements, and so, the 5330A is a little speciality.

Some of the numbers on the date ring are so tiny, that they can’t be identified with pure eyes. But to use the available space of the date window as optimal as possible, the numbers differ in their size. Mainly, when one of the digits is a “1”, the other digit is printed very wide.

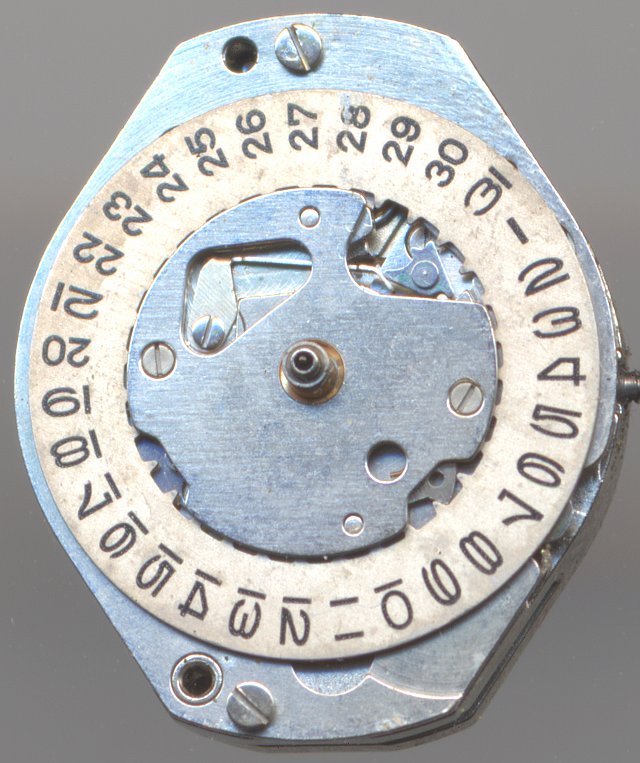

Citizen 5330A: Citizen 5330A dial side

Citizen 5330A dial side

Technical data

Manufacturer:Citizen
Caliber:5330A
Size:6 3/4 x 8'''
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): Parashock 3 (Citizen)
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • third wheel, center second pinion
  • mainspring barrel
Features:
  • SCI (indirect center seconds)
  • QG (date indication (aperture))
  • RDR (date corrector)

Usage gallery

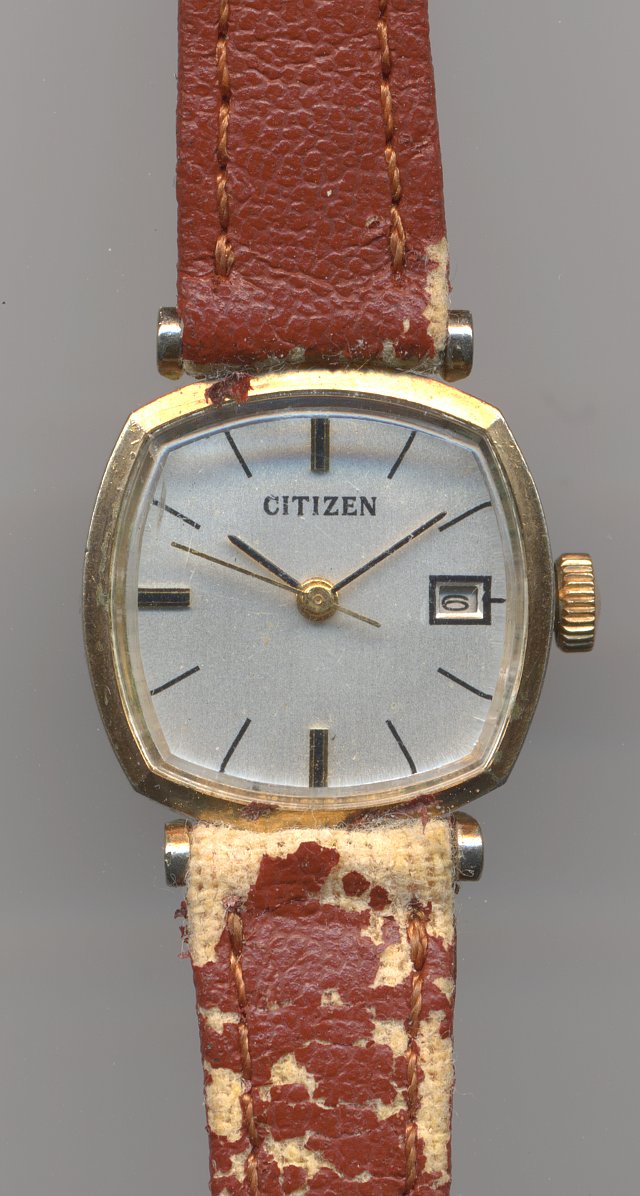

Citizen 5330A: Citizen ladies' watch

Citizen ladies' watch
