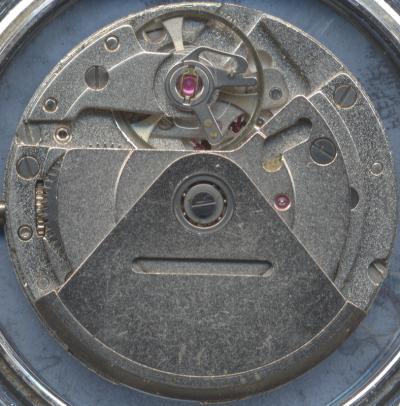

GUB 11-26

Description

Everbody knows the Spezimatic movements from Glashütte, but not many people know its successor, the Spezichon caliber, which was produced between 1978 and 1985 only a few 100.000 times. With 28.800 bph and its rather small size, it was compareable to the popular swiss movements of that time. The most noteable difference was the sound of the selfwinding mechanism, which was by far more pleasant, than the sound of other more populuar movements. The drawback was, that the 11-26 is lacking a finetuning mechanism.
If the sources are correct, then the 11-26 was reworked after the end of its production and was revived as caliber 10-30 in 1993. And, as everybody knows, the 10-30 was pretty much reworked, too, and was the base for the Glashütte-Original Caliber 10-39. (Source: http://www.thepurists.com/brandjpg/go/calibers/cal39.html)

GUB 11-26: different view

different view

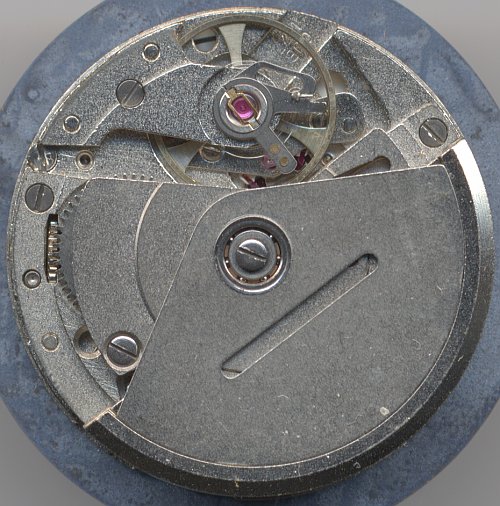

GUB 11-26: different oscillating weight

different oscillating weight

Technical data

Manufacturer:GUB
Caliber:11-26
Size:11 1/2'''
A/h:28800
Number of jewels:22
Escapement:Pallet lever
Shock protection(s): GUB (Glashütter Uhrenbetrieb)
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Features:
  • SCD (direct center seconds)
  • AUT (selfwinding)
  • QG (date indication (aperture))
  • RDR (date corrector)
Production period:1978-1985
