HPP 6031


In the 1940ies and 50ies, Henzi & Pfaff of Pforzheim, Germany produced a number of rather cheap watches. The caliber 6031 is among the last ones of them. It is a simple pier movement with a swiss pallet anchor lever (which was advertised on the dial to remind of a “Swiss” watch).

The HPP 6031 uses a simple ring balance, which is beared in two inhouse “Supershock HPP” shock protections. Nevertheless, even these protections cannot help against very hard shocks, and such a shock broke the balance axle on the watch shown here.

The movement drives the hands indirectly by the mainspring, while the minute wheel is located decentrally and the center second hand is driven indirectly. Many gears run in cap jewels, which allowes the marketing-relevant statement of “21 Jewels” on the dial.

The date is centered by a simple, but effective mechanism and switches slowly. It cannot be corrected in a faster way.

On the dial side, there’s a yoke winding mechanism - a feature, which is normally found in better watches only.

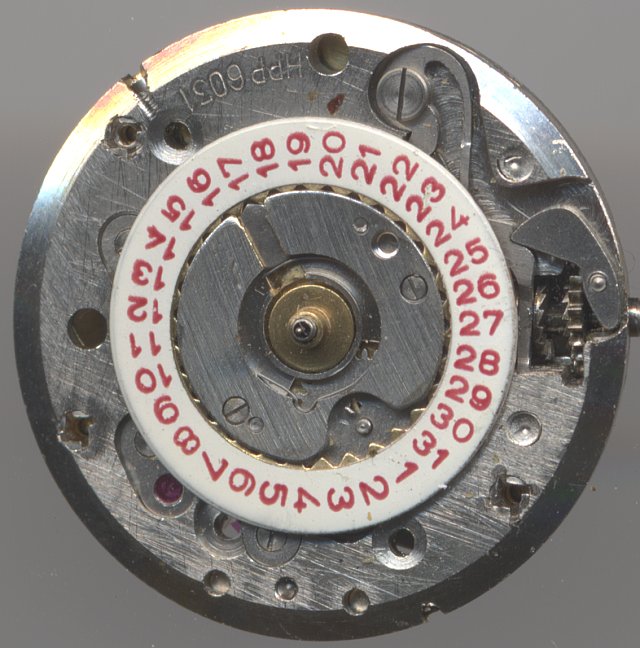

HPP 6031: HPP 6031 dial side

HPP 6031 dial side

HPP 6031: dial side view, without date mechanism

dial side view, without date mechanism

Technical data

Size:10 1/2'''
Number of jewels:21
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Hercules (Henzi & Pfaff)
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
  • lever
  • escape wheel, seconds wheel, third wheel, mainspring barrel
  • center second pinion
Construction type:pillar construction
Winding mechanism:yoke winding system
  • SCI (indirect center seconds)
  • QG (date indication (aperture))
References: Flume: 1958 34

Usage gallery

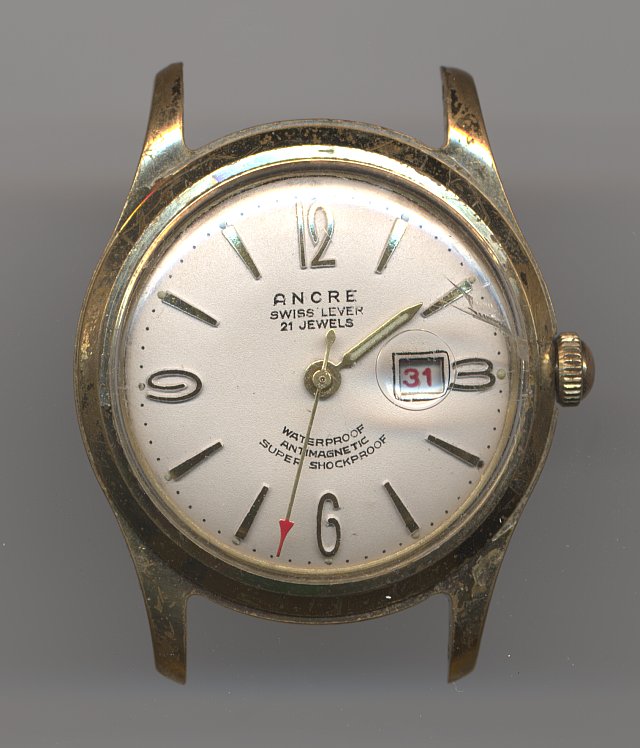

HPP 6031: Ancre "Swiss Lever" gents watch

Ancre "Swiss Lever" gents watch
